Circuit Test G - Code 23, Open Circuit In Rear SAFING Impact Sensor Feed Circuit

NOTE: Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . After repairs are performed, recheck AIR BAG warning light for other fault codes. Perform system operation check. See TESTING - SYSTEM OPERATION CHECK .

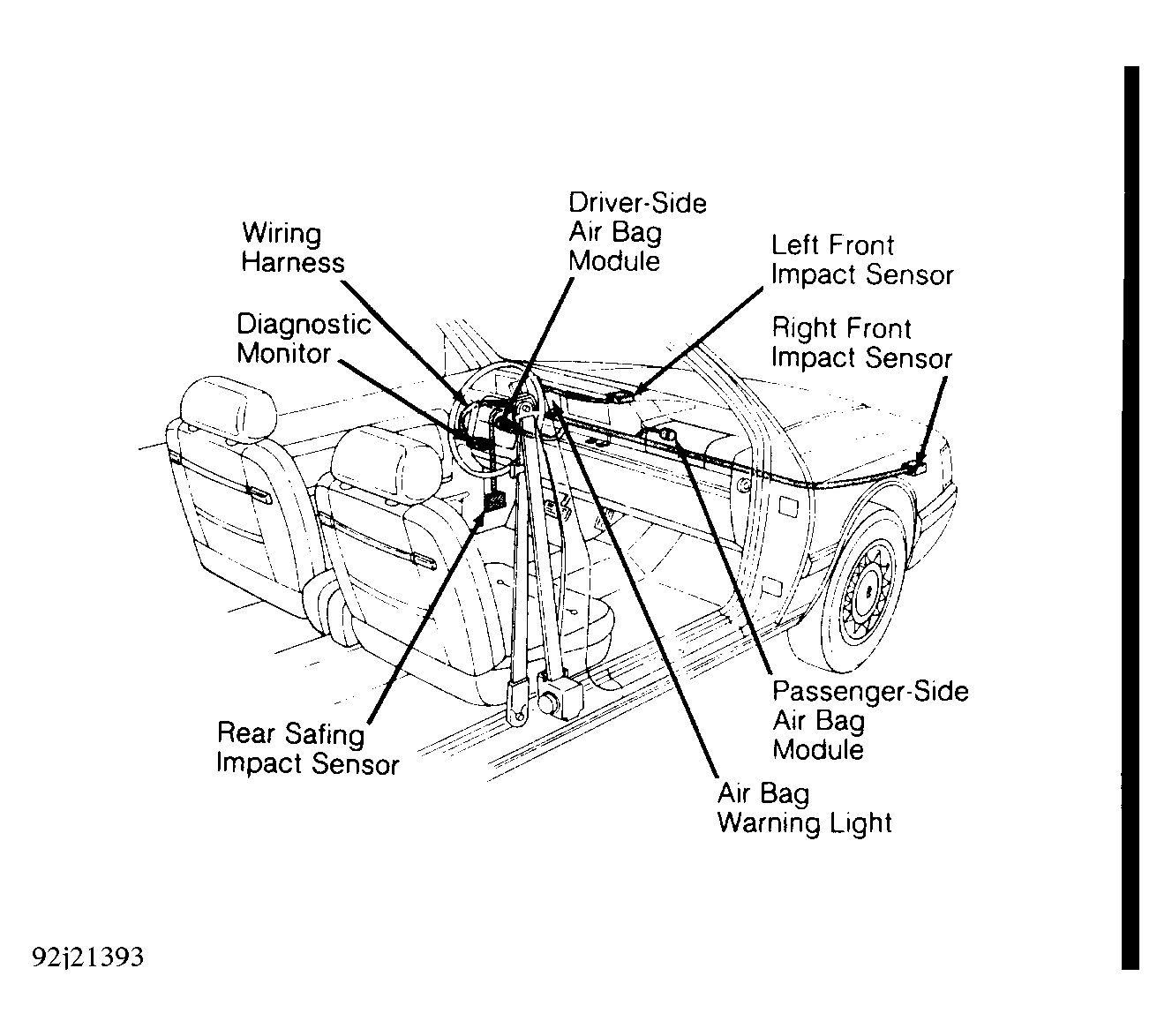

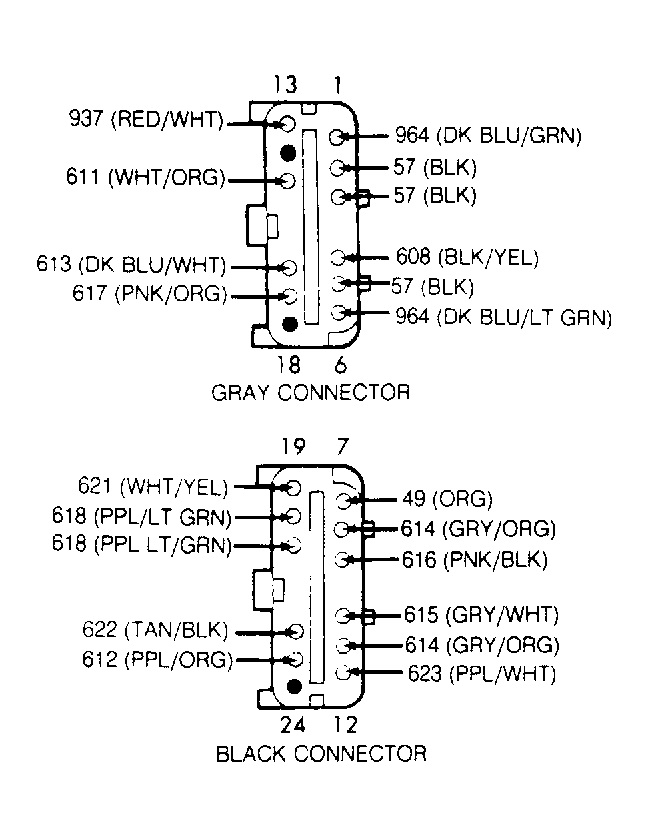

INITIAL TEST PROCEDURE - Deactivate SRS. See COMPLETE SYSTEM DEACTIVATION under DISABLING & ACTIVATING AIR BAG SYSTEM. Disconnect diagnostic monitor connectors. See Figure . Using an ohmmeter, check resistance between terminals No. 15 (White/Orange wire) of diagnostic monitor Gray connector and 23 (Purple/Orange wire) or diagnostic monitor Black connector. See Figure . If resistance is more than one ohm, go to step 2). If resistance is less than one ohm, replace diagnostic monitor. When repairs are complete, check AIR BAG warning light for codes with Air Bag Simulator(s) (105-00008) still in place of air bag module(s). See TESTING - SYSTEM OPERATION CHECK . If system checks okay, reactivate SRS.
VERIFY INOPERATIVE REAR SAFING IMPACT SENSOR - Disconnect rear safing impact sensor connector. See Figure . Check resistance between circuits No. 611 (White/Orange wire) and 612 (Purple/Orange wire). If resistance is less than one ohm, locate and repair open in circuit No. 611 (White/Orange wire) and/or 612 (Purple/Orange wire). Reconnect diagnostic monitor and rear safing impact sensor connectors. When repairs are complete, check AIR BAG warning light for codes with Air Bag Simulator(s) (105-00008) still in place of air bag module(s). See TESTING - SYSTEM OPERATION CHECK . If system checks okay, reactivate SRS. If resistance is more than one ohm, replace rear safing impact sensor. Reconnect diagnostic monitor and rear safing impact sensor connectors. When repairs are complete, check AIR BAG warning light for codes with Air Bag Simulator(s) (105-00008) still in place of air bag module(s). See TESTING - SYSTEM OPERATION CHECK . If system checks okay, reactivate SRS.
