Intake Manifold: Removal

WARNING: This page is about a different car, the 1992 Mercury Tracer, 1992 Ford Escort, 1991 Mercury Tracer, and 1991 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure and disconnect fuel lines. See, in this article, FUEL PRESSURE RELEASE & FUEL LINE CONNECTIONS . Remove hood. Disconnect negative battery cable.
  2. Remove air intake tube from throttle body. Disconnect fuel injector wiring harness at connector at right shock tower. Disconnect cam position sensor and crank angle sensor.
    NOTE: Crank angle sensor is located on front of engine. Cam position sensor is located behind intake manifold, at rear of cylinder head. See Fig 1.

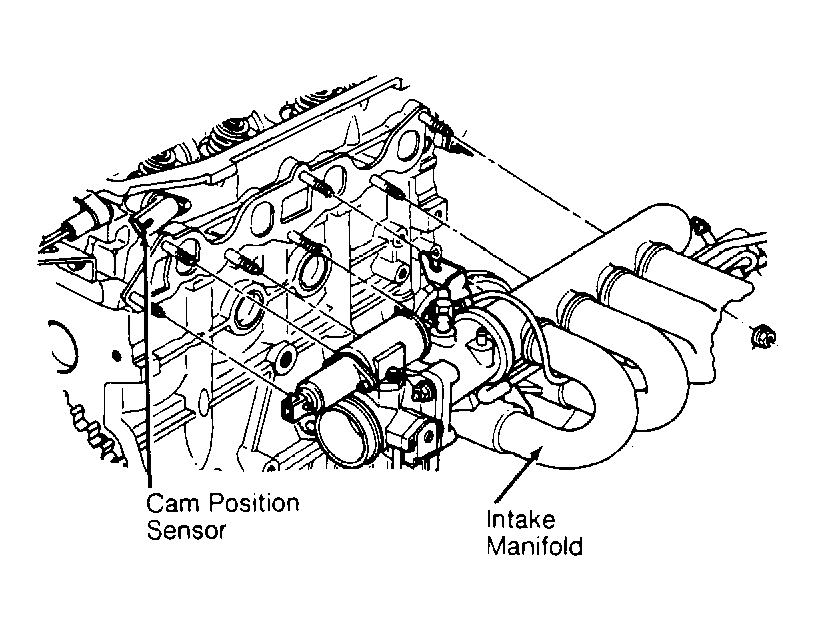

    Fig 1: Exploded View of Intake Manifold
    G91B07177Courtesy of FORD MOTOR CO.
  3. Partially drain cooling system. Disconnect control cables from throttle body. Remove accelerator cable bracket from intake manifold.
  4. Disconnect necessary electrical connections and vacuum hoses. Remove retaining nuts, intake manifold and gasket.
