Water Pump: Removal

WARNING: This page is about a different car, the 1992 Mercury Tracer, 1992 Ford Escort, 1991 Mercury Tracer, and 1991 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Drain cooling system. Remove accessory drive belt and automatic tensioner. Remove timing belt. See TIMING BELT  in this article.
  2. Raise and support vehicle. Disconnect coolant hoses from water pump. Lower vehicle. Support engine with jack. Remove engine mount at timing belt end of engine if not previously removed.
  3. Remove water pump retaining bolts. See Fig 1. Slightly raise engine and remove water pump and gasket.

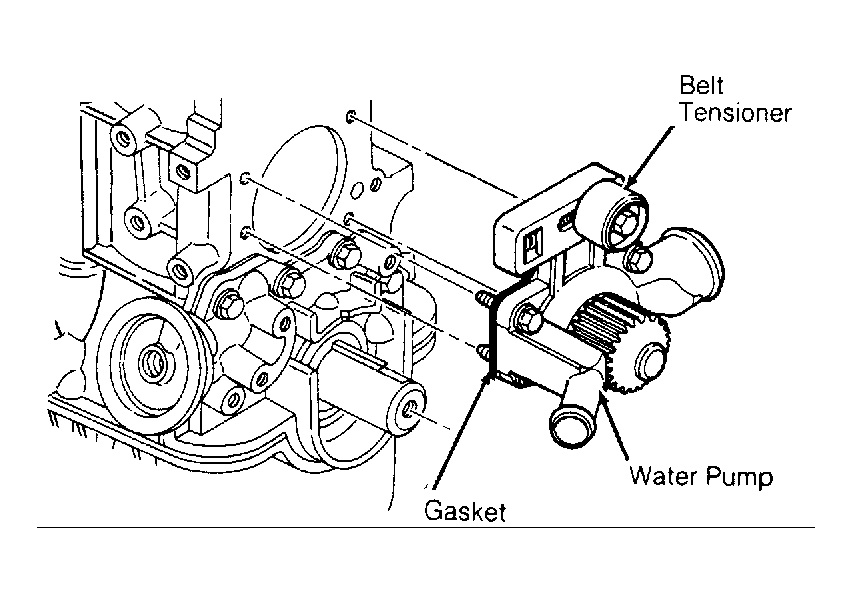

Fig 1: Exploded View of Water Pump
G91D07183Courtesy of FORD MOTOR CO.
