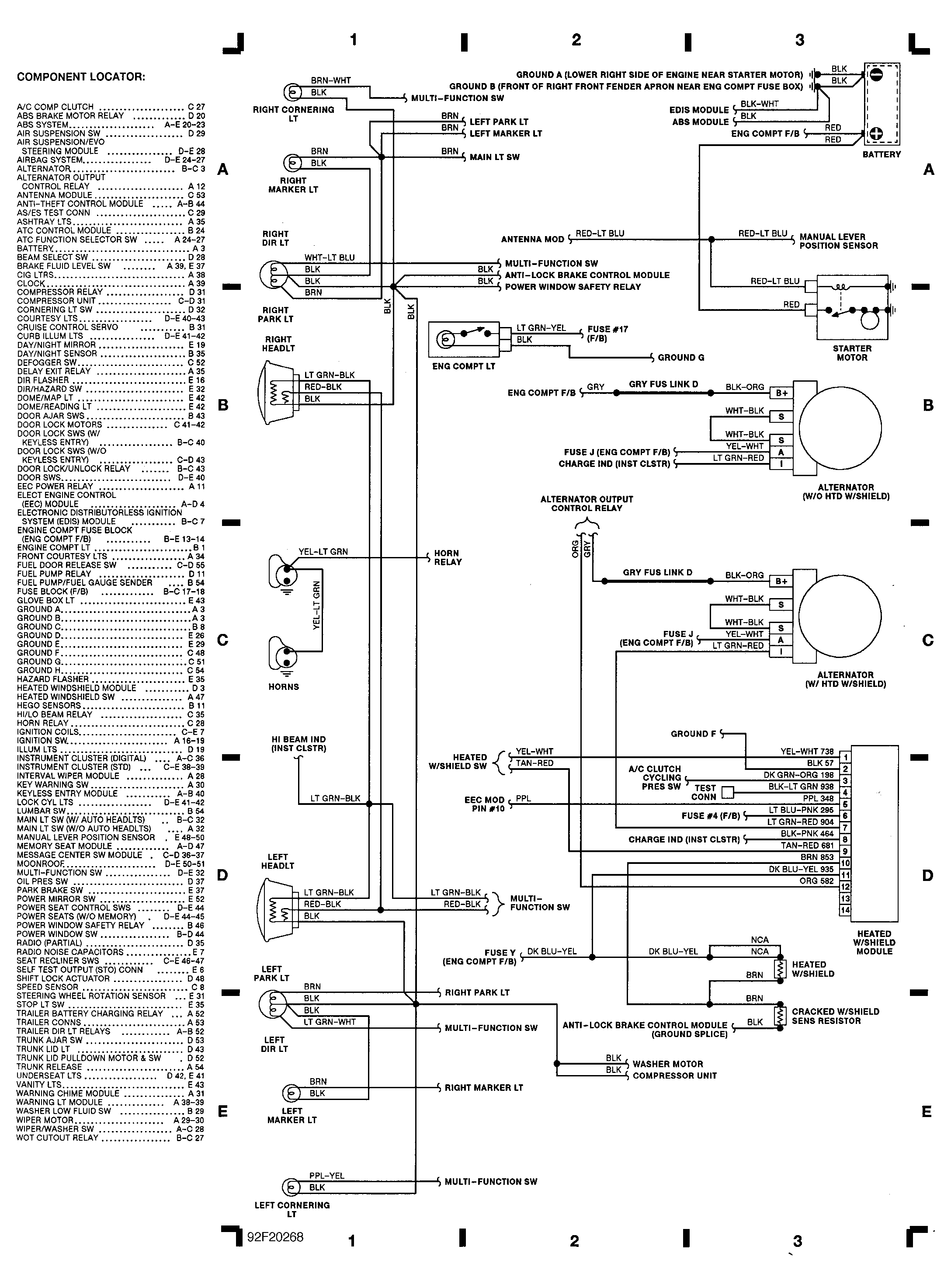

Fig 1: Engine Compartment & Headlights (Grid 1-3)

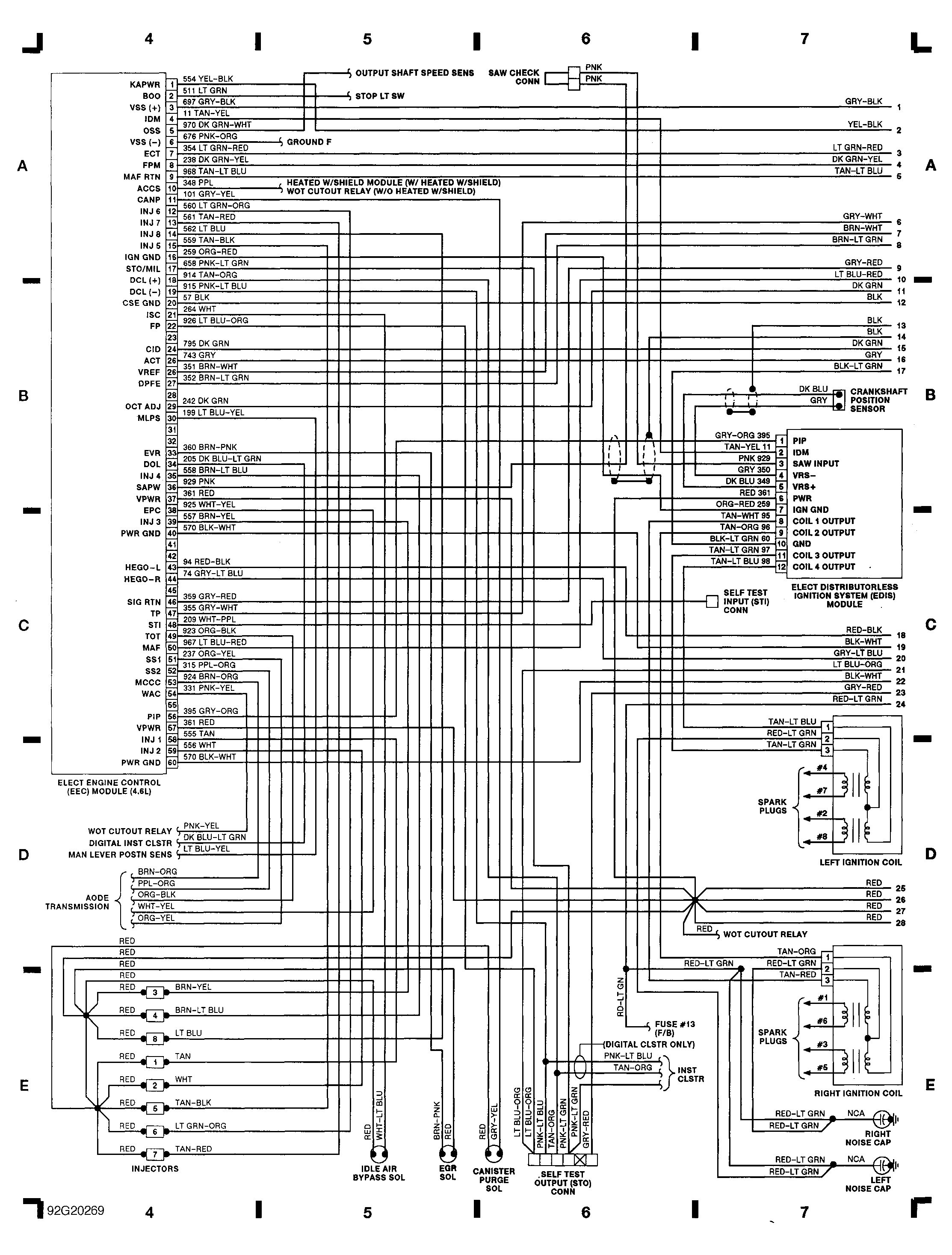

Fig 2: Elect Engine Control (EEC) (4.6L) (Grid 4-7)

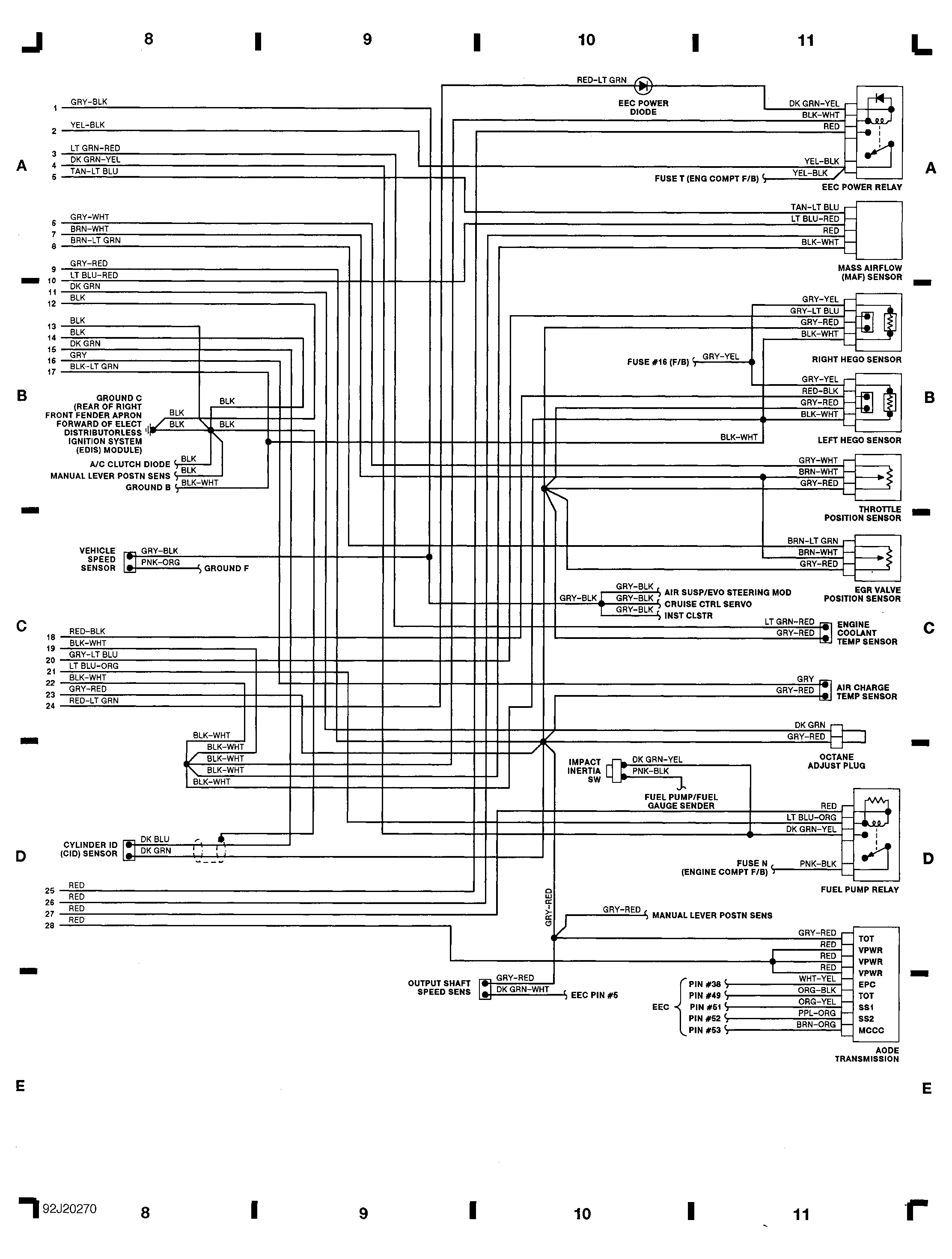

Fig 3: HEGO Sensors, Engine Sensors, AODE Transmission (Grid 8-11)

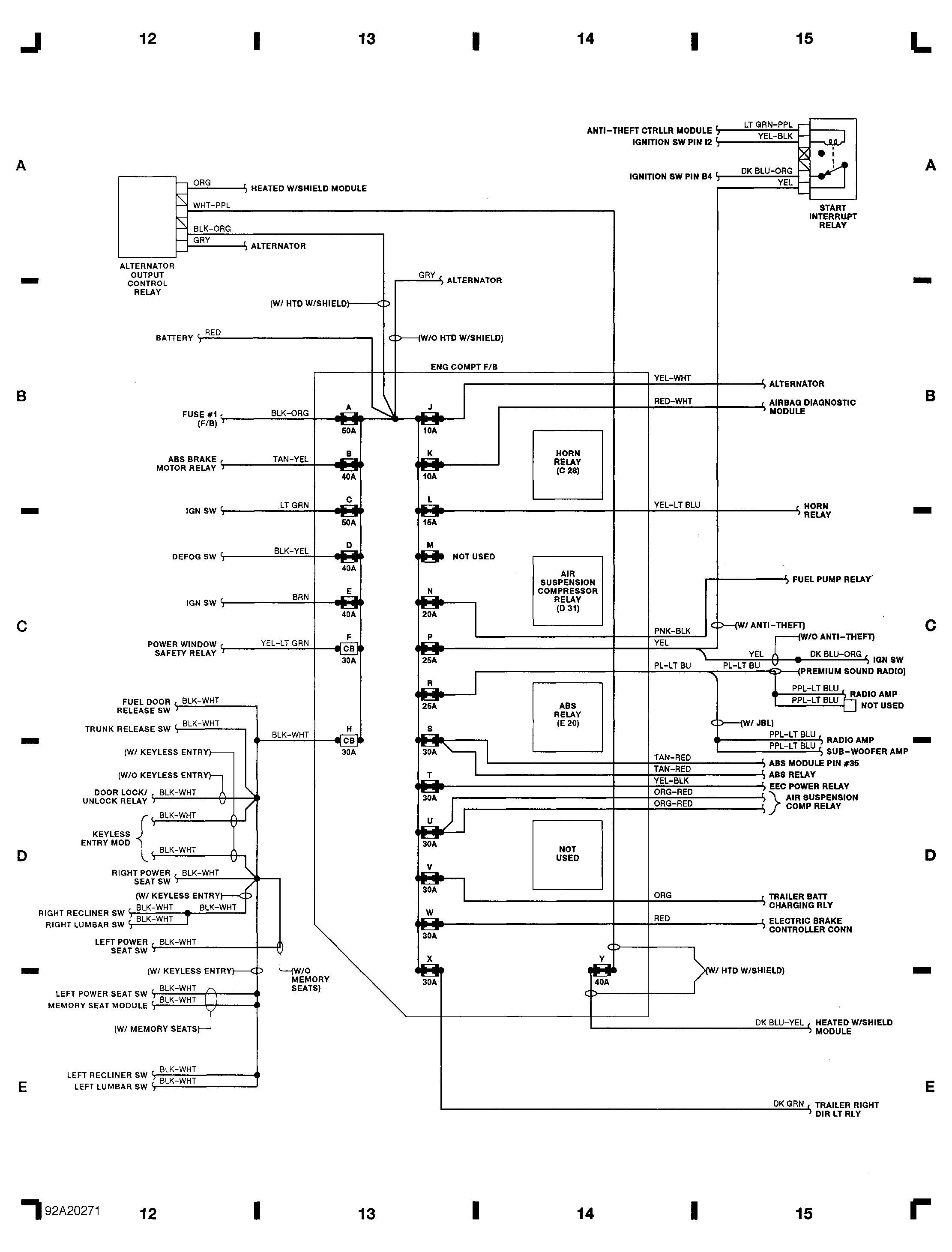

Fig 4: Engine Compartment Fuse Block (Grid 12-15)

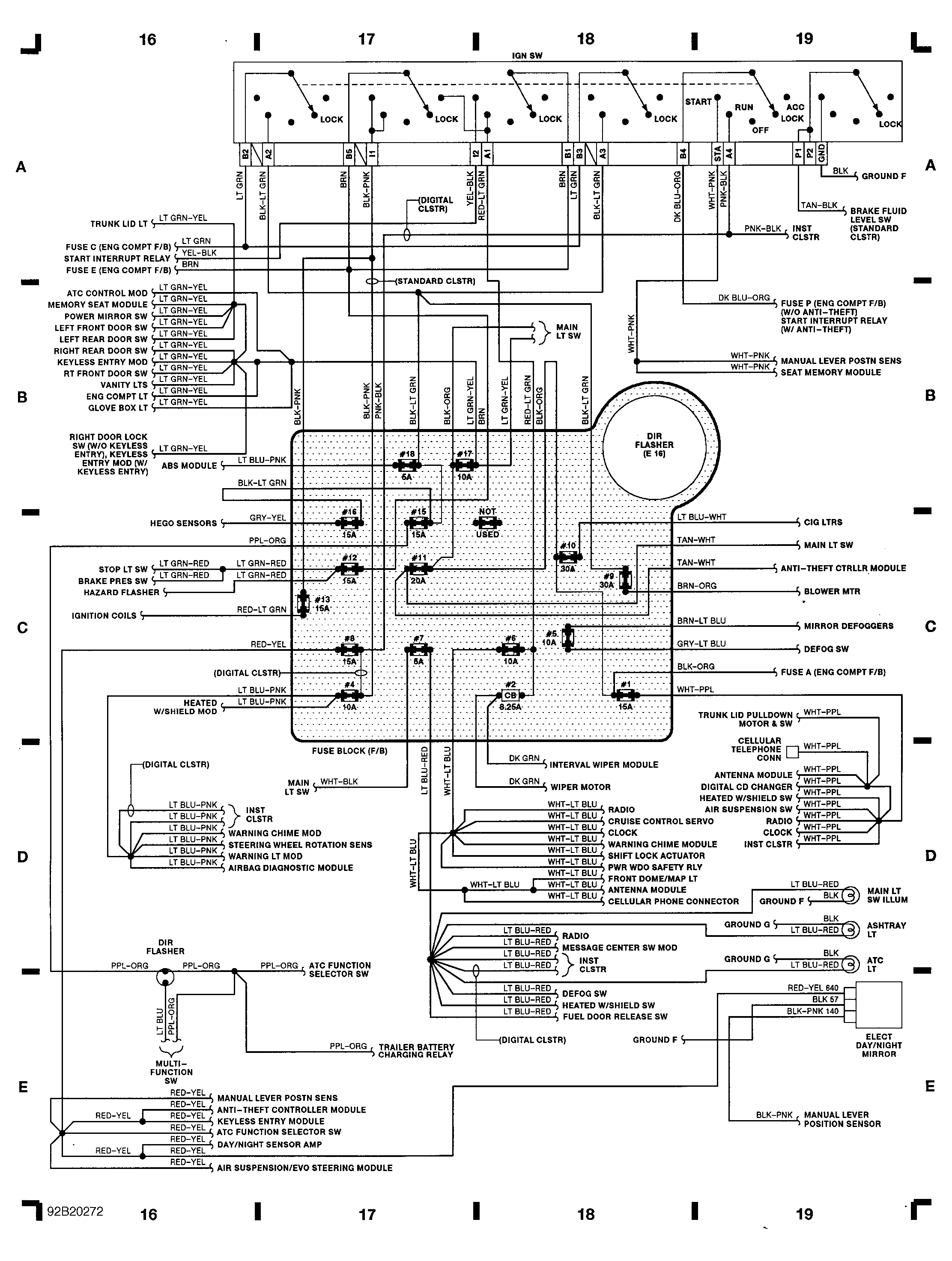

Fig 5: Fuse Block, Ignition Switch (Grid 16-19)

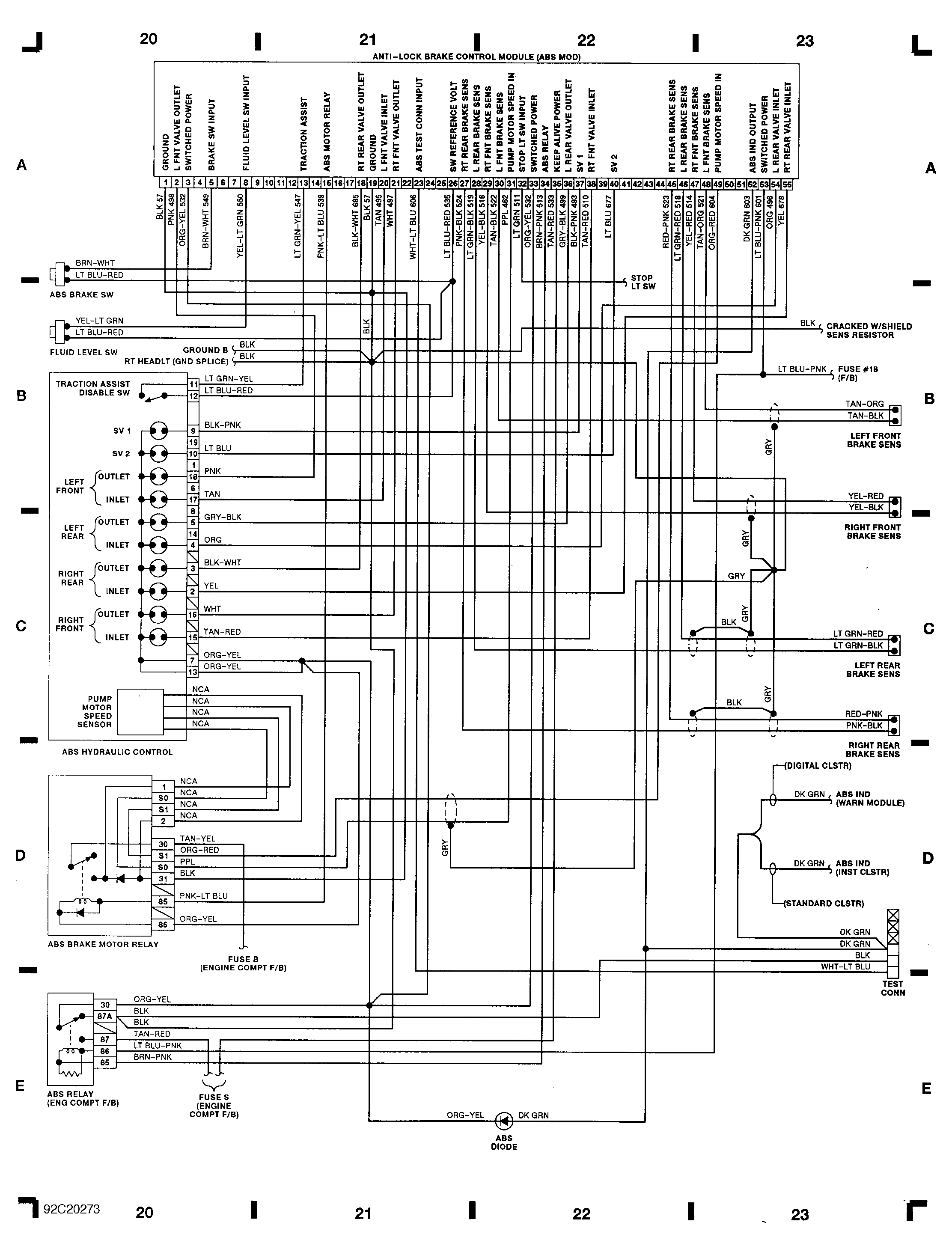

Fig 6: Anti-Lock Brake Control Module (ABS MOD) (Grid 20-23)

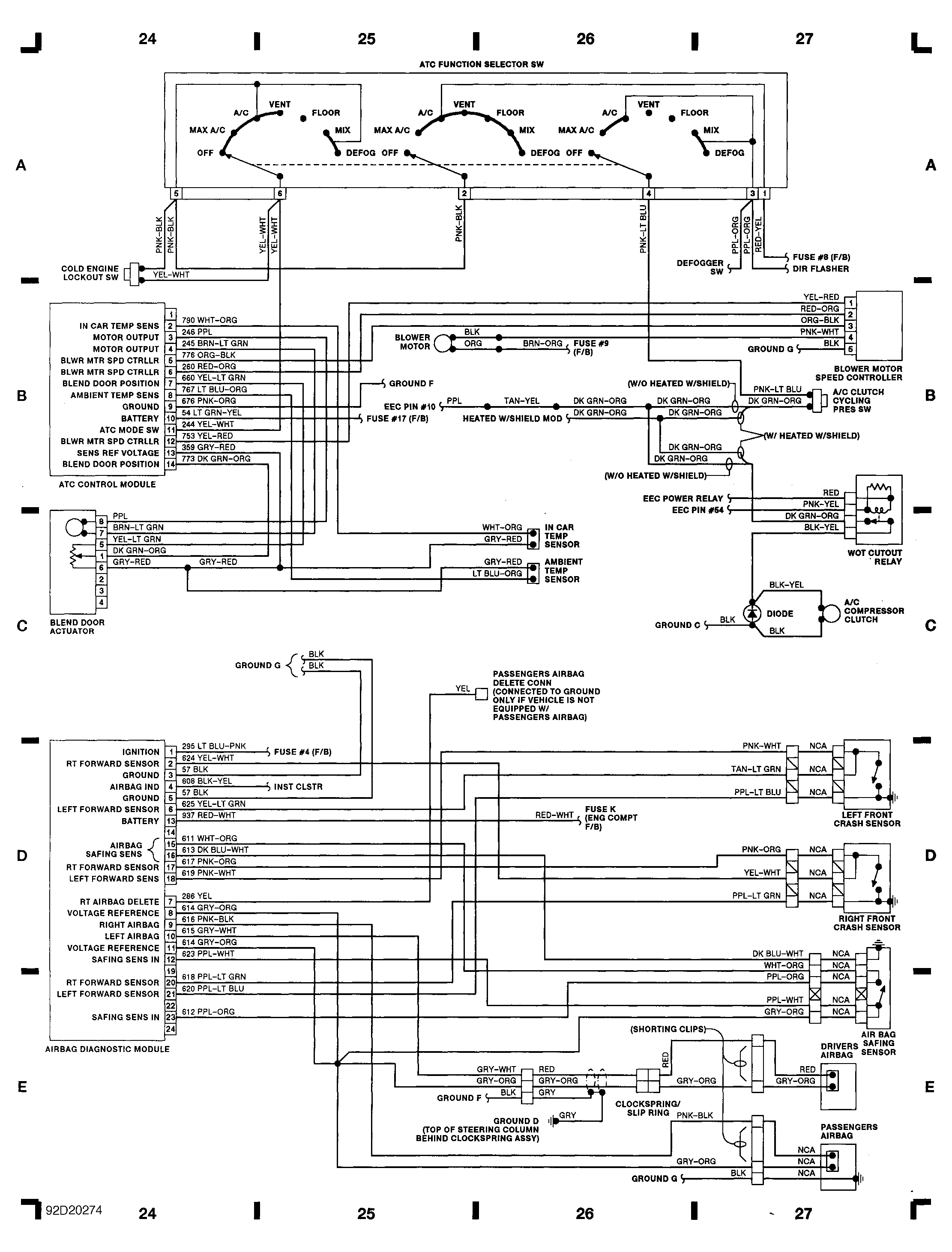

Fig 7: Auto Temp Control, Airbag System (Grid 24-27)

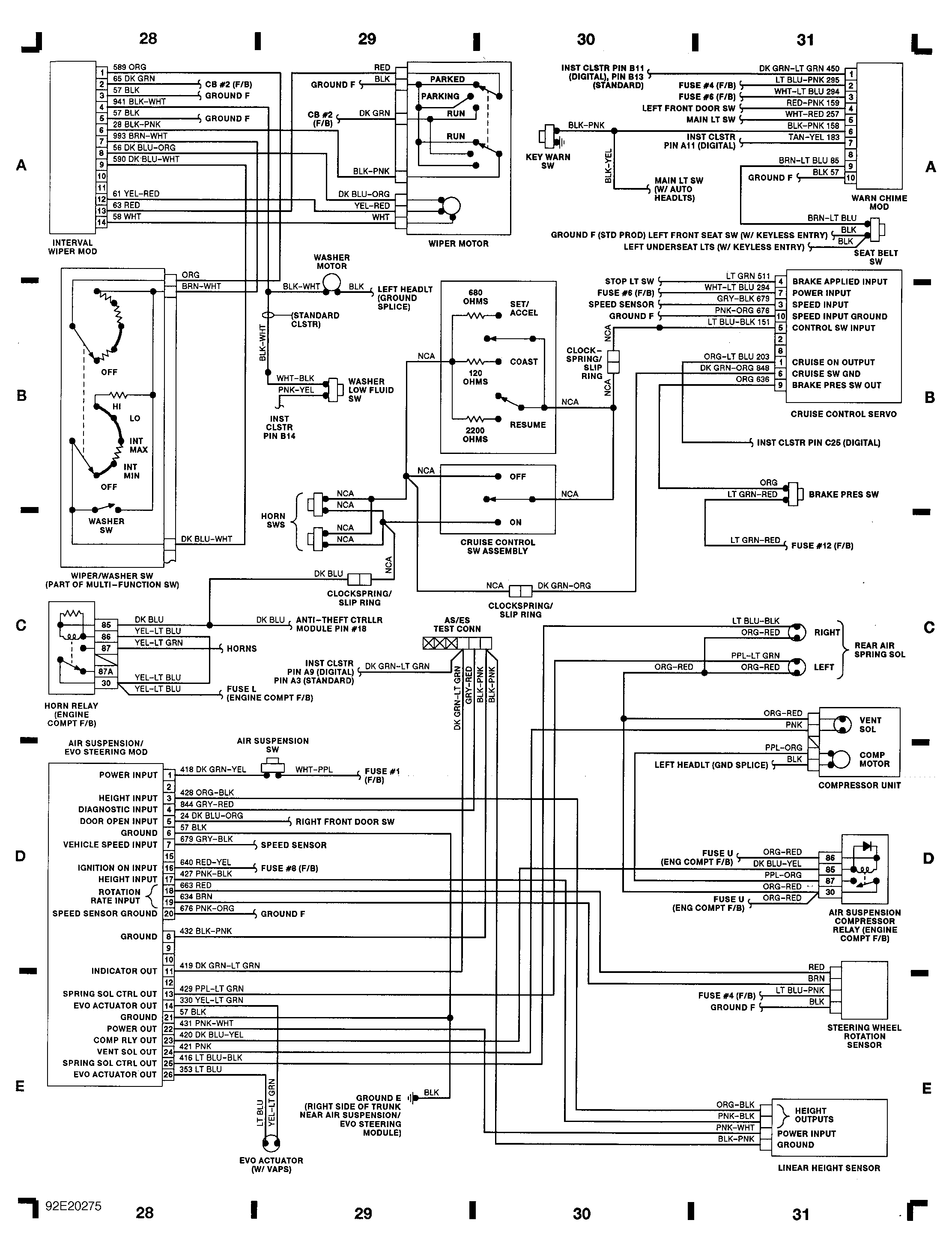

Fig 8: Wiper/Washer System, Cruise Control, Air Susp (Grid 28-31)

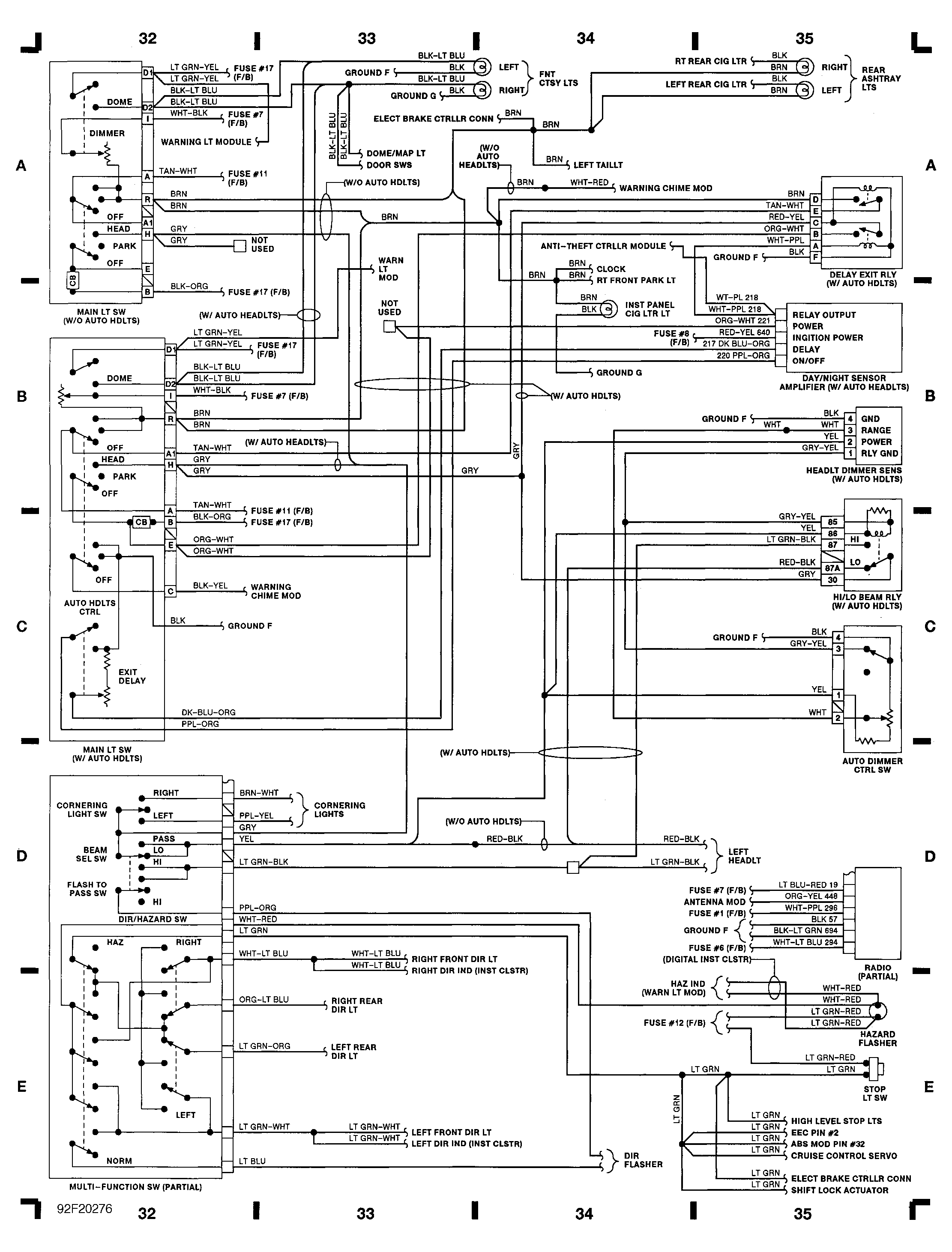

Fig 9: Main Light Sw, Multi-Function Sw (Partial) (Grid 32-35)
Fig 10: Instrument Clusters, Message Center, Clock (Grid 36-39)
