Engine Oiling System: Notes

The rotor-type oil pump is driven by crankshaft and delivers pressurized lubrication to the main gallery. See Fig 1.

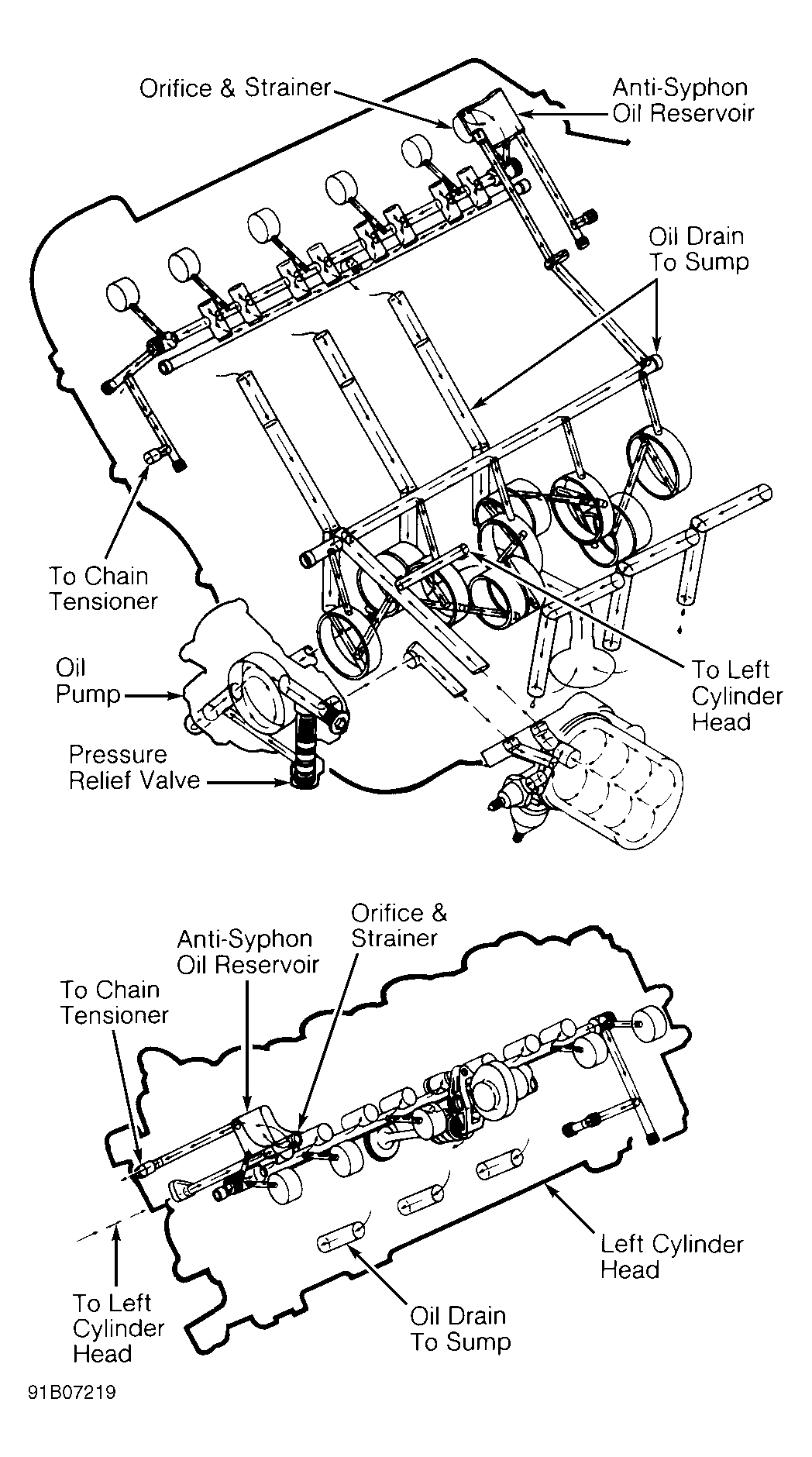

Fig 1: Cross-Sectional View of Engine Oil Circuit
G91B07219Courtesy of FORD MOTOR CO.
