1993 Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.
Fig 1: 1993 Instrument Cluster (Crown Victoria & Grand Marquis - 1 Of 2)
G93B41294
Fig 2: 1993 Instrument Cluster (Crown Victoria & Grand Marquis - 2 Of 2)
G93C41295

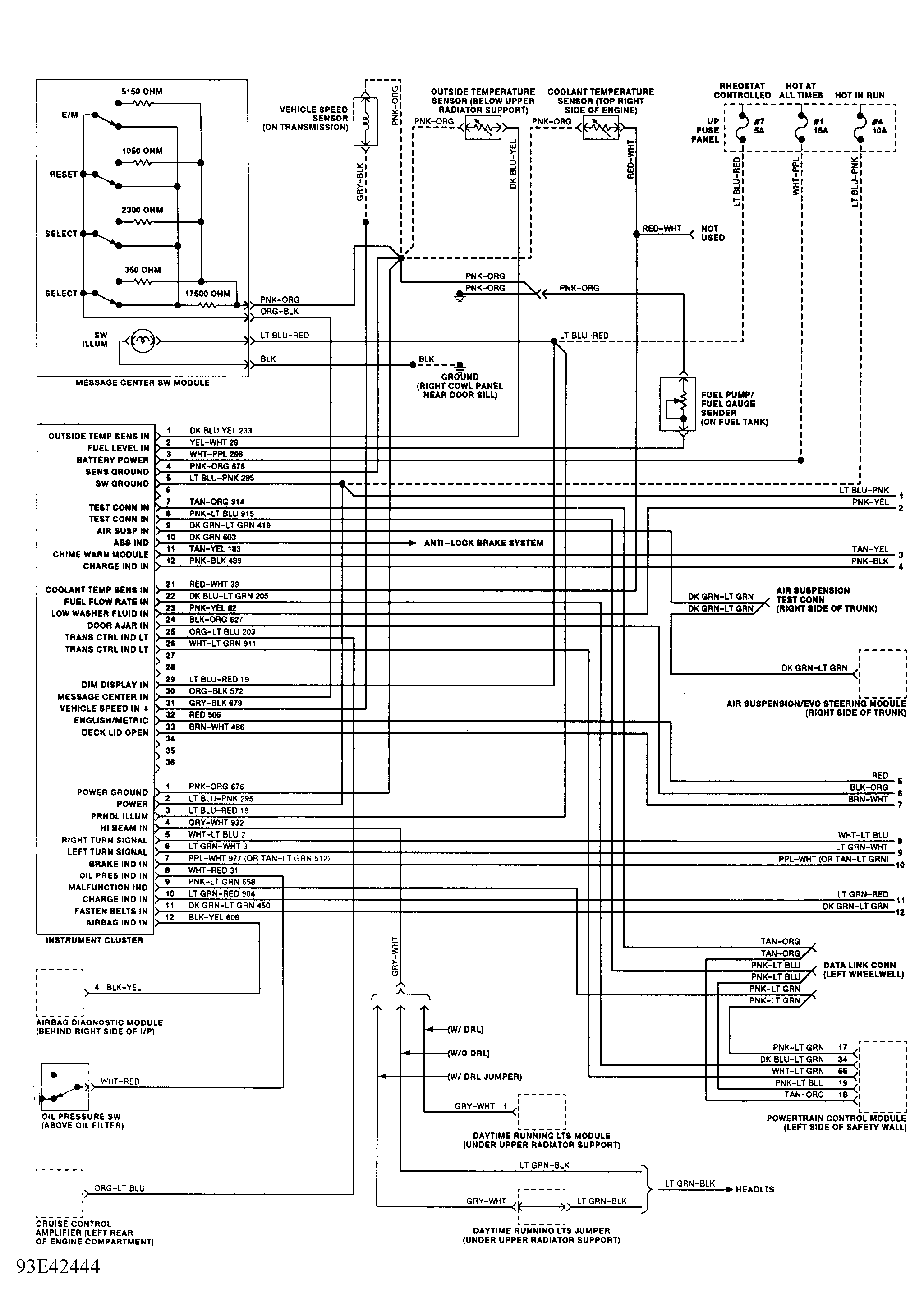

Fig 3: 1993 Instrument Cluster (Town Car - 1 Of 2)
G93E42444

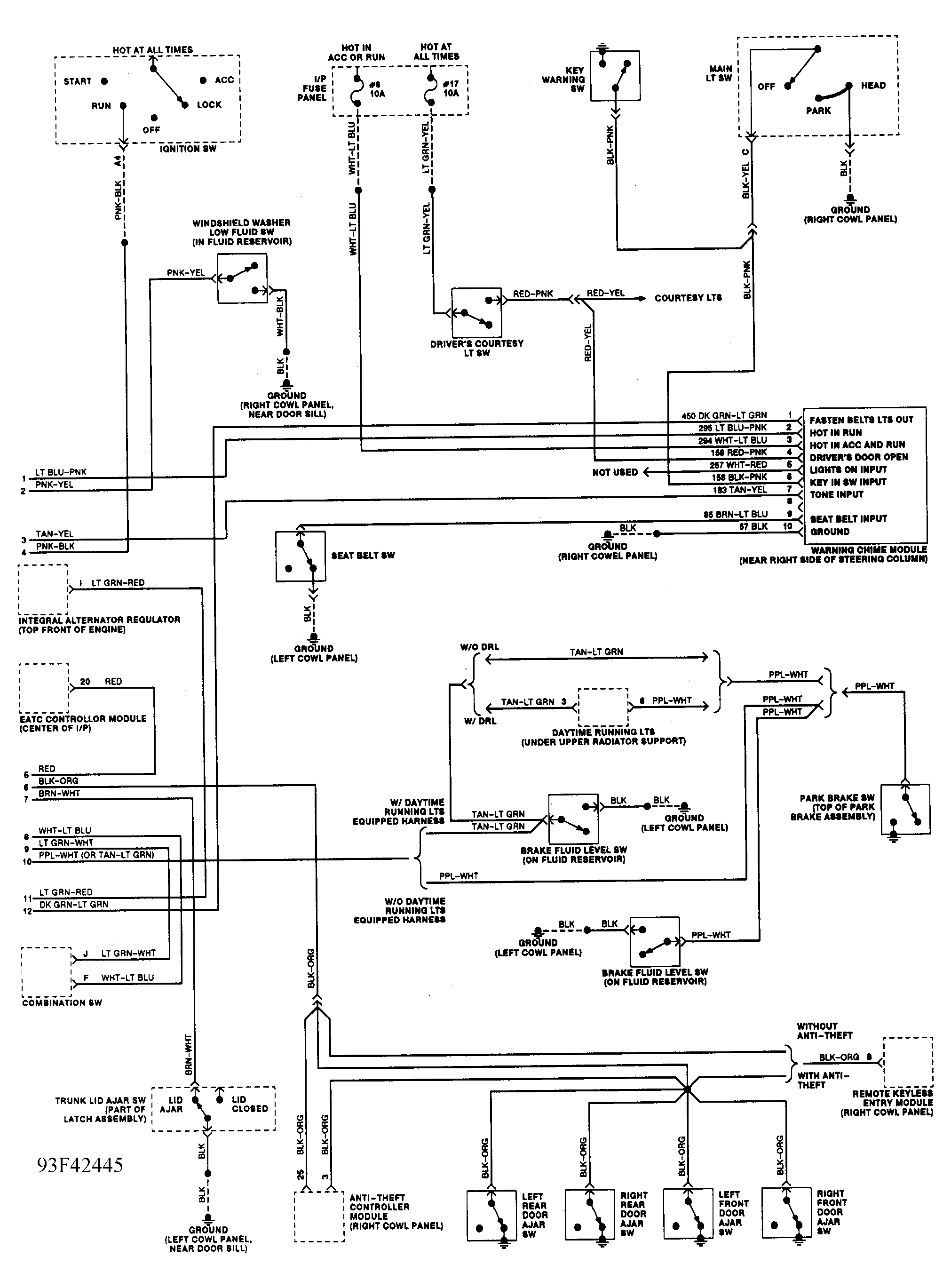

Fig 4: 1993 Instrument Cluster (Town Car - 2 Of 2)
G93F42445
