1992 Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.

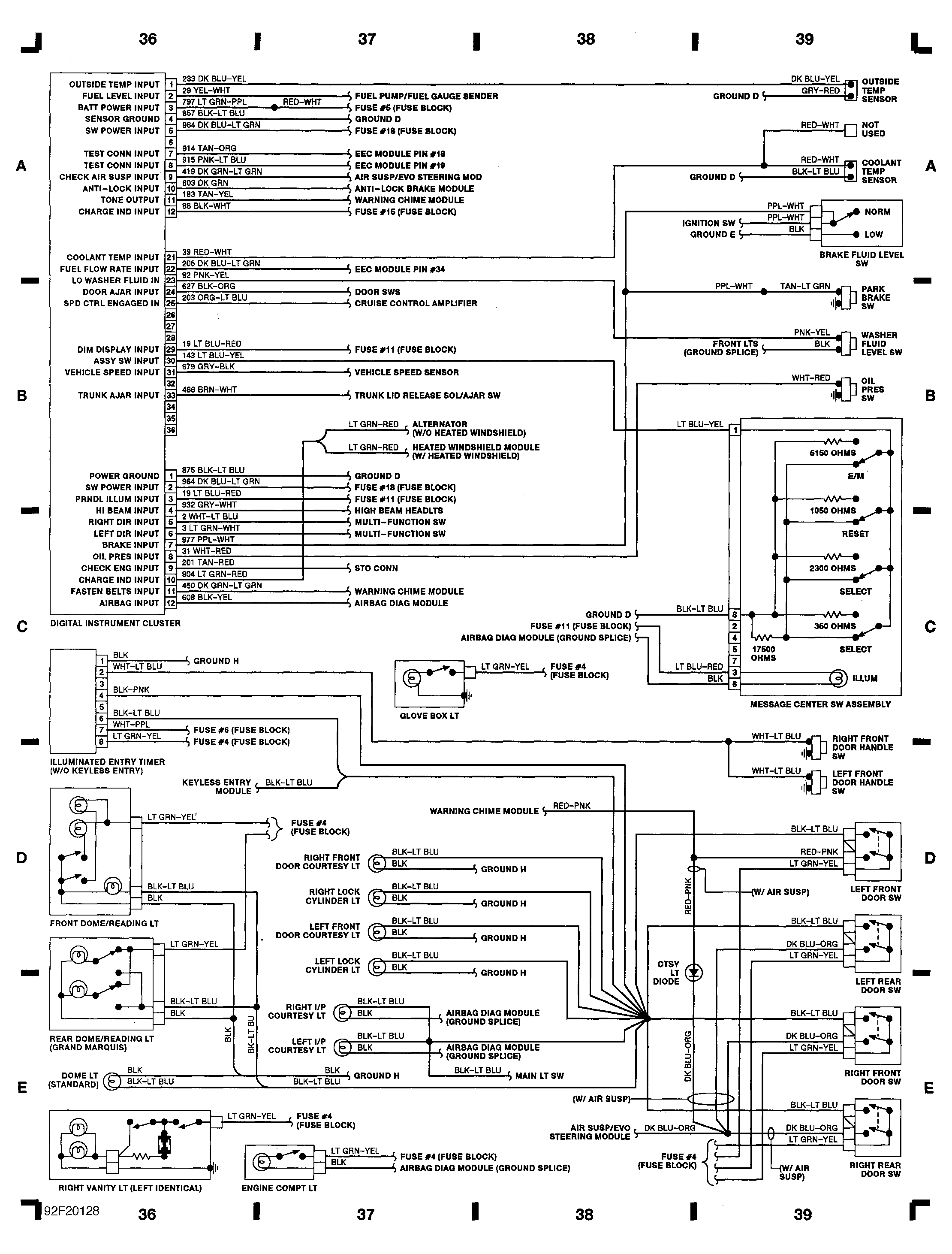

Fig 1: 1992 Instrument Cluster (Grand Marquis & Crown Victoria) (Grid A-C 36-39)
G92F20128
Fig 2: 1992 Instrument Cluster (Town Car) (Grid A-C 36-39)
G92G20277
