Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.

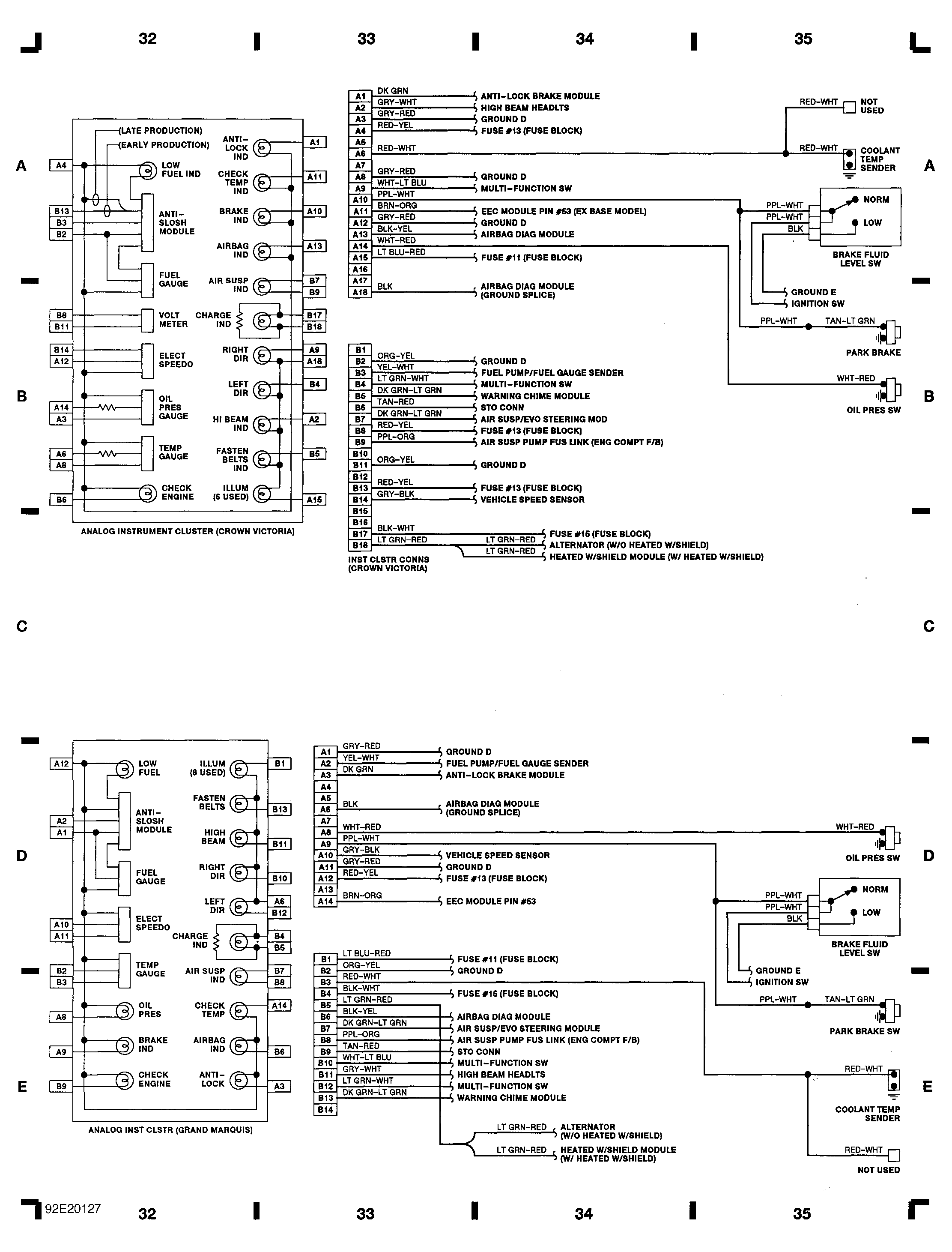

Fig 1: Instrument Cluster Crown Victoria & Grand Marquis, (Grid A-B 32-35 & D-E 32-35)

G92E20127

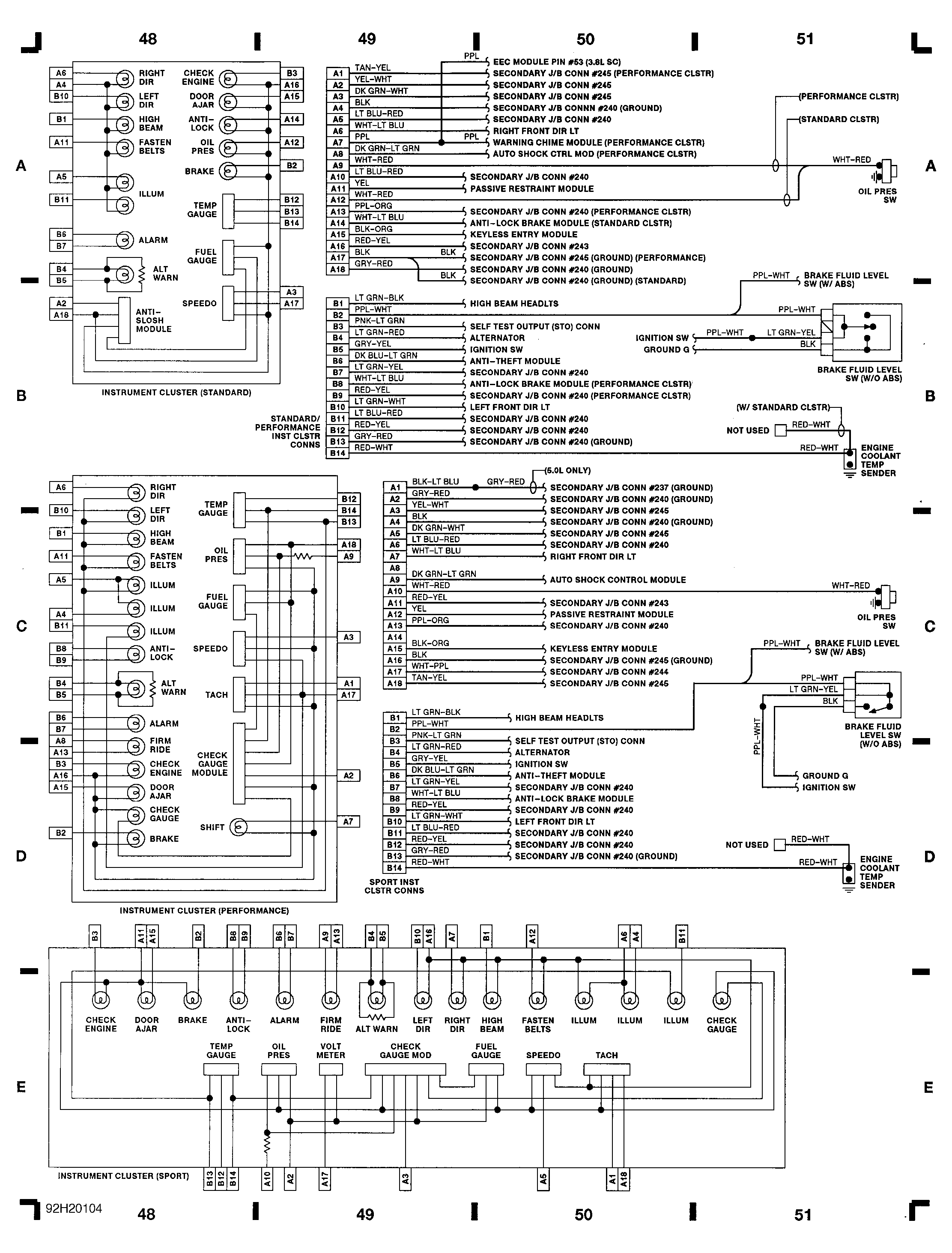

Fig 2: Instrument Cluster (Thunderbird & Cougar, Grid A-E 48-51)

G92H20104

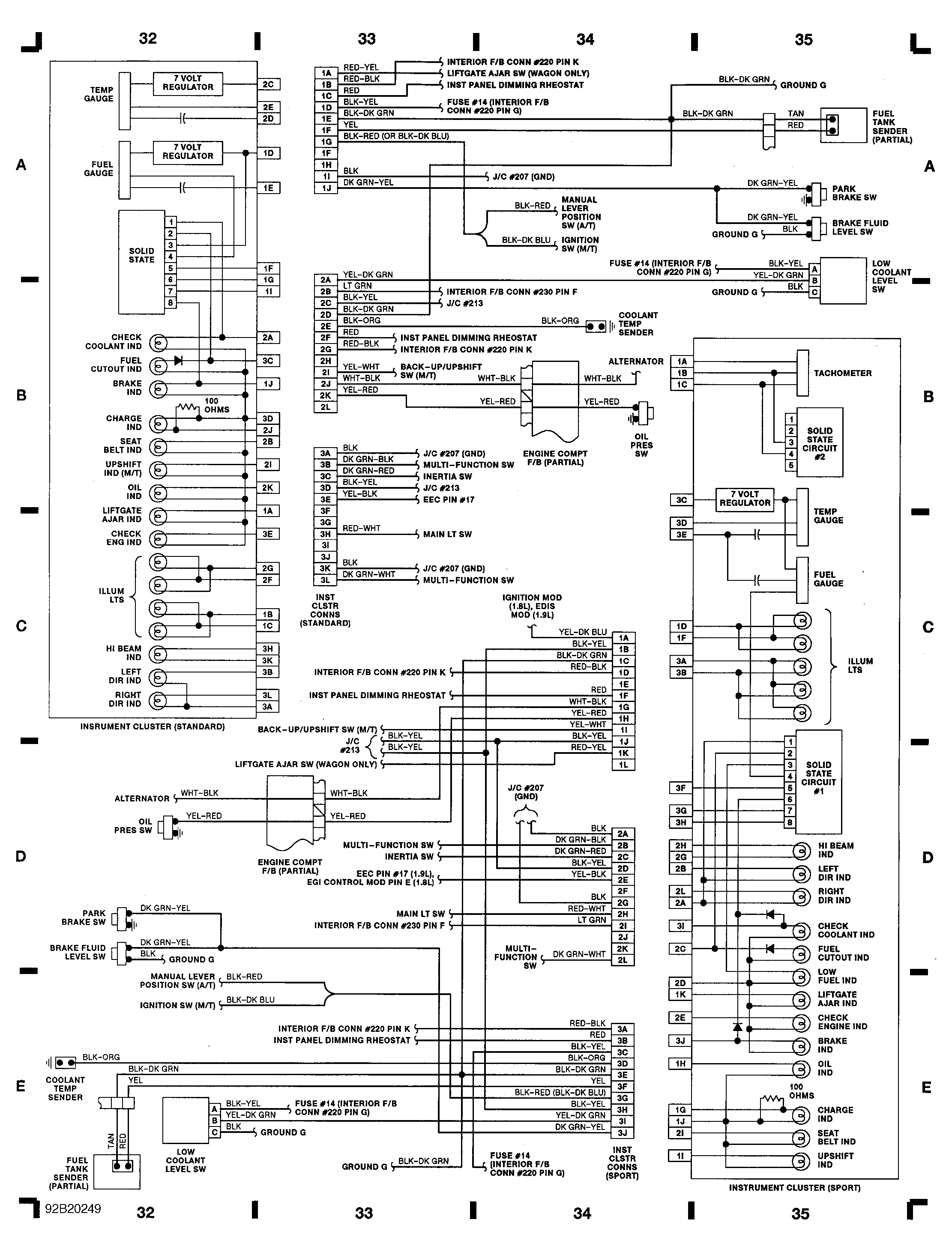

Fig 3: Instrument Cluster (Escort & Tracer, Grid A-E 32-35)

G92B20249

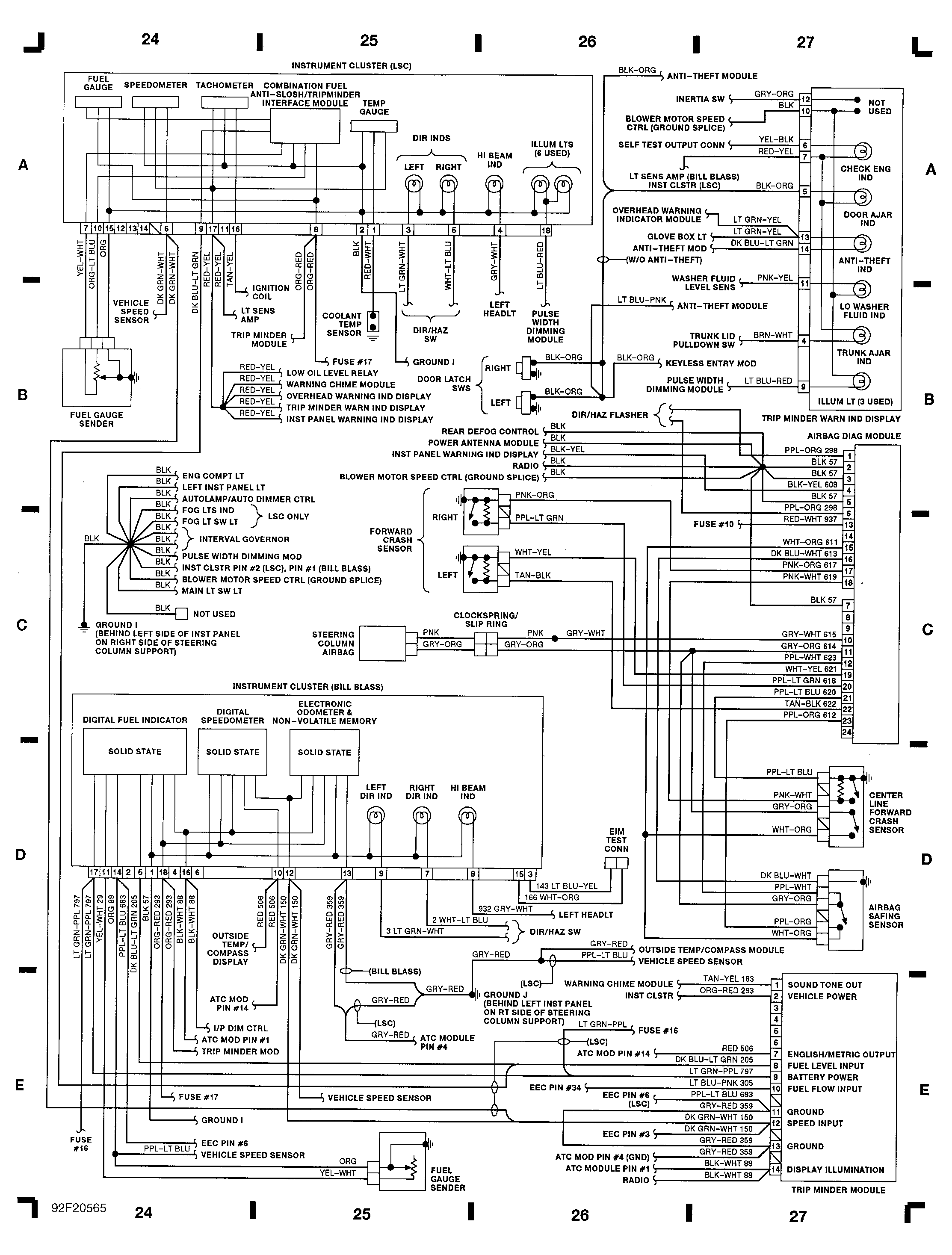

Fig 4: Instrument Cluster (Mark VII, Grid A-B 24-26)

G92F20565

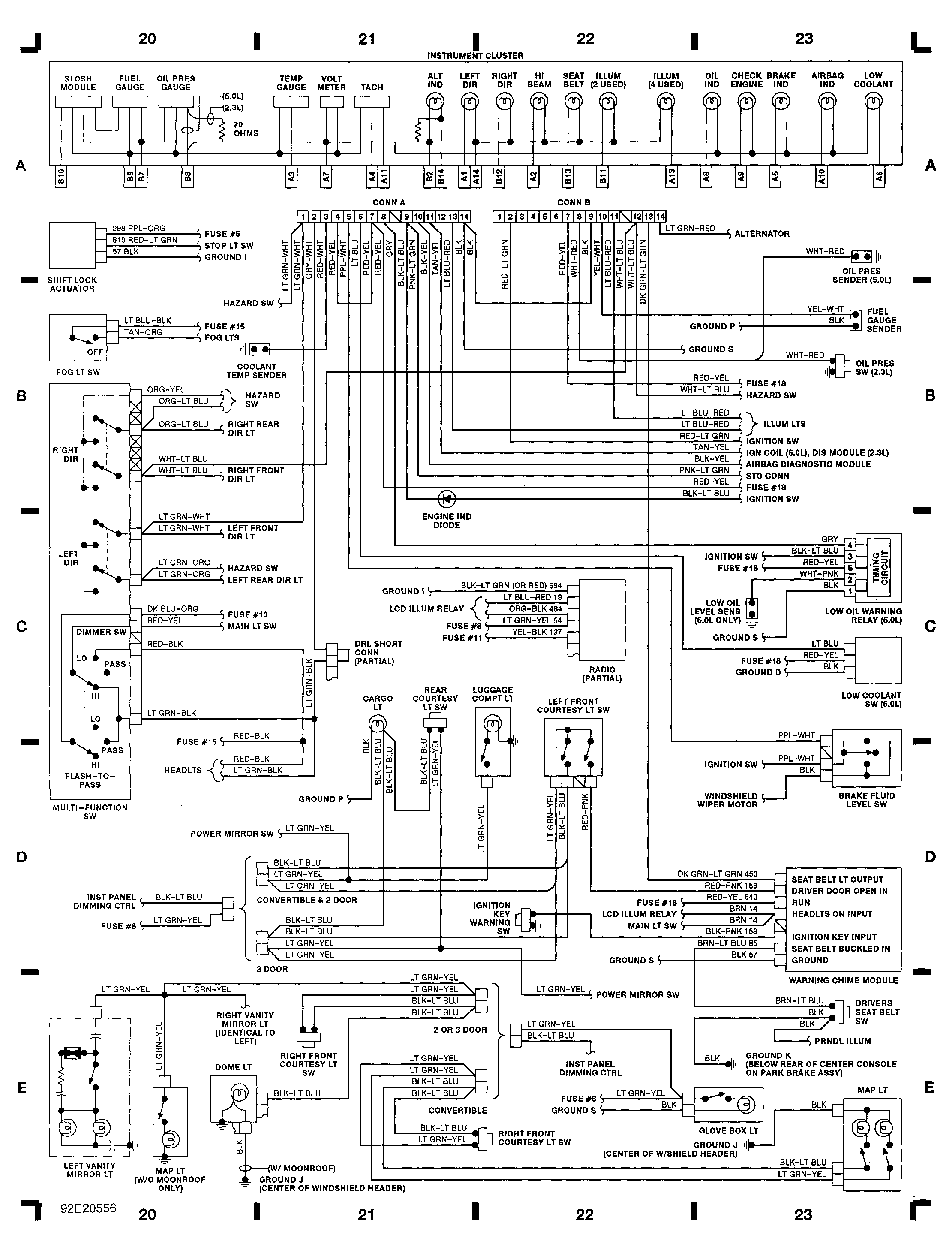

Fig 5: Instrument Cluster (Mustang, Grid A 20-23)

G92E20556

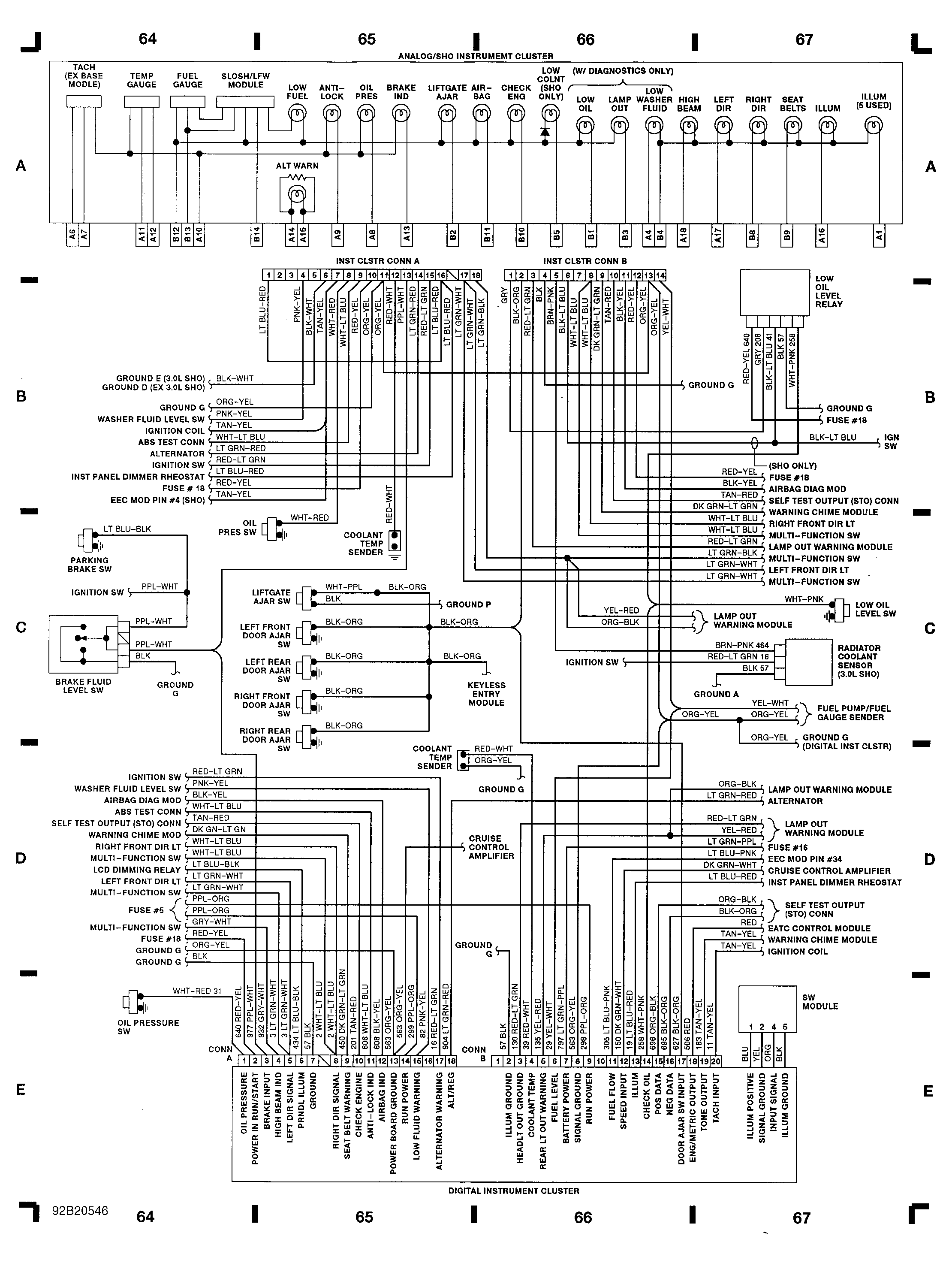

Fig 6: Instrument Cluster (Sable & Taurus, Grid A -64-67)

G92B20546

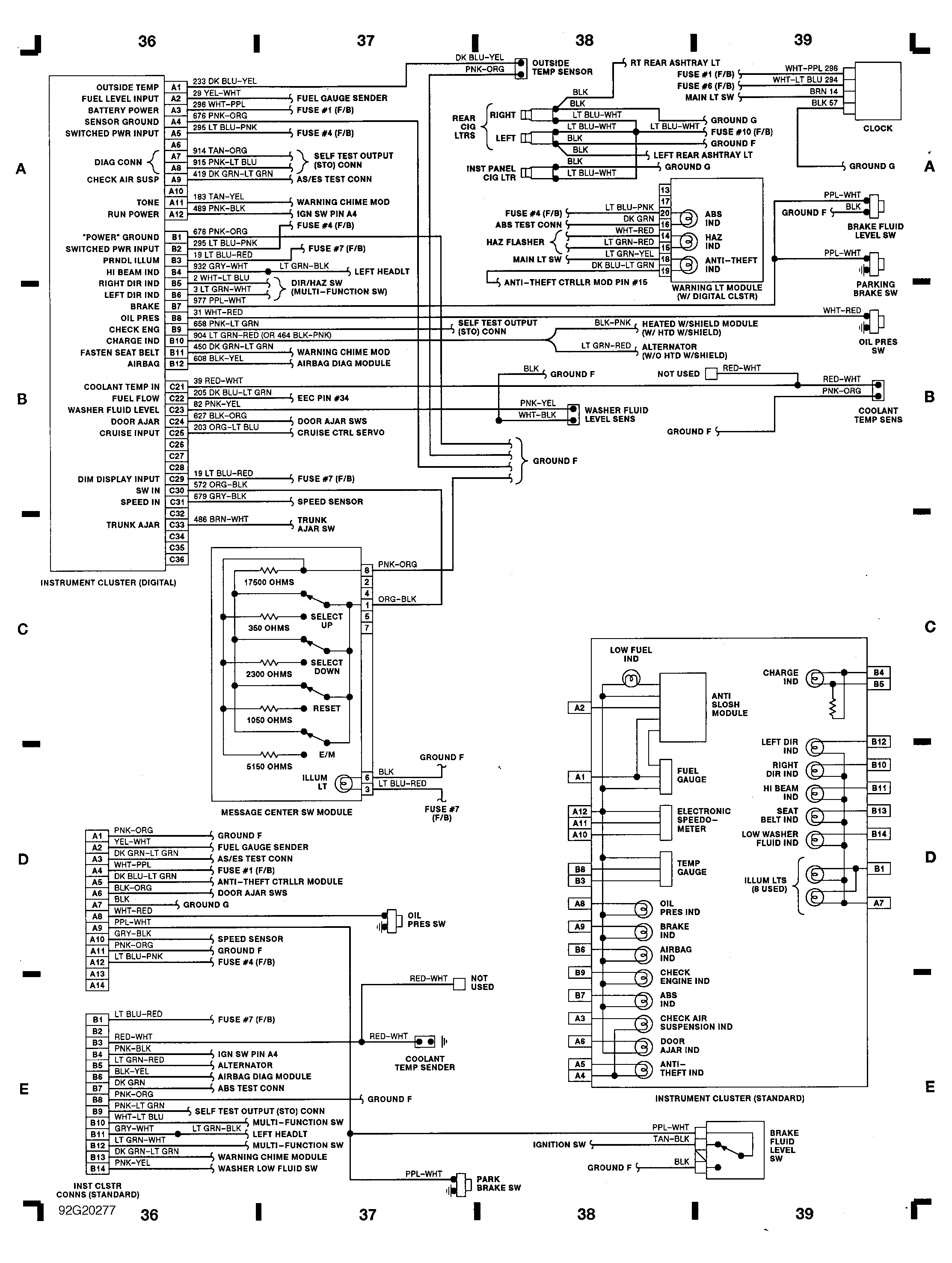

Fig 7: Instrument Cluster (Town Car, Grid C-E 36-39)

G92G20277

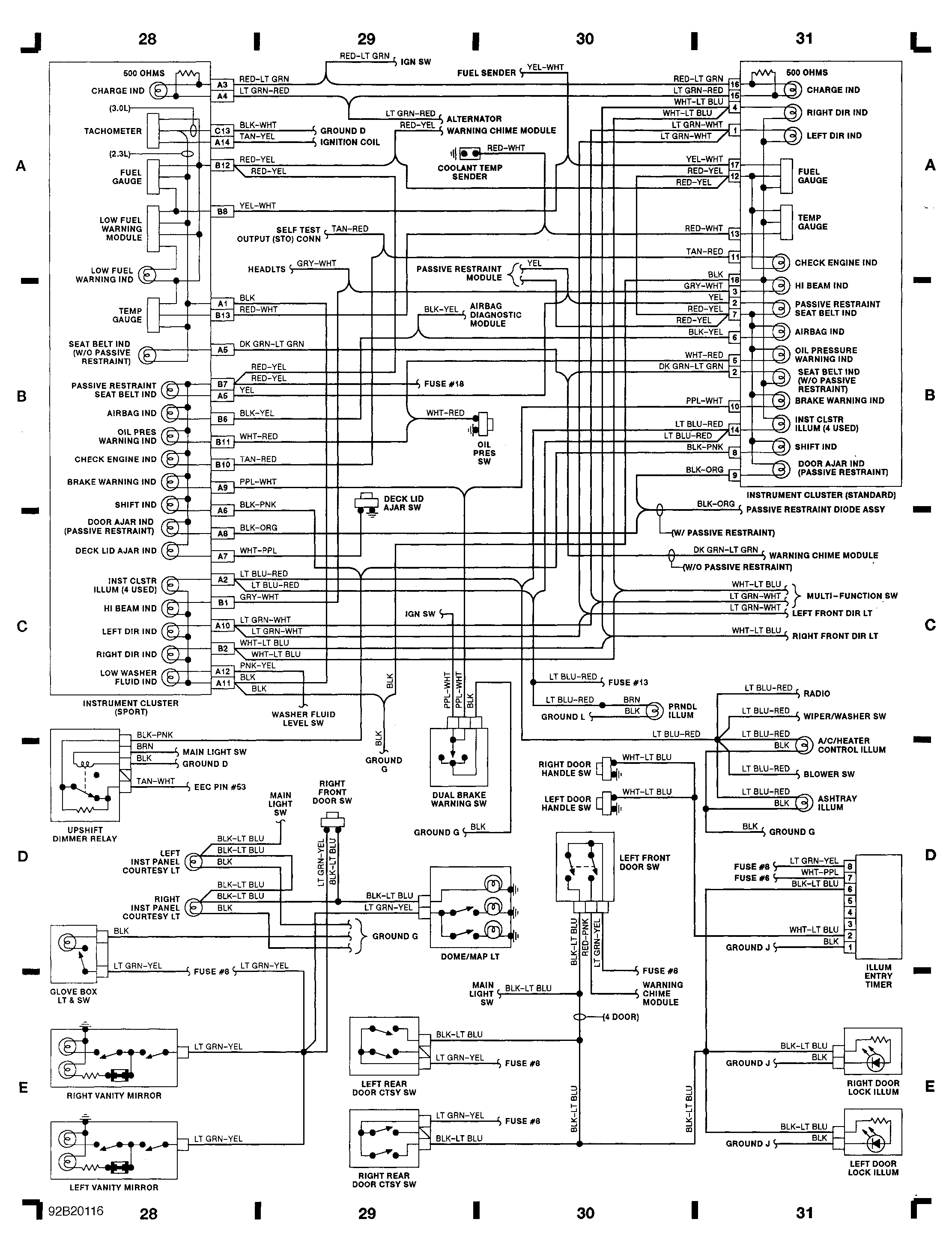

Fig 8: Instrument Cluster (Tempo & Topaz, Grid A-C 28-31)

G92B20116

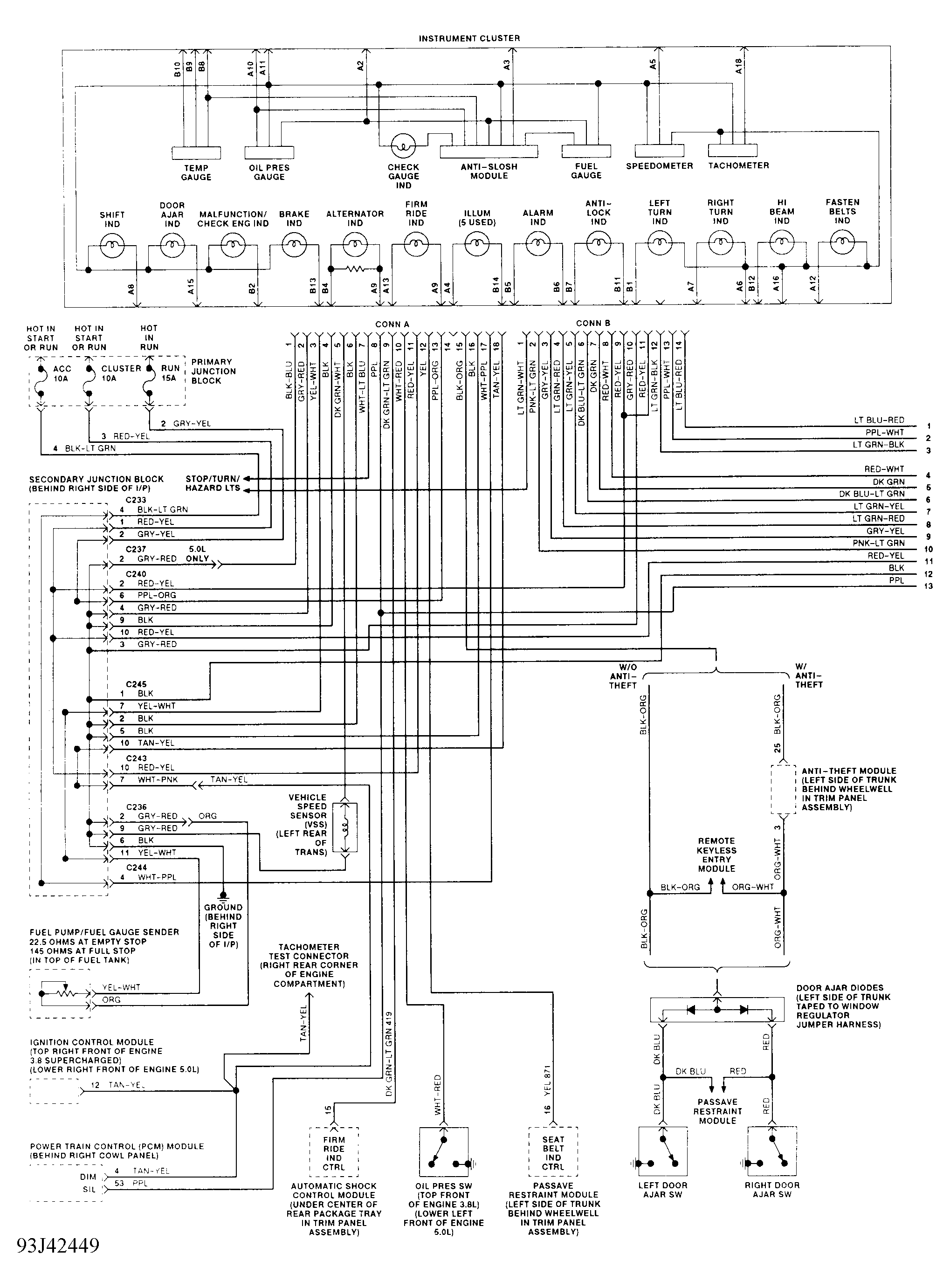

Fig 9: Analog Instruments Schematic (Cougar & Thunderbird Performance Cluster - 1 Of 2)

G93J42449

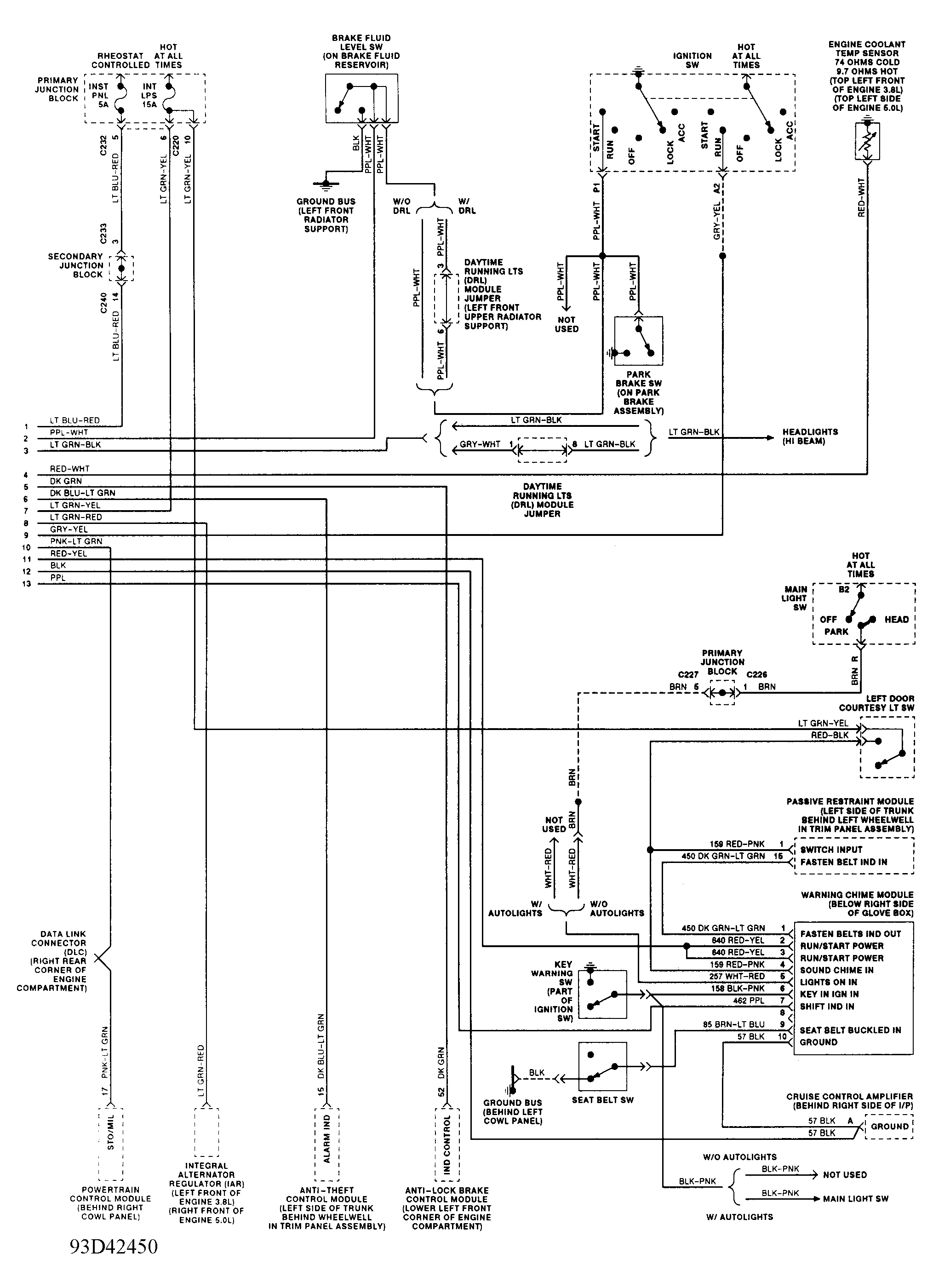

Fig 10: Analog Instruments Schematic (Cougar & Thunderbird Performance Cluster - 2 Of 2)

G93D42450

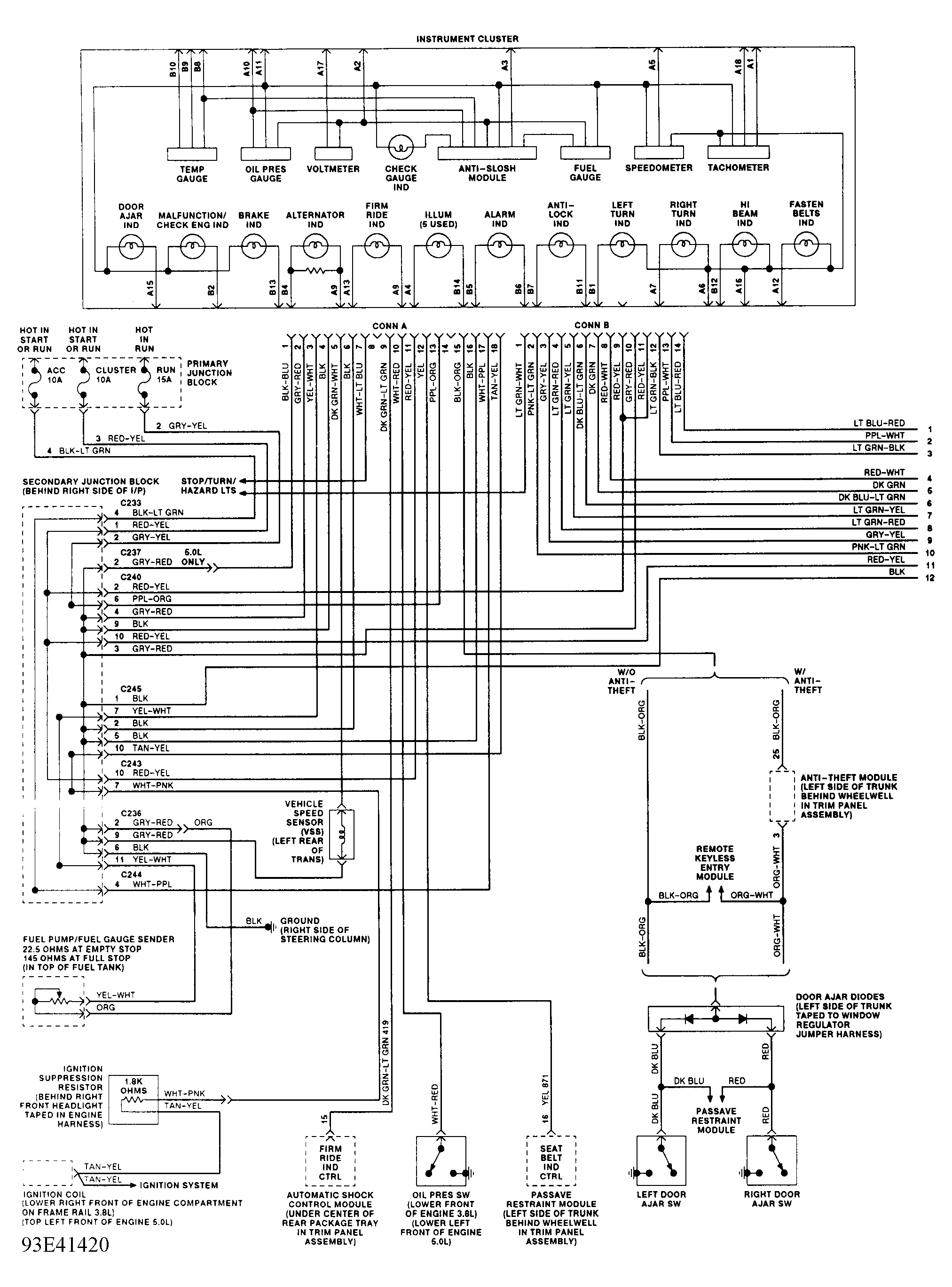

Fig 11: Analog Instruments Schematic (Cougar & Thunderbird Sport Cluster - 1 Of 2)

G93E41420

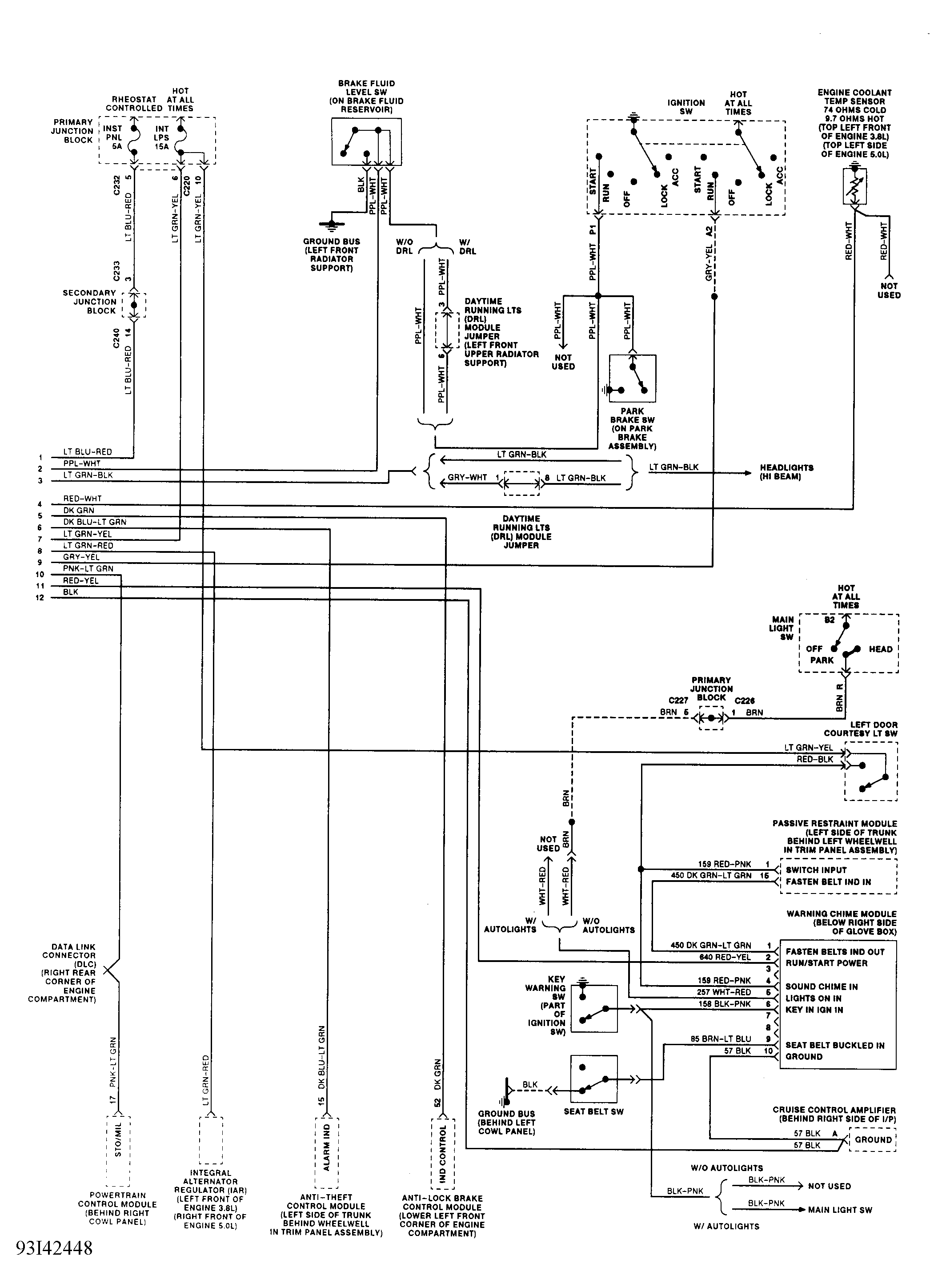

Fig 12: Analog Instruments Schematic (Cougar & Thunderbird Sport Cluster - 2 Of 2)

G93I42448

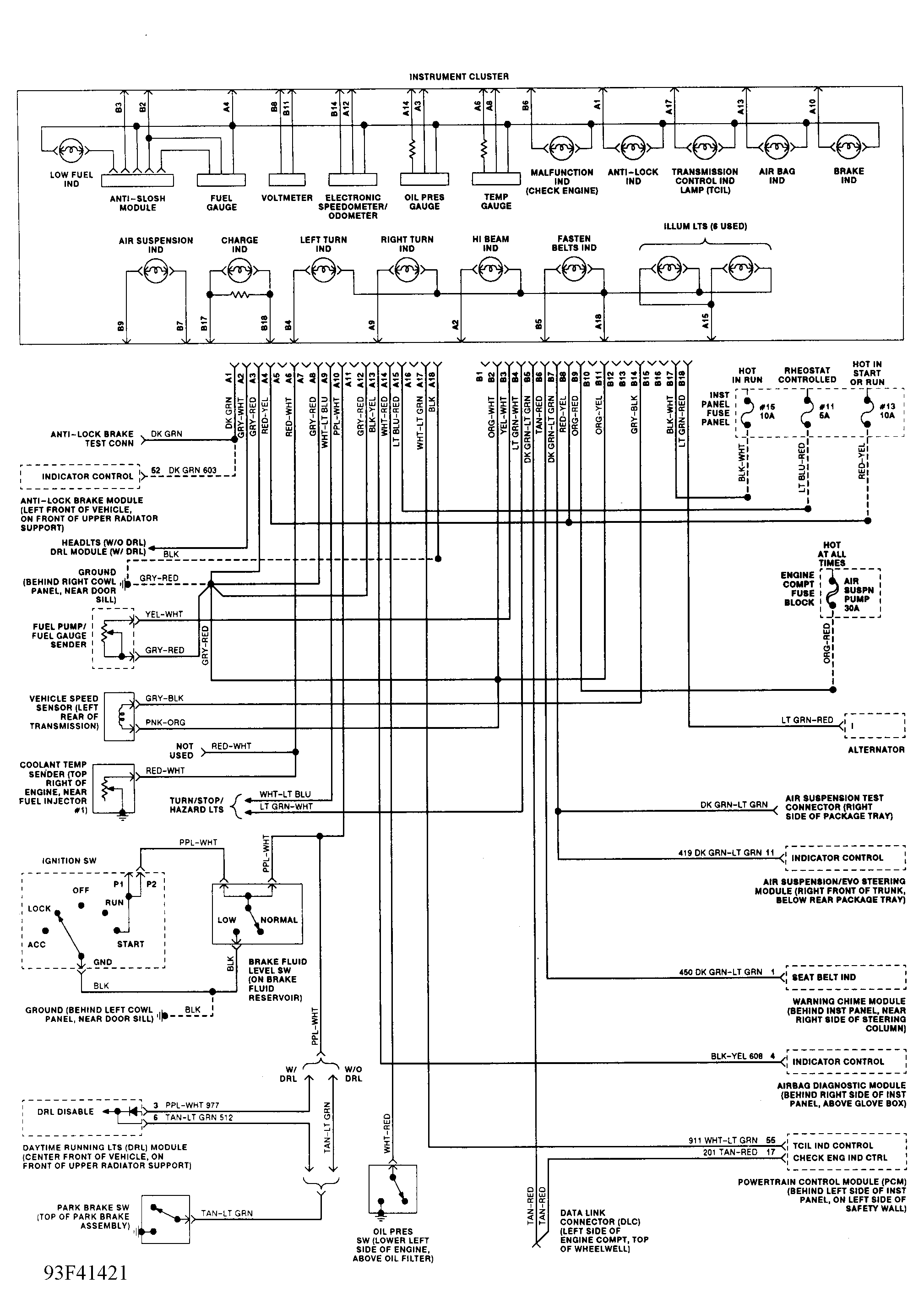

Fig 13: Analog Instruments Schematic (Crown Victoria)

G93F41421

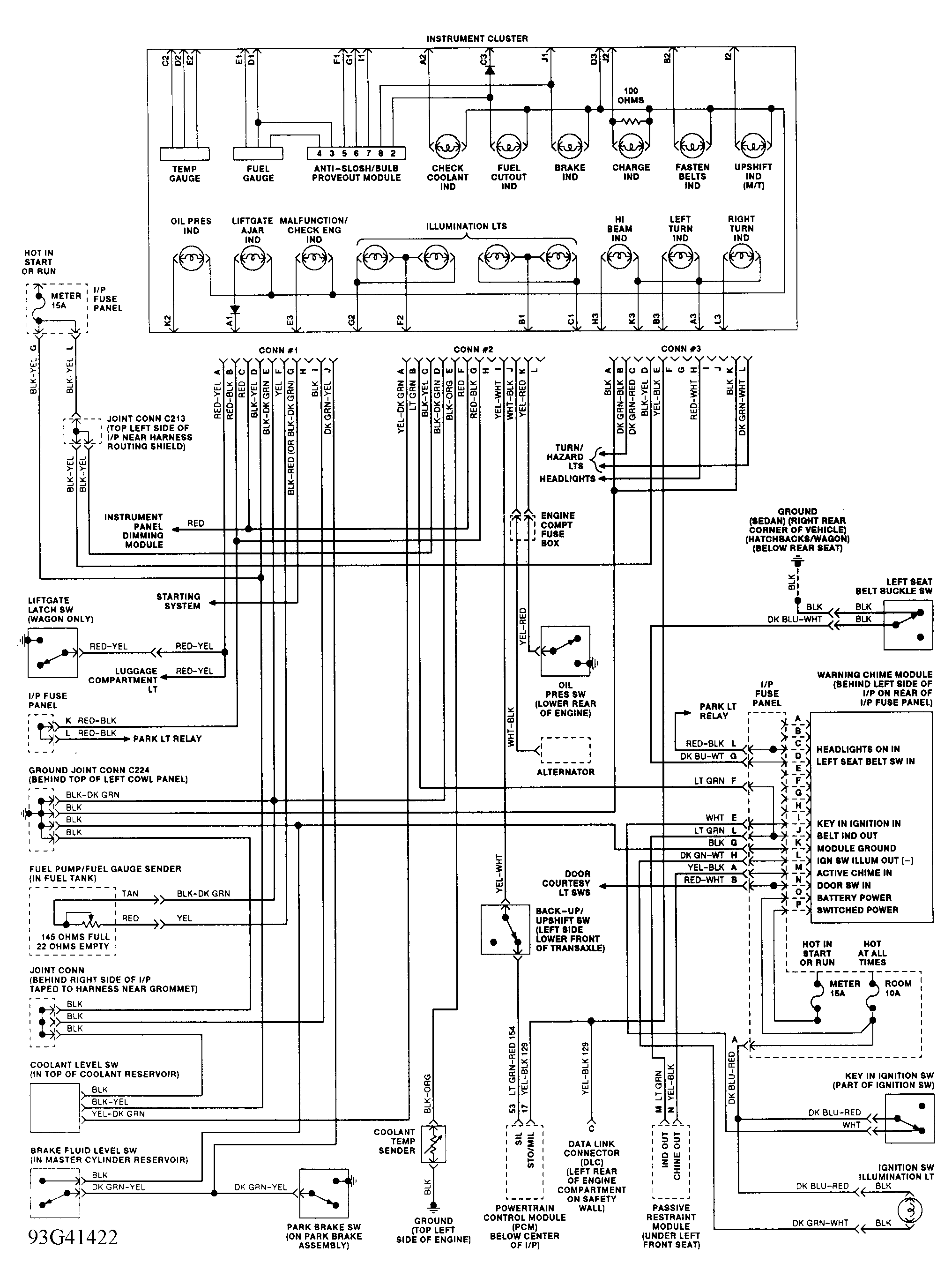

Fig 14: Analog Instruments Schematic (Escort & Tracer Standard Cluster)

G93G41422

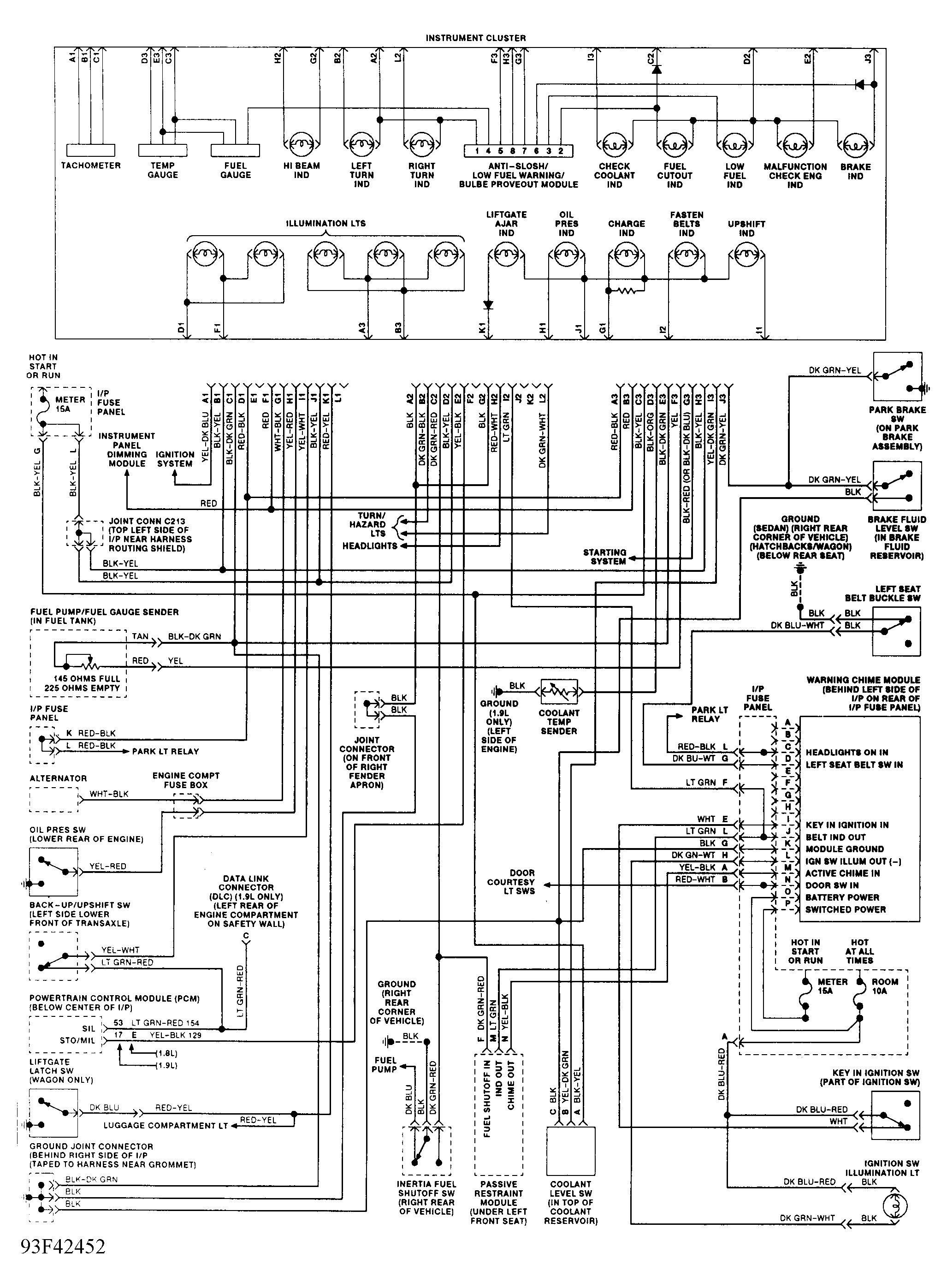

Fig 15: Analog Instruments Schematic (Escort & Tracer Sport Cluster)

G93F42452

Fig 16: Analog Instruments Schematic (Grand Marquis)

G93E42451

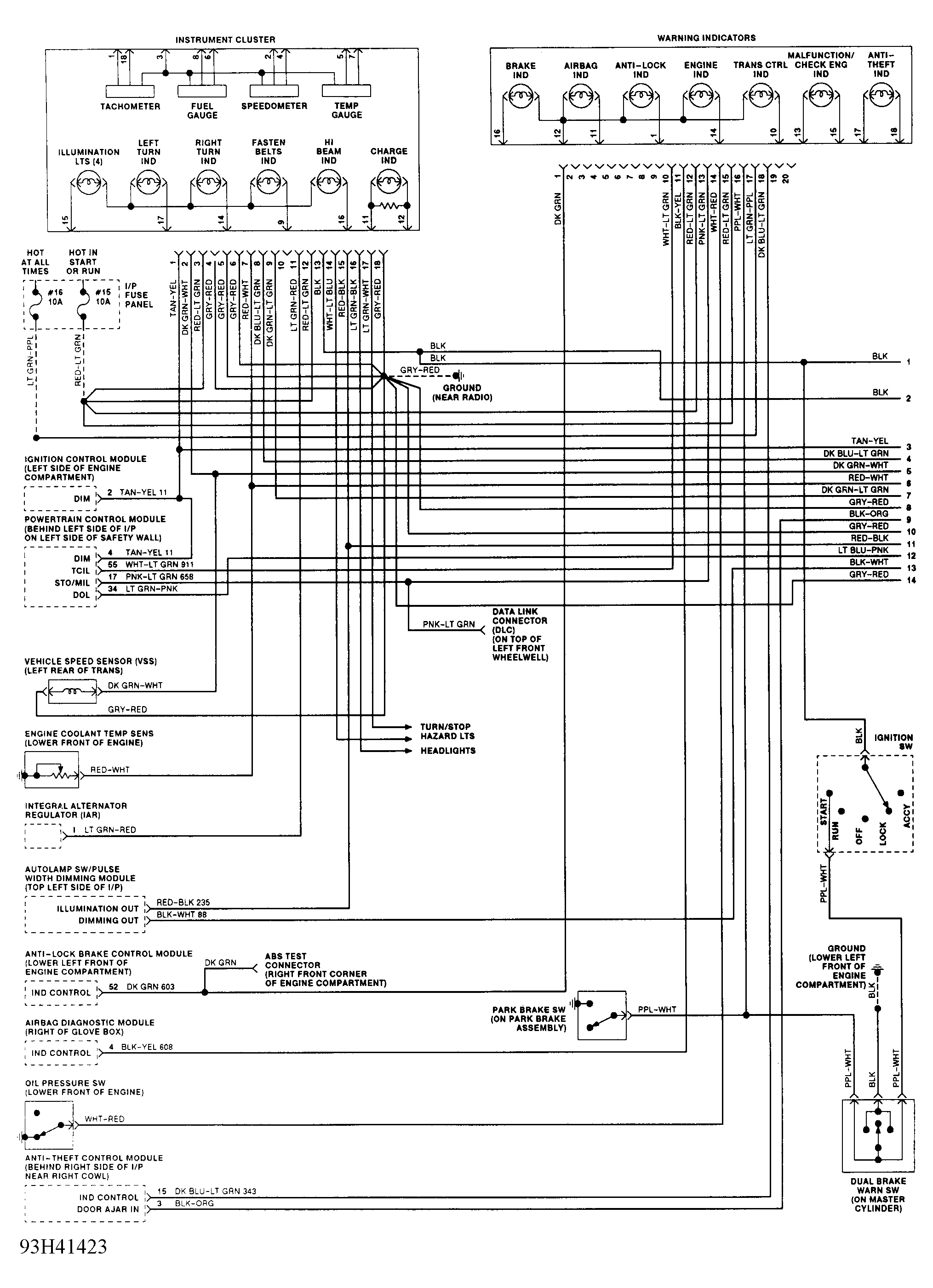

Fig 17: Analog Instruments Schematic (Mark VIII - 1 Of 2)

G93H41423

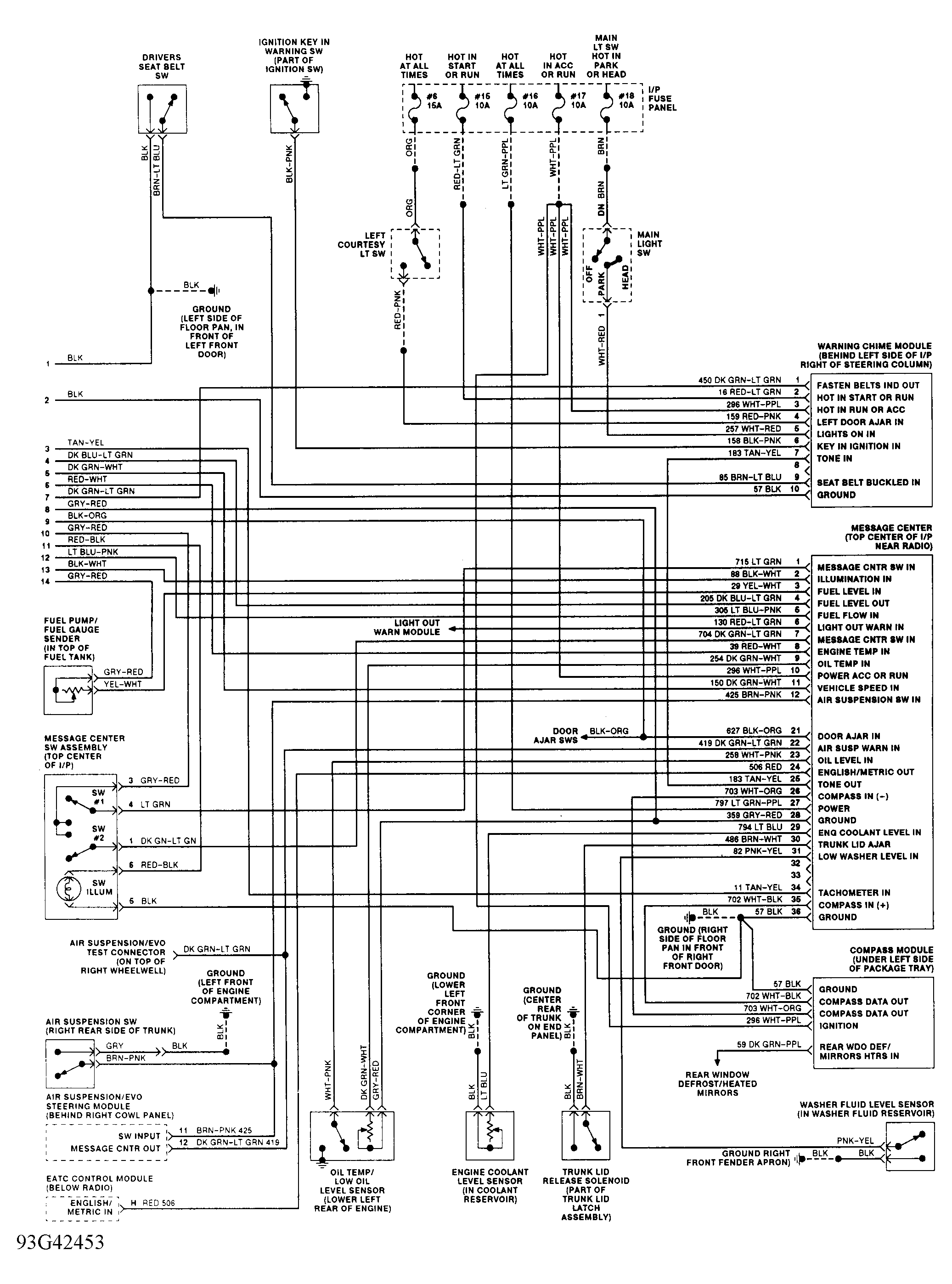

Fig 18: Analog Instruments Schematic (Mark VIII - 2 Of 2)

G93G42453

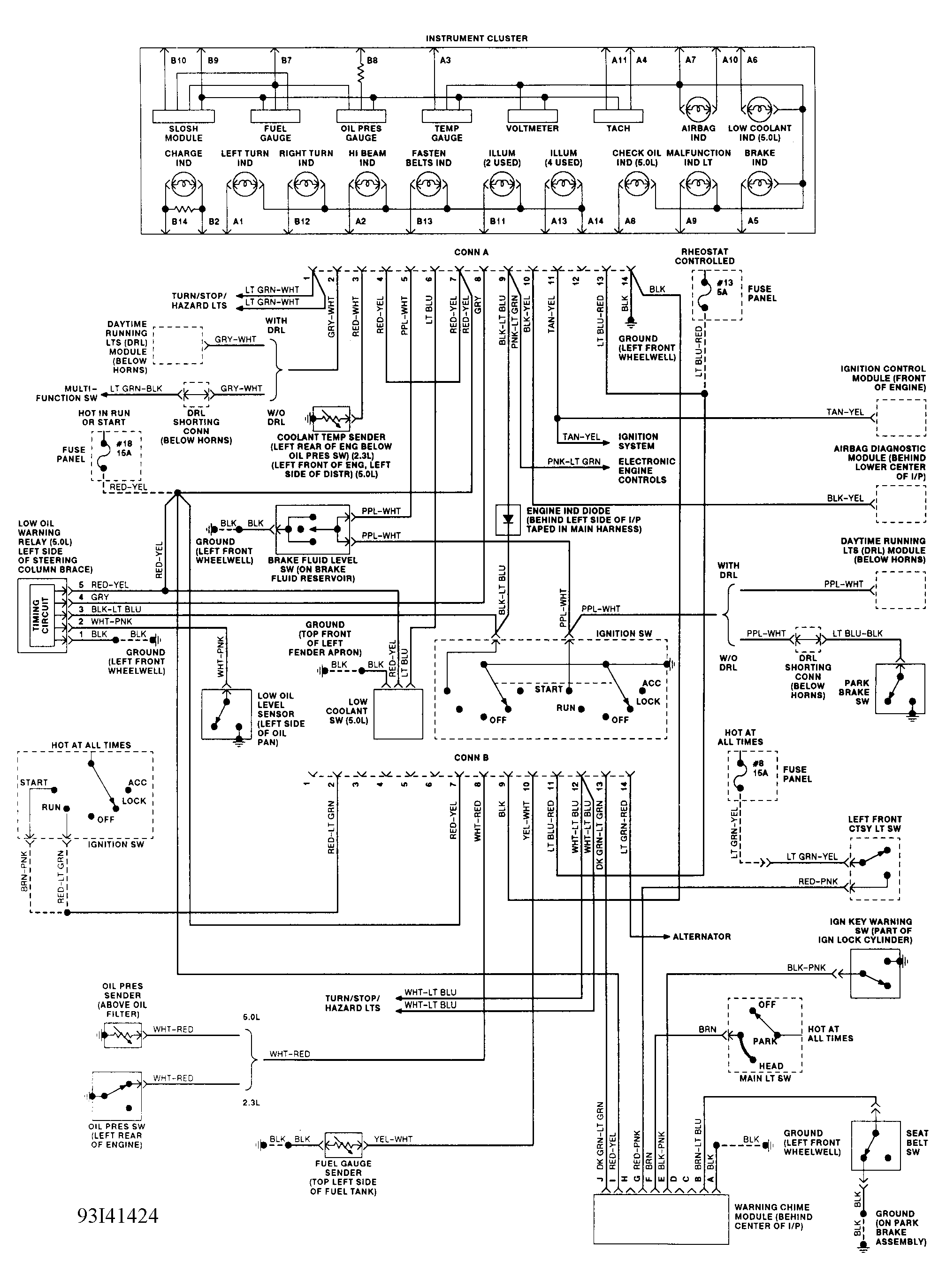

Fig 19: Analog Instruments Schematic (Mustang)

G93I41424

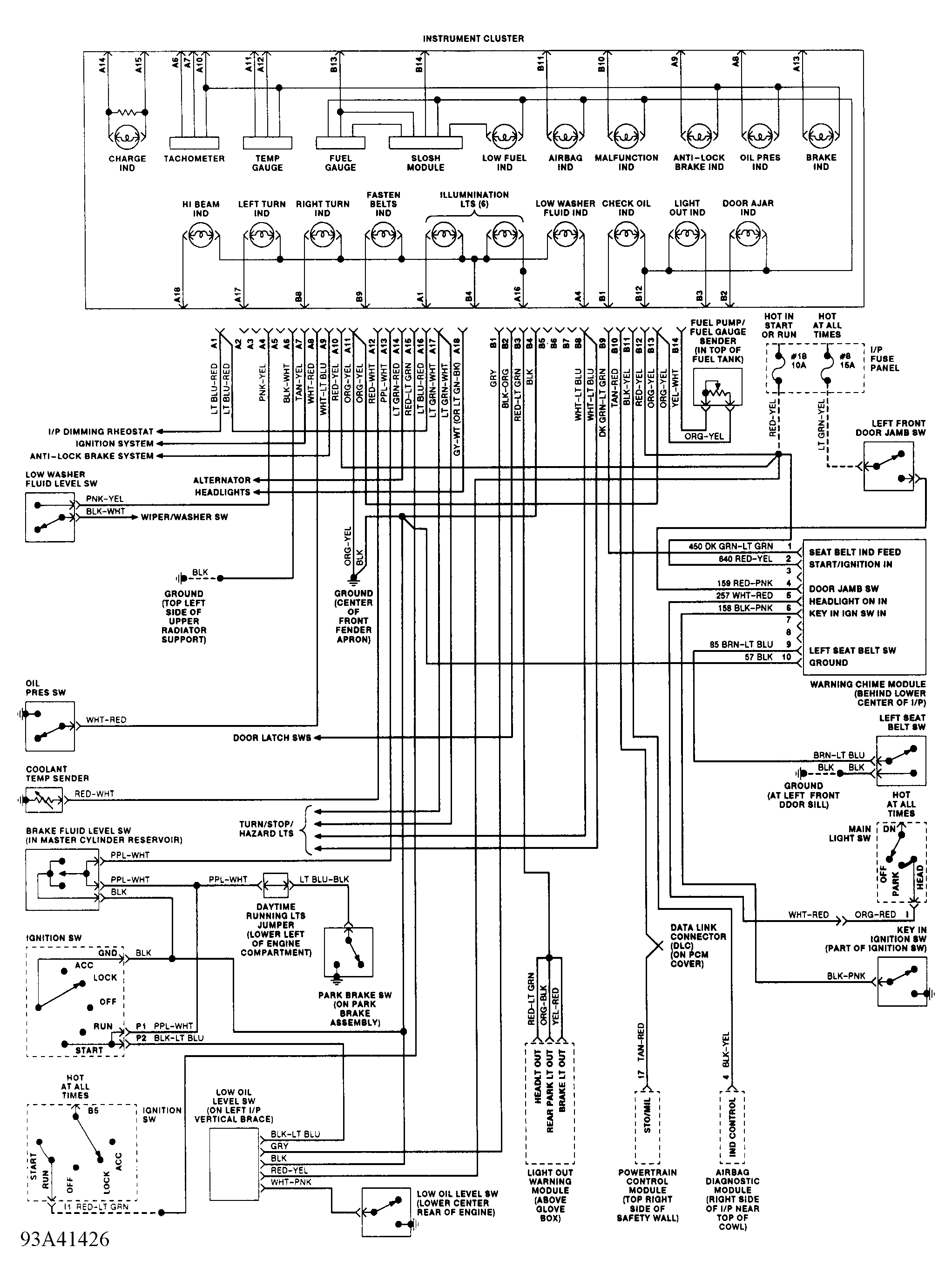

Fig 20: Analog Instruments Schematic (Sable & Taurus - Except SHO)

G93A41426

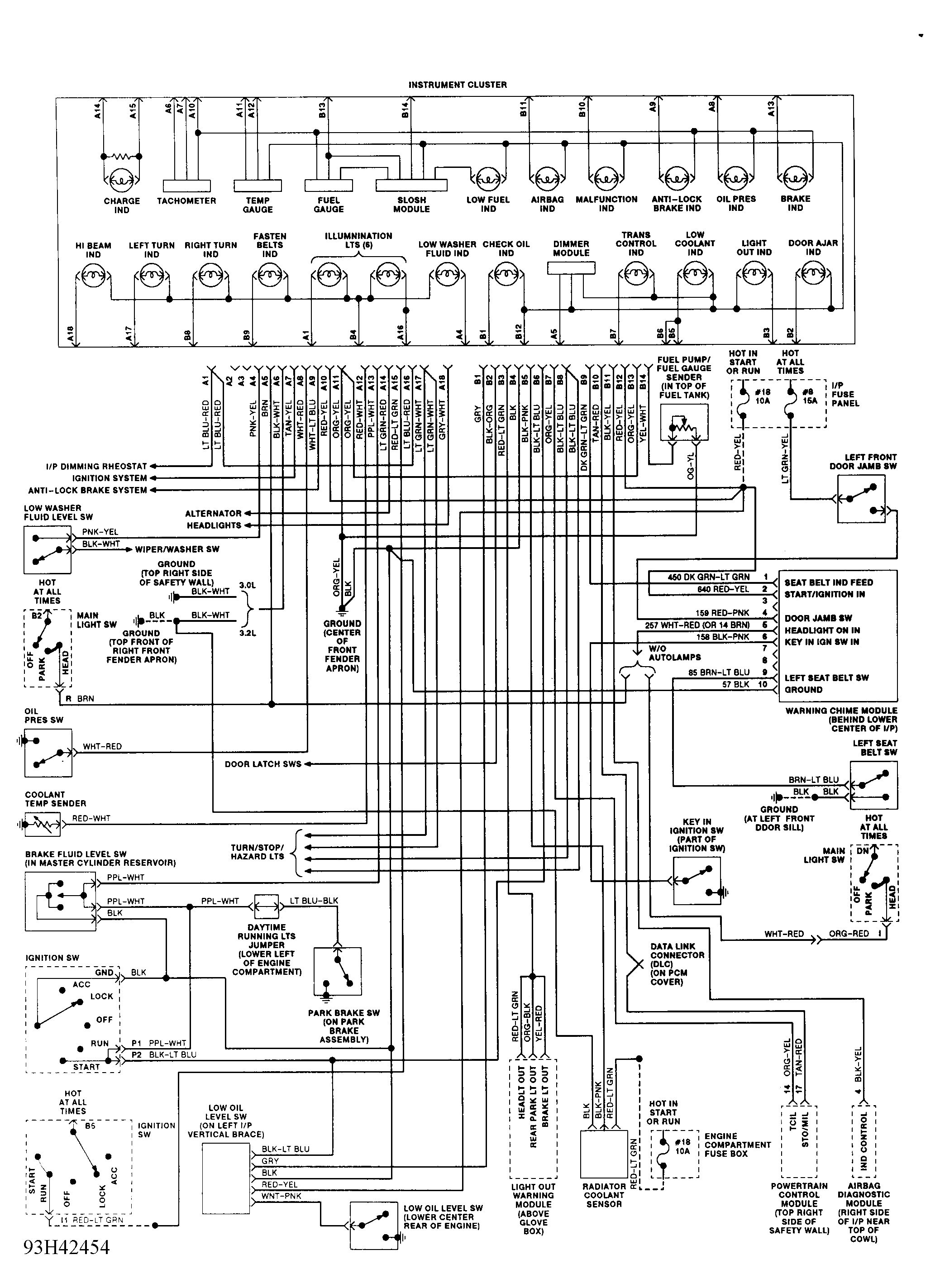

Fig 21: Analog Instruments Schematic (Taurus SHO)

G93H42454

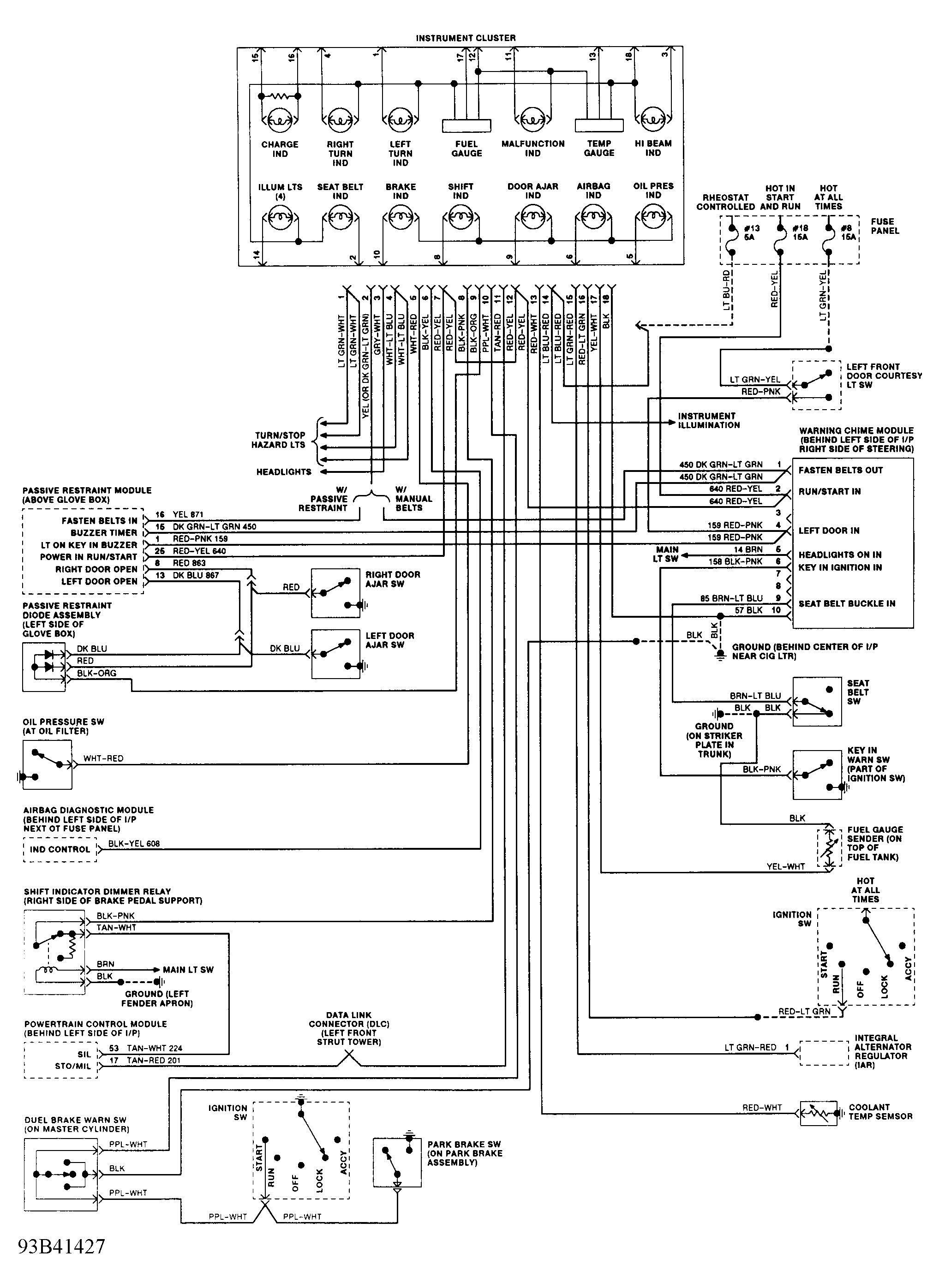

Fig 22: Analog Instruments Schematic (Tempo & Topaz Standard Cluster)

G93B41427

Fig 23: Analog Instruments Schematic (Tempo & Topaz Sport Cluster)

G93I42455
