Headlight Switch R & I: Installation

To install, reverse removal procedure.

Fig 1: Removing Headlight Knob (Crown Victoria, Grand Marquis & Town Car)

Courtesy of FORD MOTOR CO.

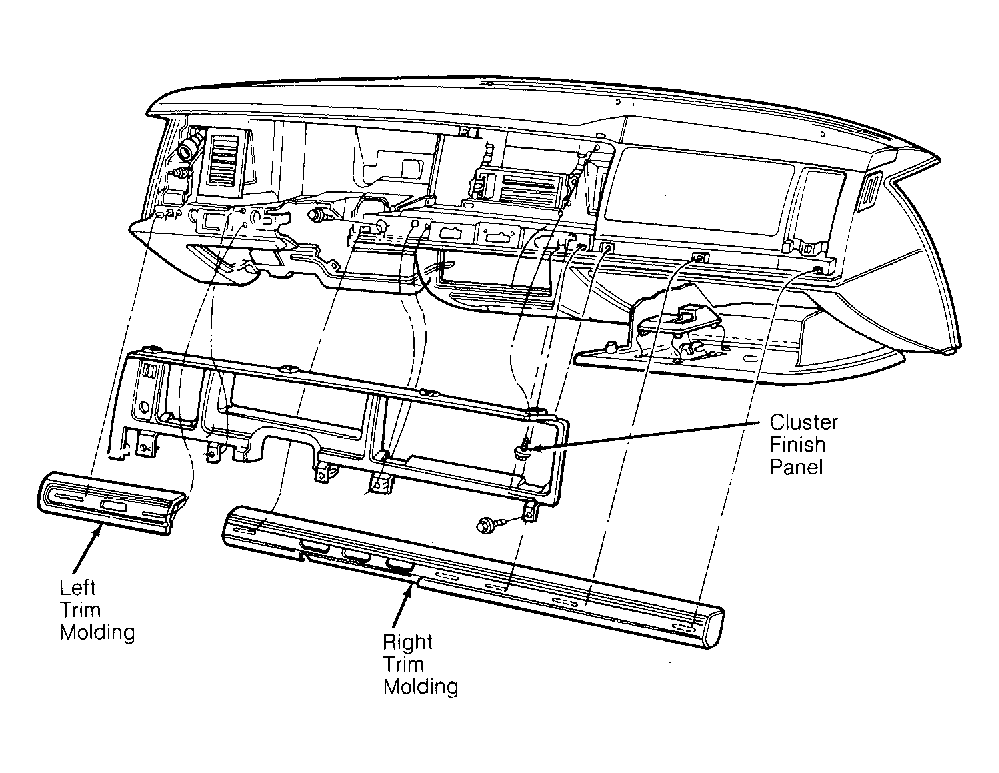

Fig 2: Removing Cluster Finish Panel (Crown Victoria, Grand Marquis & Town Car)

Courtesy of FORD MOTOR CO.

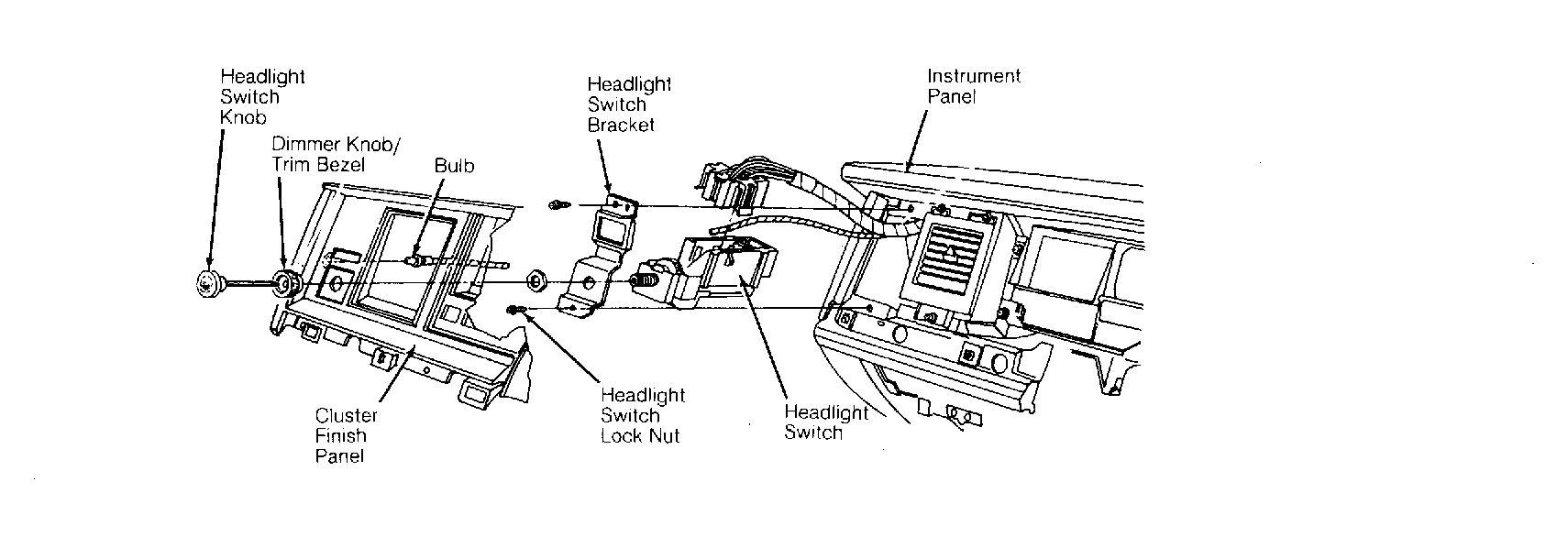

Fig 3: Removing Headlight Switch (Crown Victoria, Grand Marquis & Town Car)

Courtesy of FORD MOTOR CO.

Reconnect switch harness. Position switch into rear of panel opening. Align tang on switch face with slot in panel. Install switch retaining bezel. Push knob and shaft assembly inward until it clicks into place. Install fuse block, air vent control handle, and negative battery cable.
