Single CARDAN Universal Joint: Disassembly

Remove bearing cup locks or snap rings. Press out bearing cups using arbor press or vise and supporting tools. Remove universal joint assembly from yoke. See Fig 1 . DO NOT  remove seal retainers from cross.

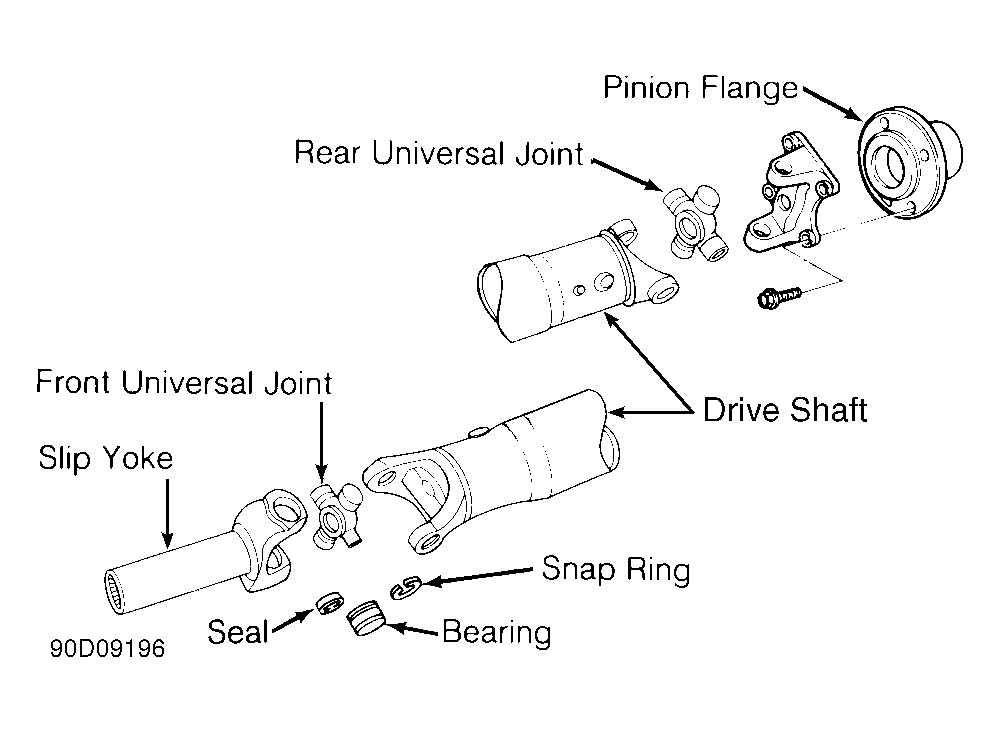

Fig 1: Single Cardan Universal Joint & Drive Shaft Components
G90D09196Courtesy of FORD MOTOR CO.
