Differential - Positive Traction: Overhaul: Disassembly

  1. Remove ring gear-to-differential case assembly bolts. Mark ring gear-to-differential case position for reassembly reference. Tap ring gear with soft-faced hammer until removed from case.

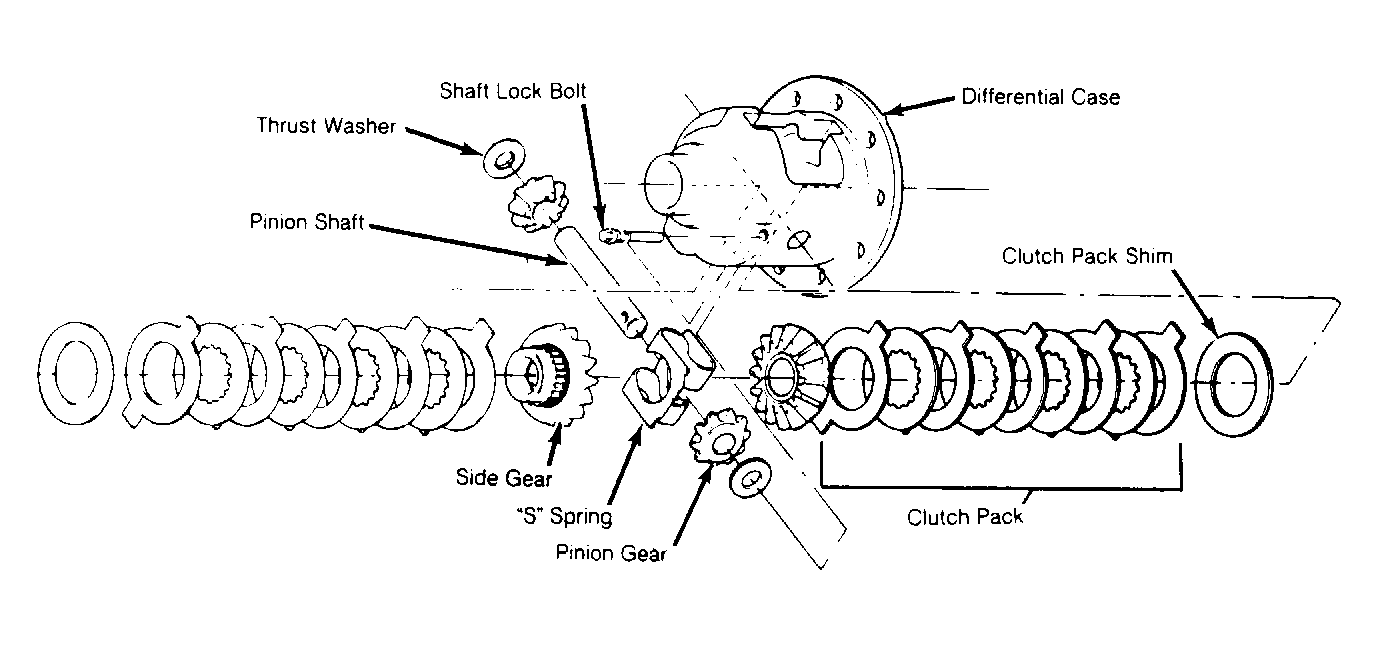

  2. Remove differential pinion shaft lock bolt and pinion shaft. Using suitable drift, drive "S" spring partially out of differential. See Figure . Rotate differential case 180 degrees.
  3. Grip "S" spring with pliers and remove from differential case. Rotate pinion gears within differential case with Differential Gear Rotator (T84P-4205-A for 7.5" ring gear, T80P-4205-A for 8.8" ring gear).
  4. Remove pinion gears and thrust washers. Remove side gears, clutch plates and shims from both cavities and label them for reassembly reference.
