Parking Brake (Shoe & Lining Assembly): Installation

1. Install lower return springs and actuating lever to brake shoe assemblies. Ensure boot is properly positioned in backing plate and install shoe assemblies by first inserting lever through boot lowering shoes into position.
2. Install upper return (adjuster) spring. Install adjuster assembly. Install brake shoe retaining springs and pins. Connect brake cable to lever.
3. Install axle shaft assembly. Center brake shoes on backing plate and using an 8 inch micrometer, gauge brake shoes to dimensions shown in Fig 1 .

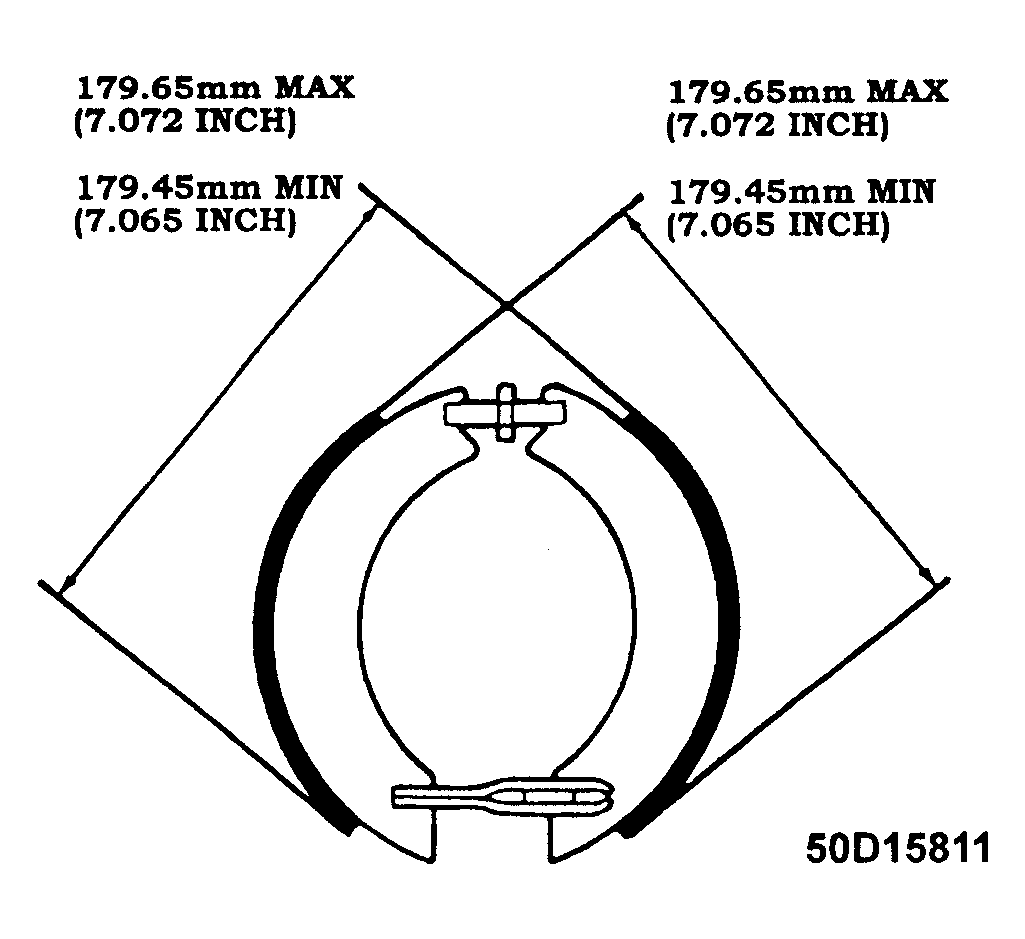

Fig 1: Brake Shoe Dimensions

Courtesy of FORD MOTOR CO.
