Pinion Angle Adjustment

  1. If pinion angle is not as specified, install new upper control arm bushings equipped with adjustment cams. See UPPER CONTROL ARMS under REMOVAL & INSTALLATION.
  2. Eccentric cam in upper control arm can be rotated to change pinion angle. See Fig 1. If cam is rusty, tap using drift to remove rust so cam will rotate.

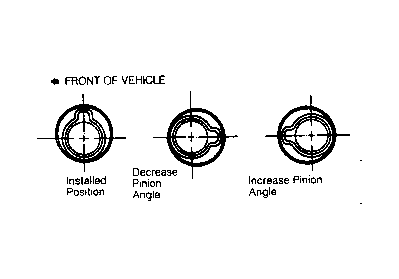

Fig 1: Adjusting Pinion Angle
G56442Courtesy of FORD MOTOR CO.
