Wiring Diagrams - Cougar & THUNDERBIRD

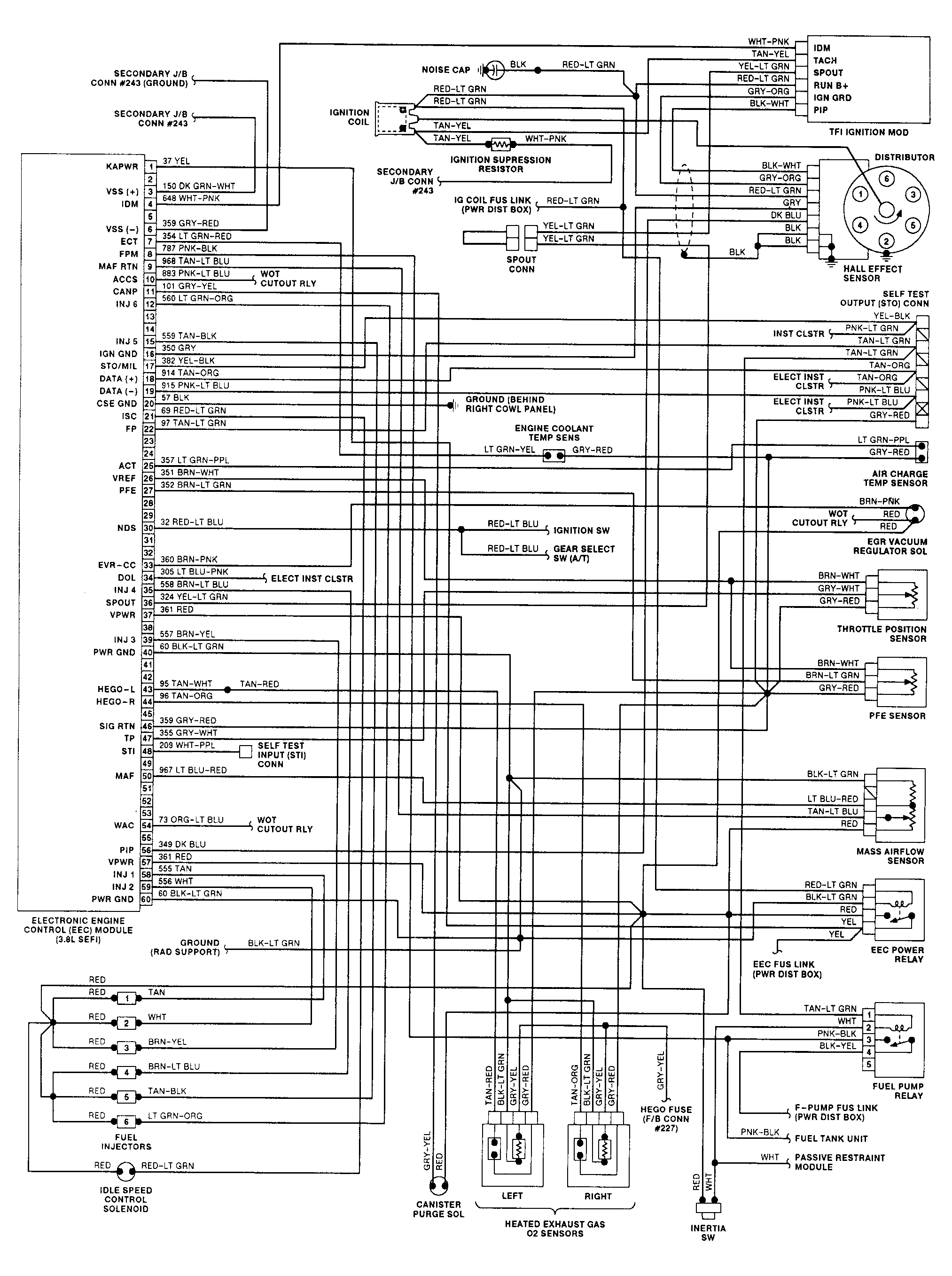

Fig 1: EEC-IV Wiring Diagram (Cougar/Thunderbird 3.8L Except SC)

G92D04698

Fig 2: EEC-IV Wiring Diagram (Cougar & Thunderbird - 5.0L)

G92E04707
