1992 Wiring Diagram

For additional information, see appropriate chassis wiring diagram in the WIRING DIAGRAMS Section.

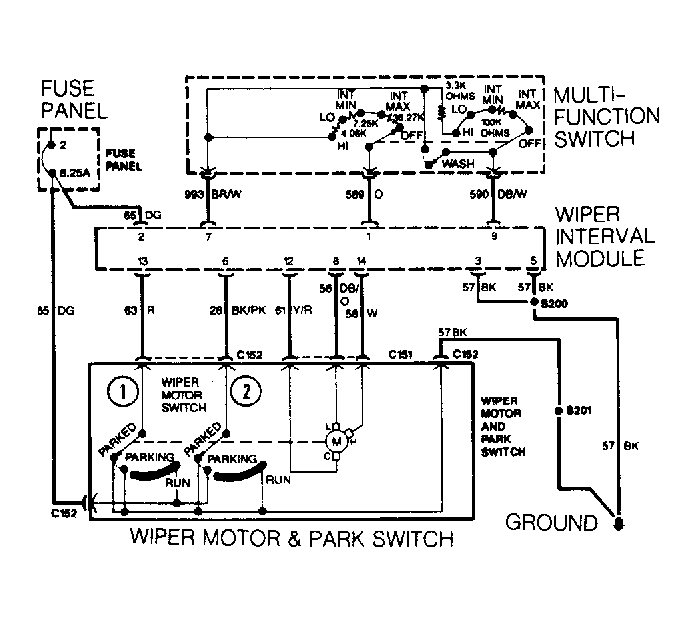

Fig 1: 1992 - Wiper System Wiring Diagram
G91J09321Courtesy of FORD MOTOR CO.
