Power Seat Wiring Diagrams

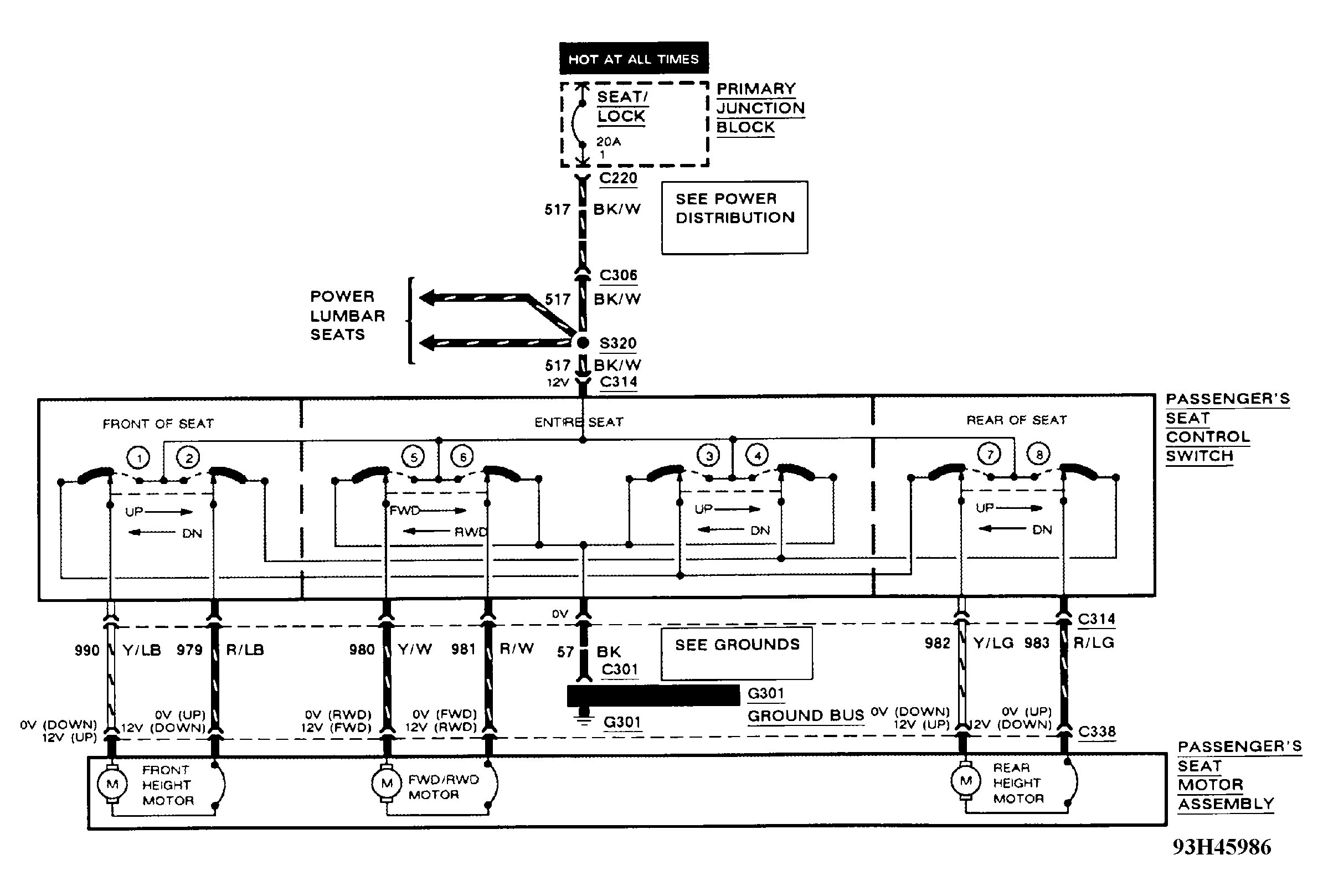

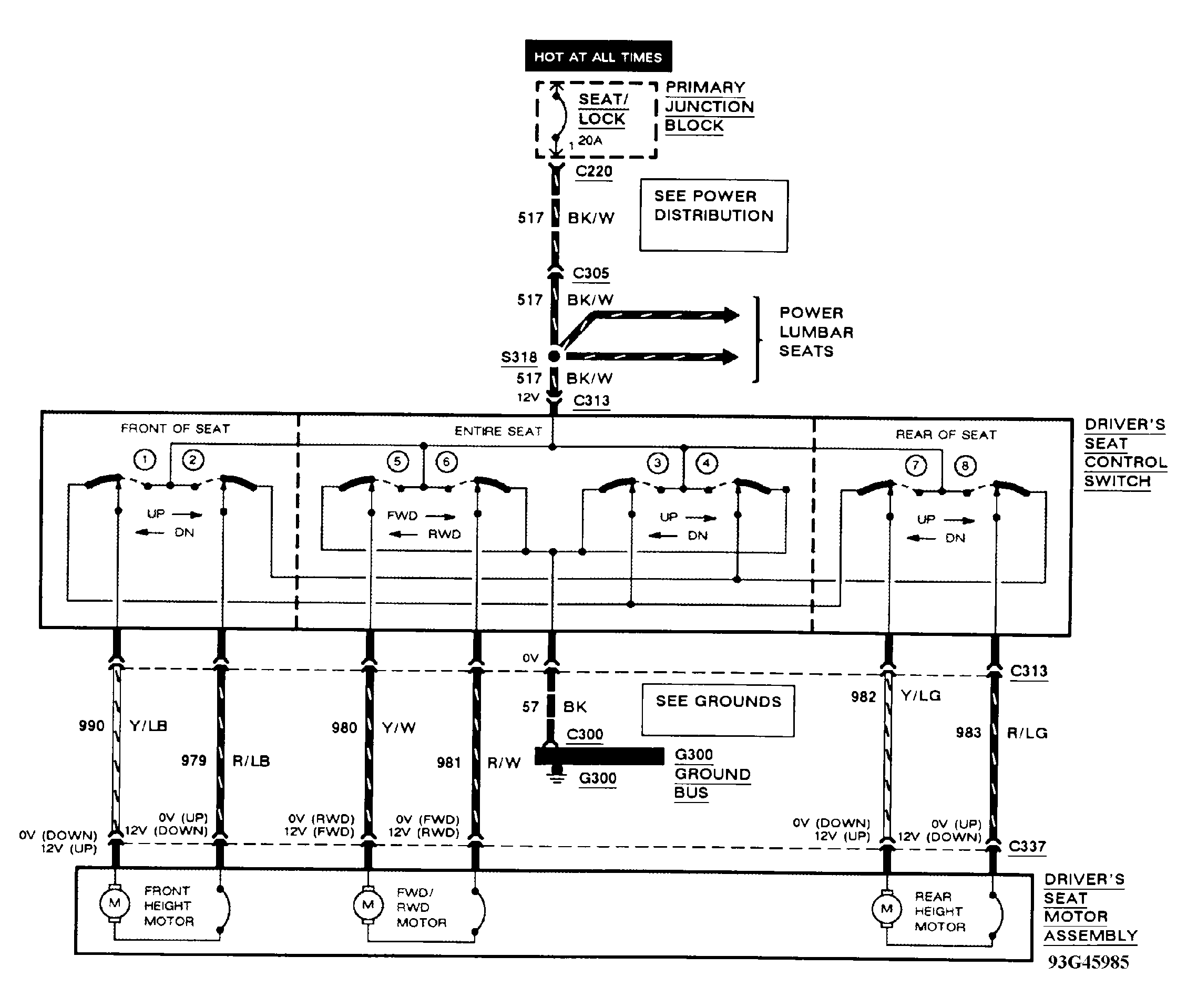

Fig 1: Wiring Diagram (Cougar & Thunderbird - 1 Of 2)

Courtesy of FORD MOTOR CO.

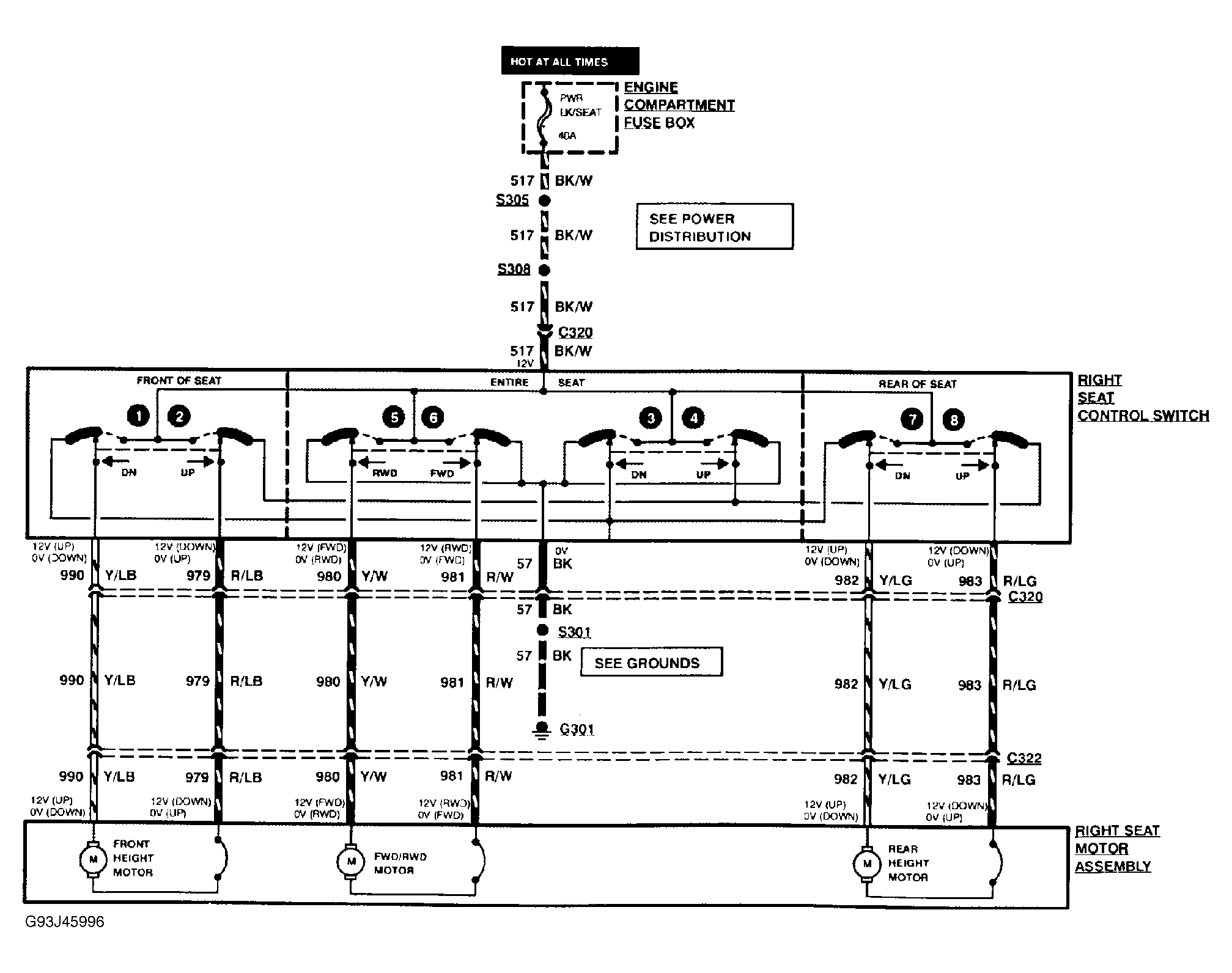

Fig 2: Wiring Diagram (Cougar & Thunderbird - 2 Of 2)

Courtesy of FORD MOTOR CO.

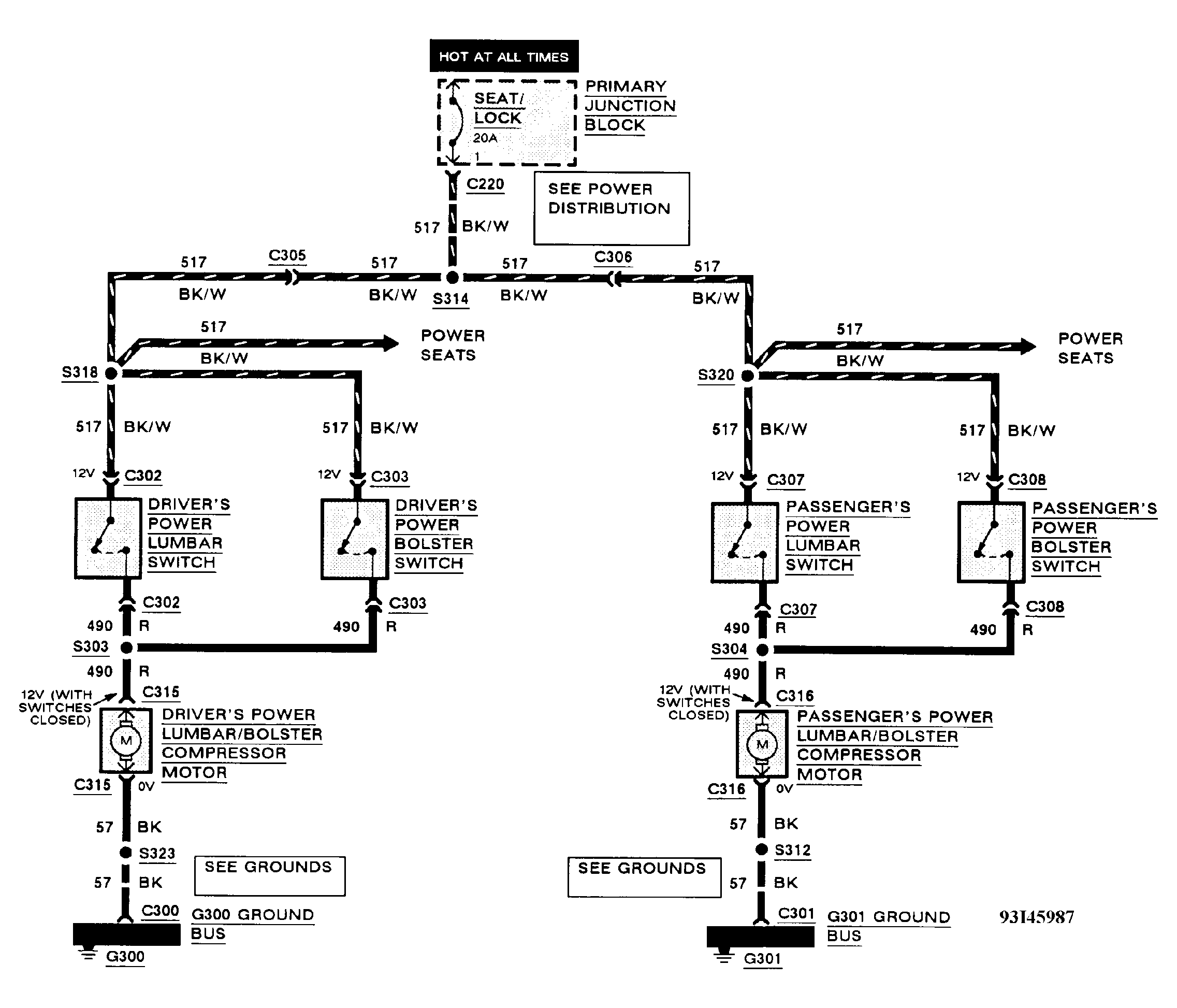

Fig 3: Lumbar/Bolster Seat Wiring Diagram (Cougar & Thunderbird)

Courtesy of FORD MOTOR CO.

Fig 4: Wiring Diagram (Crown Victoria & Grand Marquis - 1 Of 4)

Courtesy of FORD MOTOR CO.

Fig 5: Wiring Diagram (Crown Victoria & Grand Marquis - 2 Of 4)

Courtesy of FORD MOTOR CO.

Fig 6: Wiring Diagram (Crown Victoria & Grand Marquis - 3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 7: Wiring Diagram (Crown Victoria & Grand Marquis - 4 Of 4)

Courtesy of FORD MOTOR CO.

Fig 8: Lumbar Seat Wiring Diagram (Crown Victoria & Grand Marquis)

Courtesy of FORD MOTOR CO.

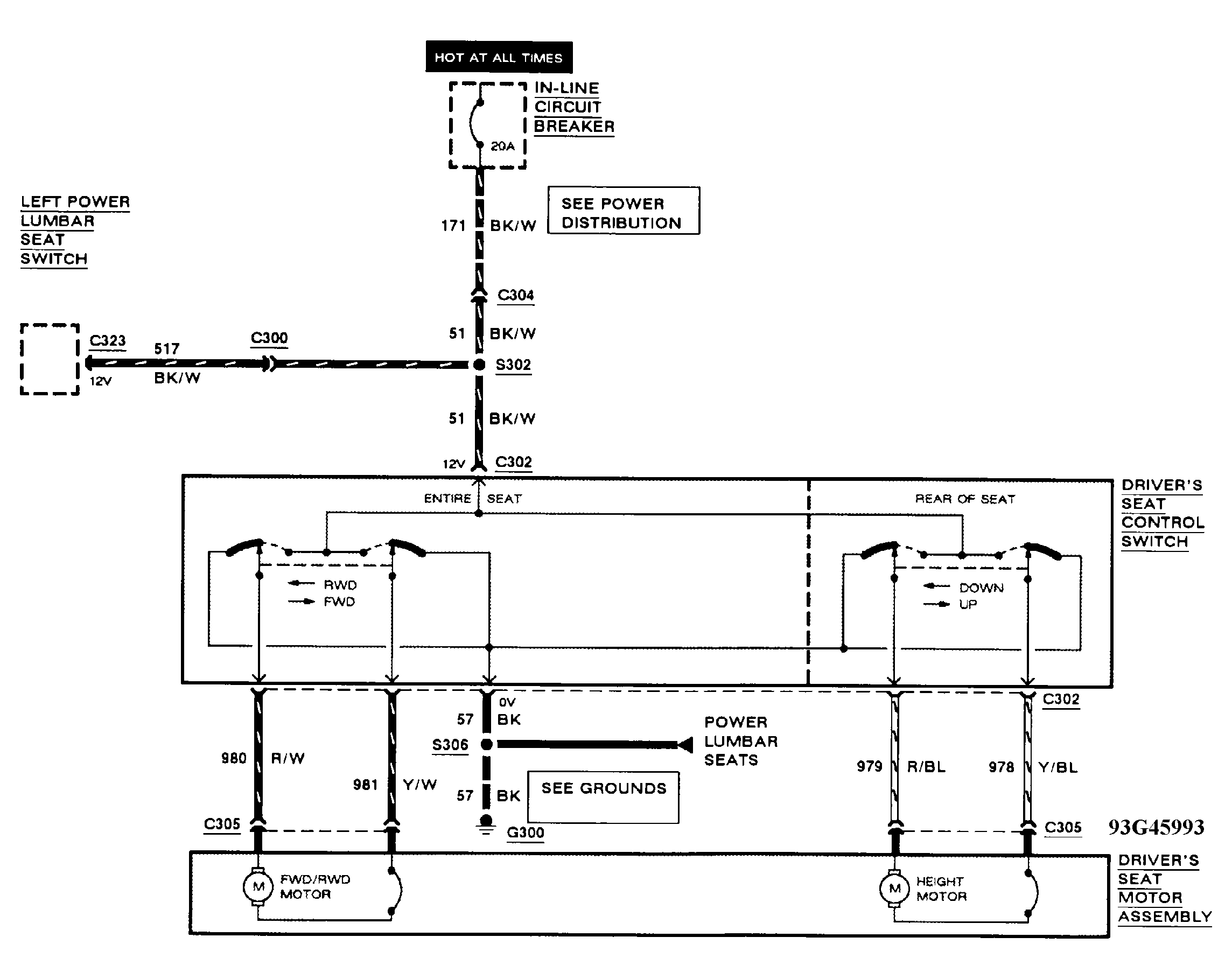

Fig 9: Wiring Diagram (Mustang)

Courtesy of FORD MOTOR CO.

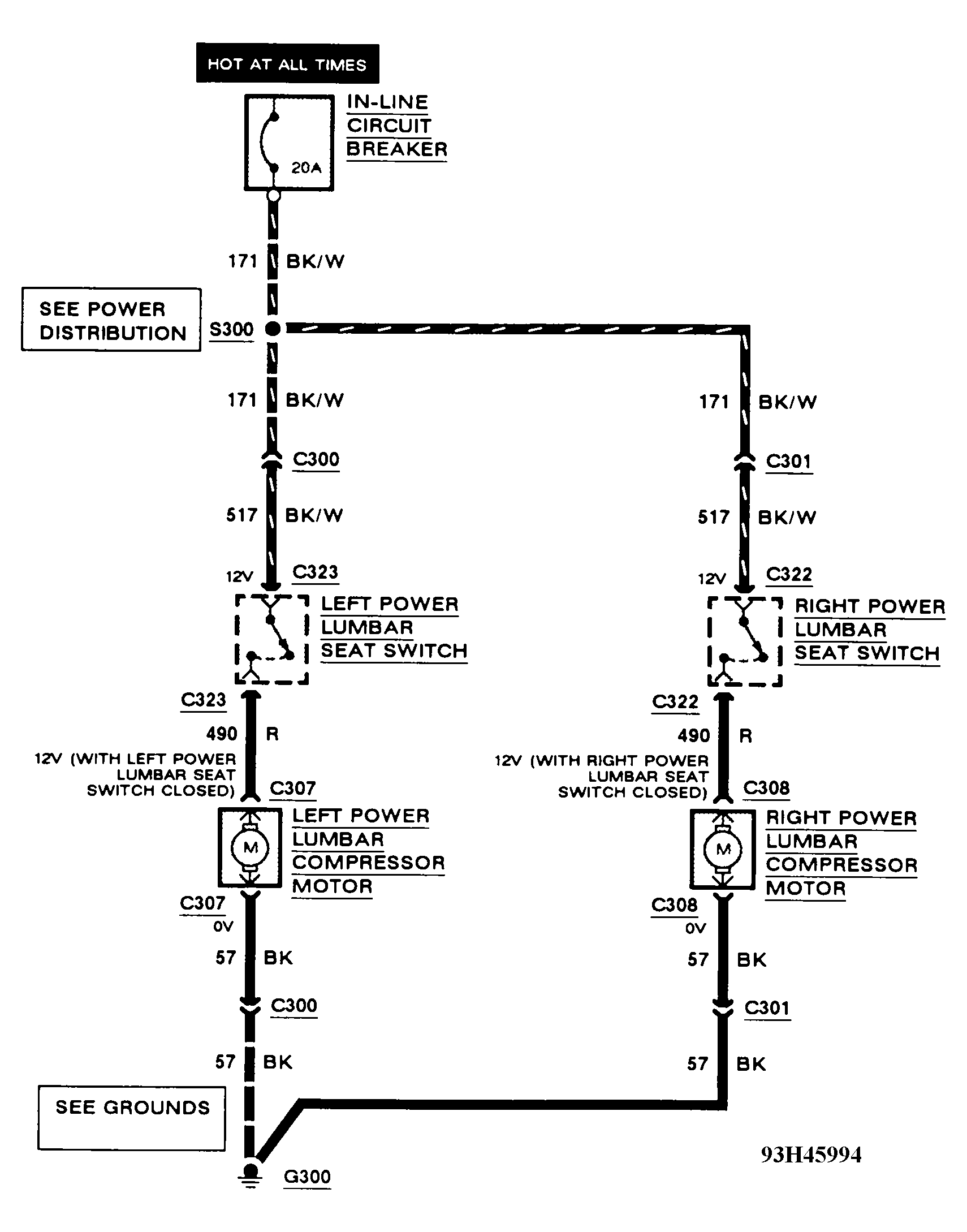

Fig 10: Lumbar Seat Wiring Diagram (Mustang)

Courtesy of FORD MOTOR CO.

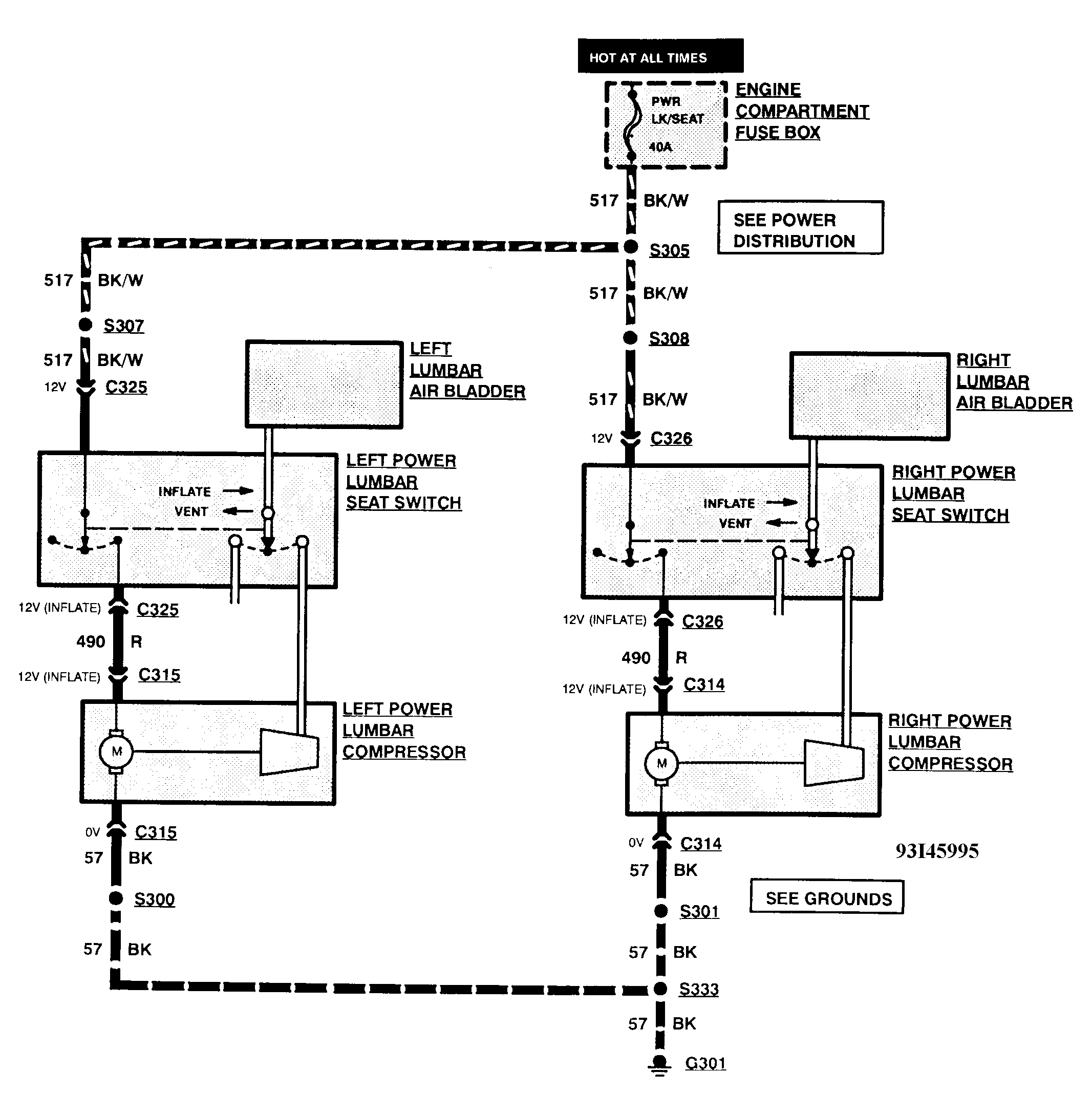

Fig 11: Lumbar Seat Wiring Diagram (Sable & Taurus)

Courtesy of FORD MOTOR CO.

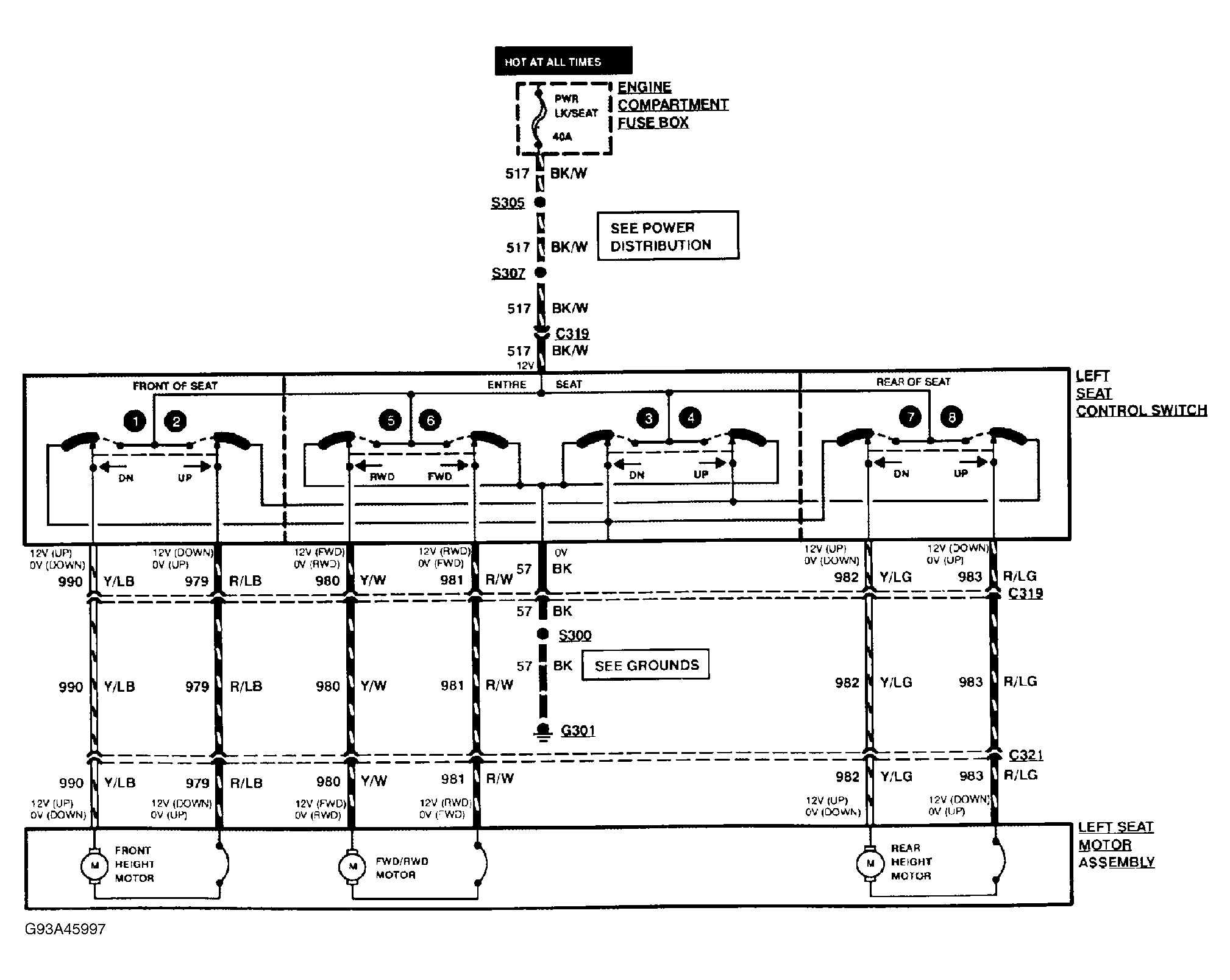

Fig 12: Wiring Diagram (Sable & Taurus - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 13: Wiring Diagram (Sable & Taurus - 2 Of 2)

Courtesy of FORD MOTOR CO.

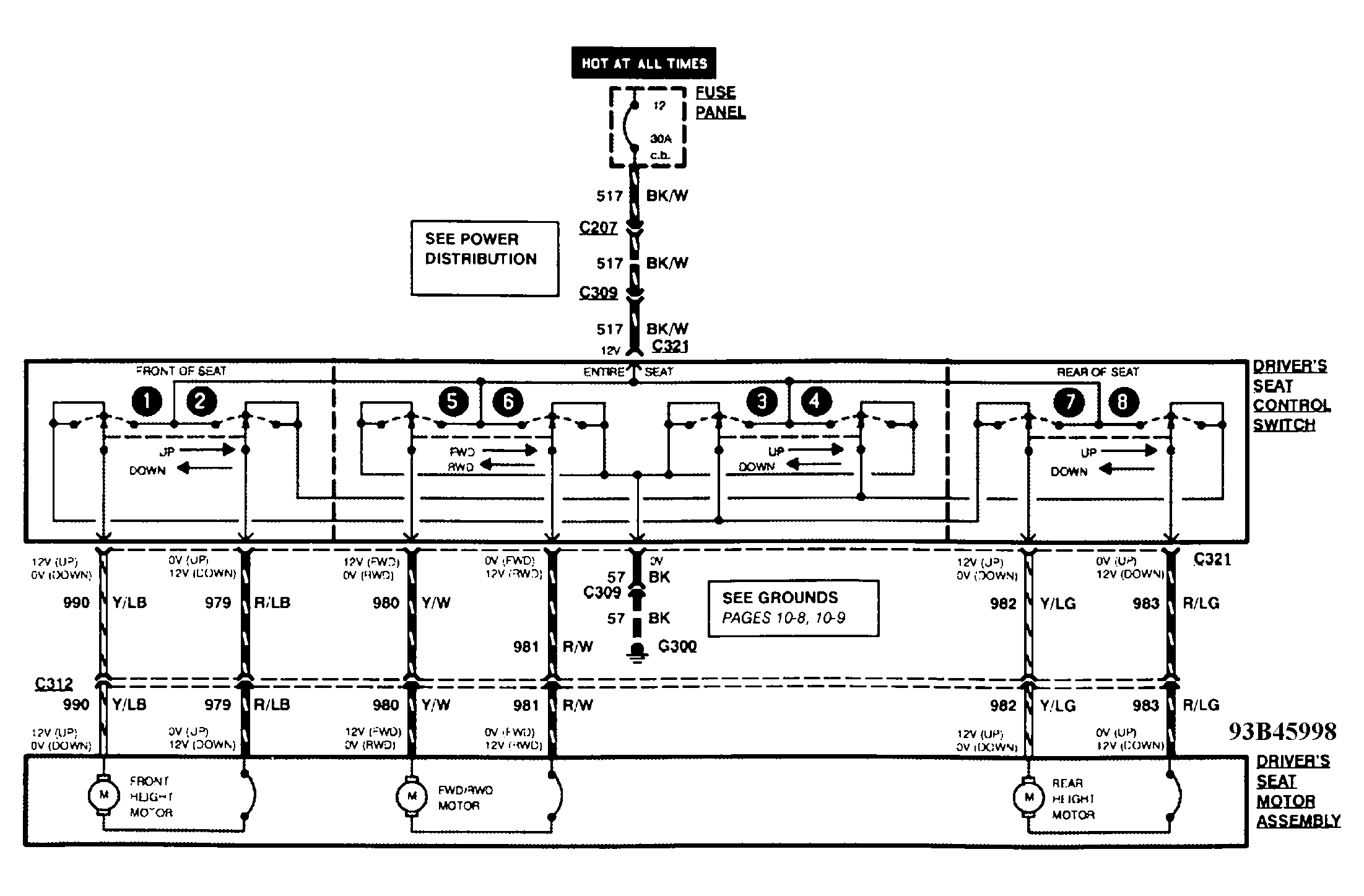

Fig 14: Wiring Diagram (Tempo & Topaz)

Courtesy of FORD MOTOR CO.

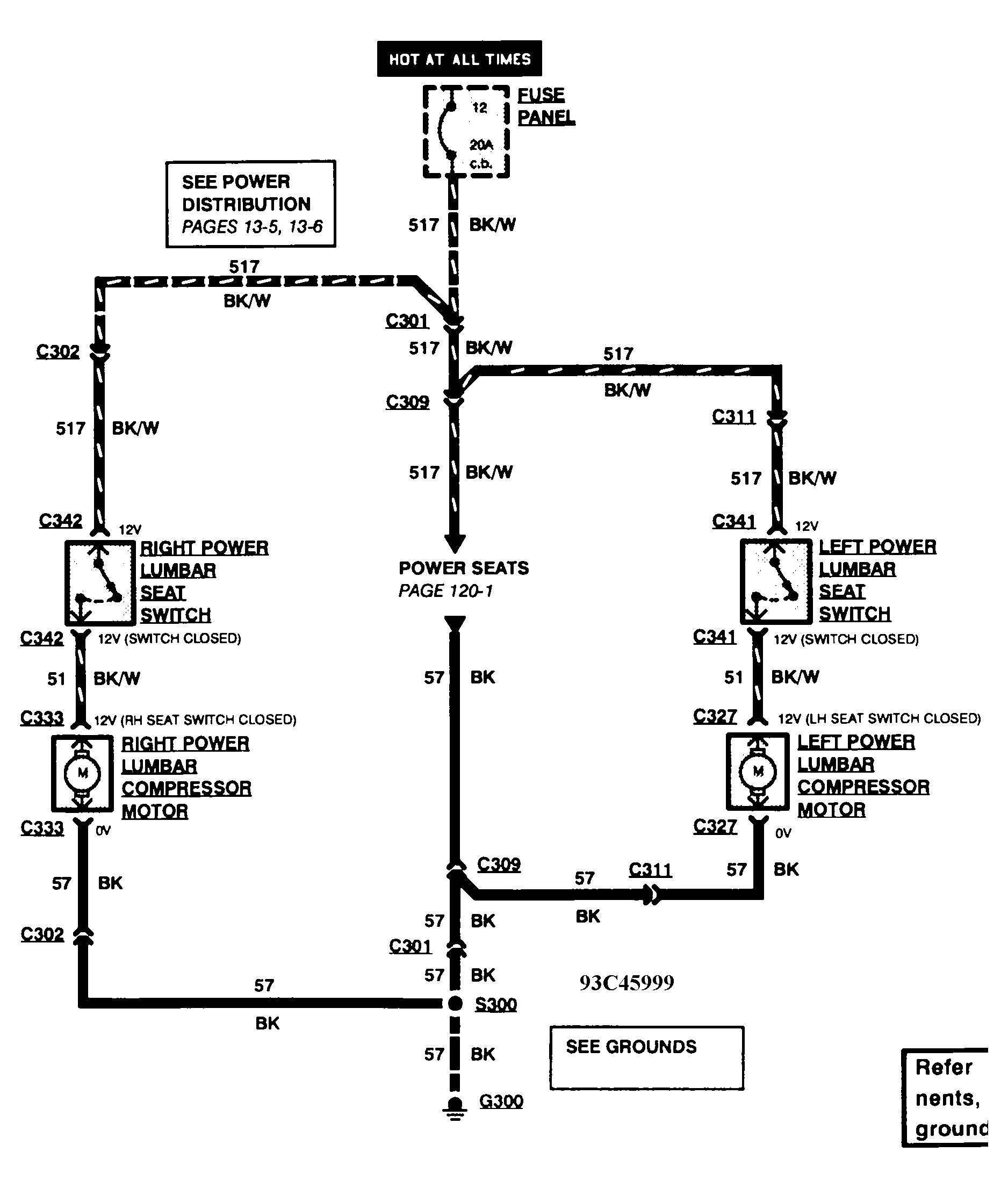

Fig 15: Lumbar Seat Wiring Diagram (Tempo & Topaz)

Courtesy of FORD MOTOR CO.
