Home >> Ford >> 1992 >> Crown Victoria Base, AOD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Heated Glass/Defoggers >> Windshield - Heated >> Wiring Diagrams >> Heated Windshield Wiring Schematic (Town Car)

Heated Windshield Wiring Schematic (Town Car)

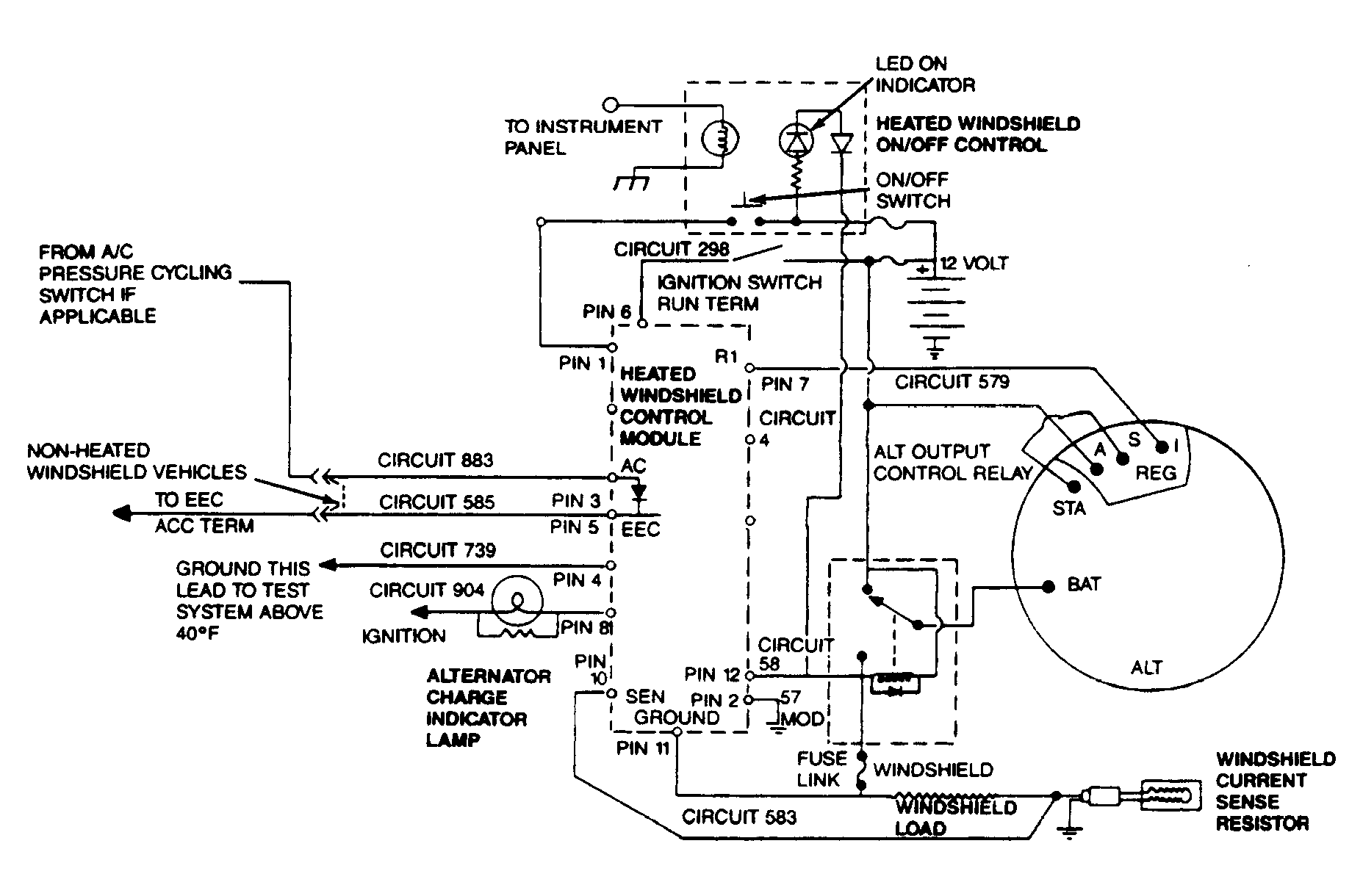

Fig 1: Heated Windshield Wiring Schematic (Town Car)

G91I11963

Courtesy of FORD MOTOR CO.
