Heated Windshield Wiring Schematic (Sable & TAURUS)

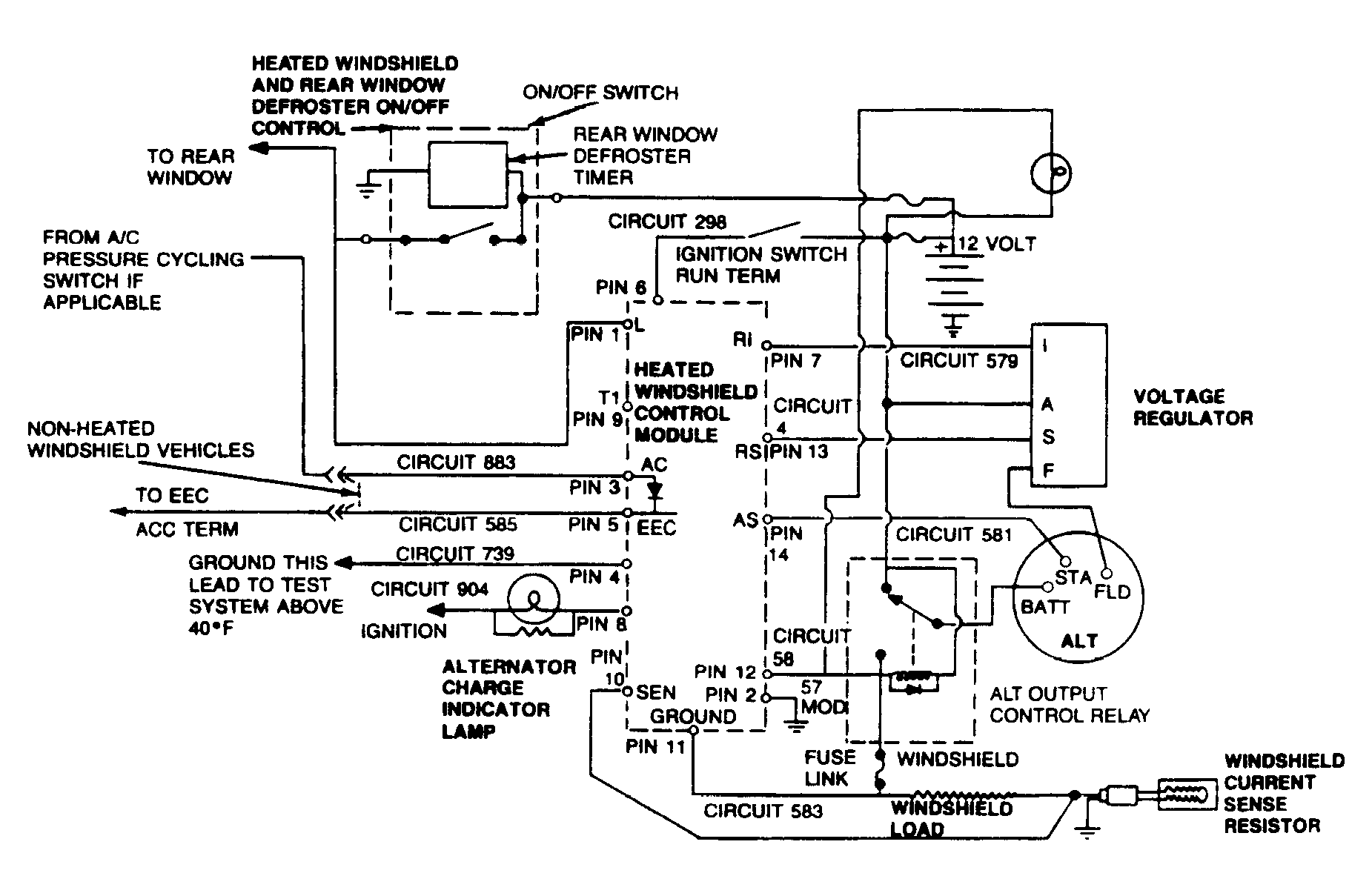

Fig 1: Heated Windshield Wiring Schematic (Sable & Taurus)

G91H11962

Courtesy of FORD MOTOR CO.
