Heated Windshield Wiring Schematic (Continental, Crown Victoria & Grand Marquis)

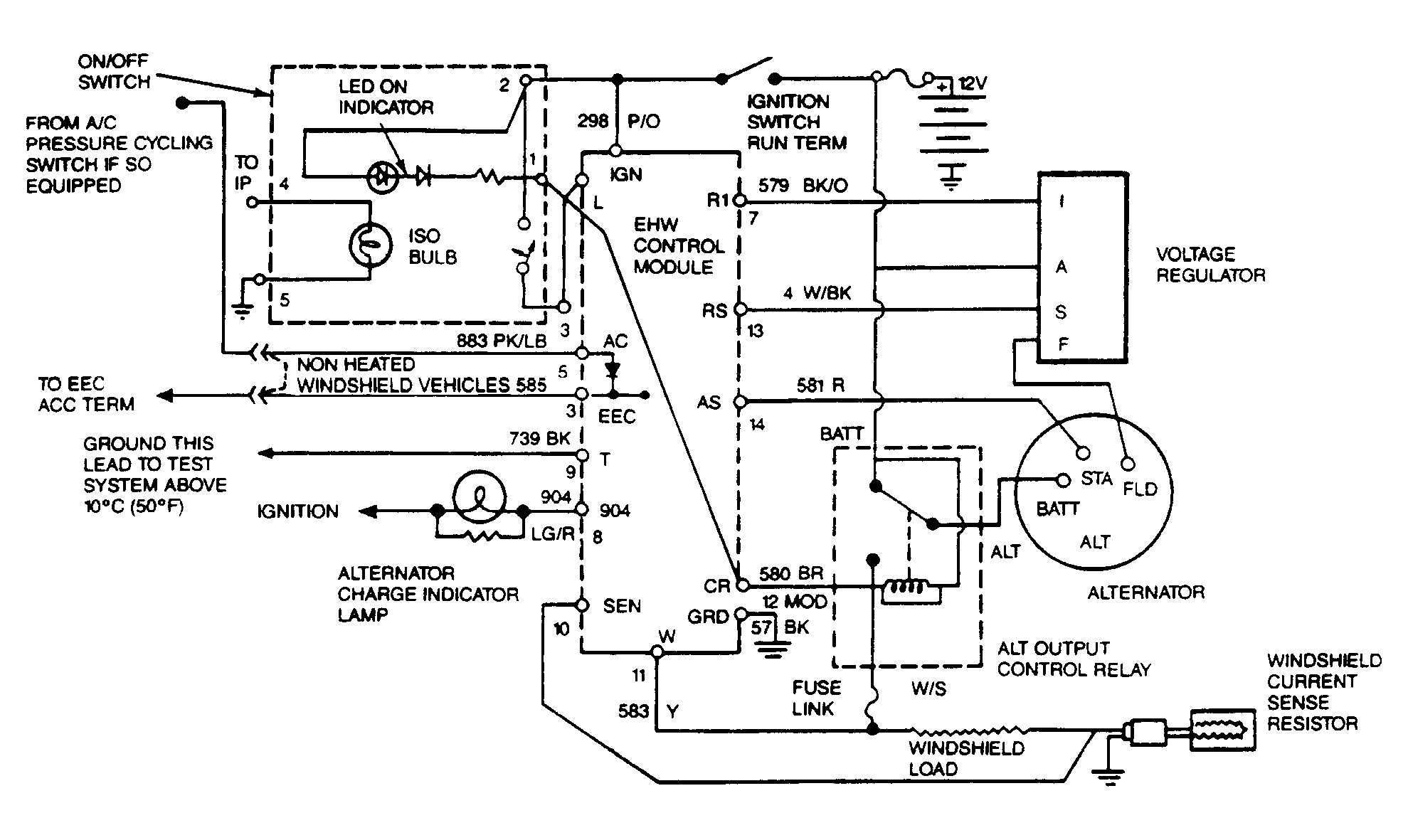

Fig 1: Heated Windshield Wiring Schematic (Continental, Crown Victoria & Grand Marquis)

G91G11961

Courtesy of FORD MOTOR CO.
