Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Charging System >> With Heated Windshield

With Heated Windshield

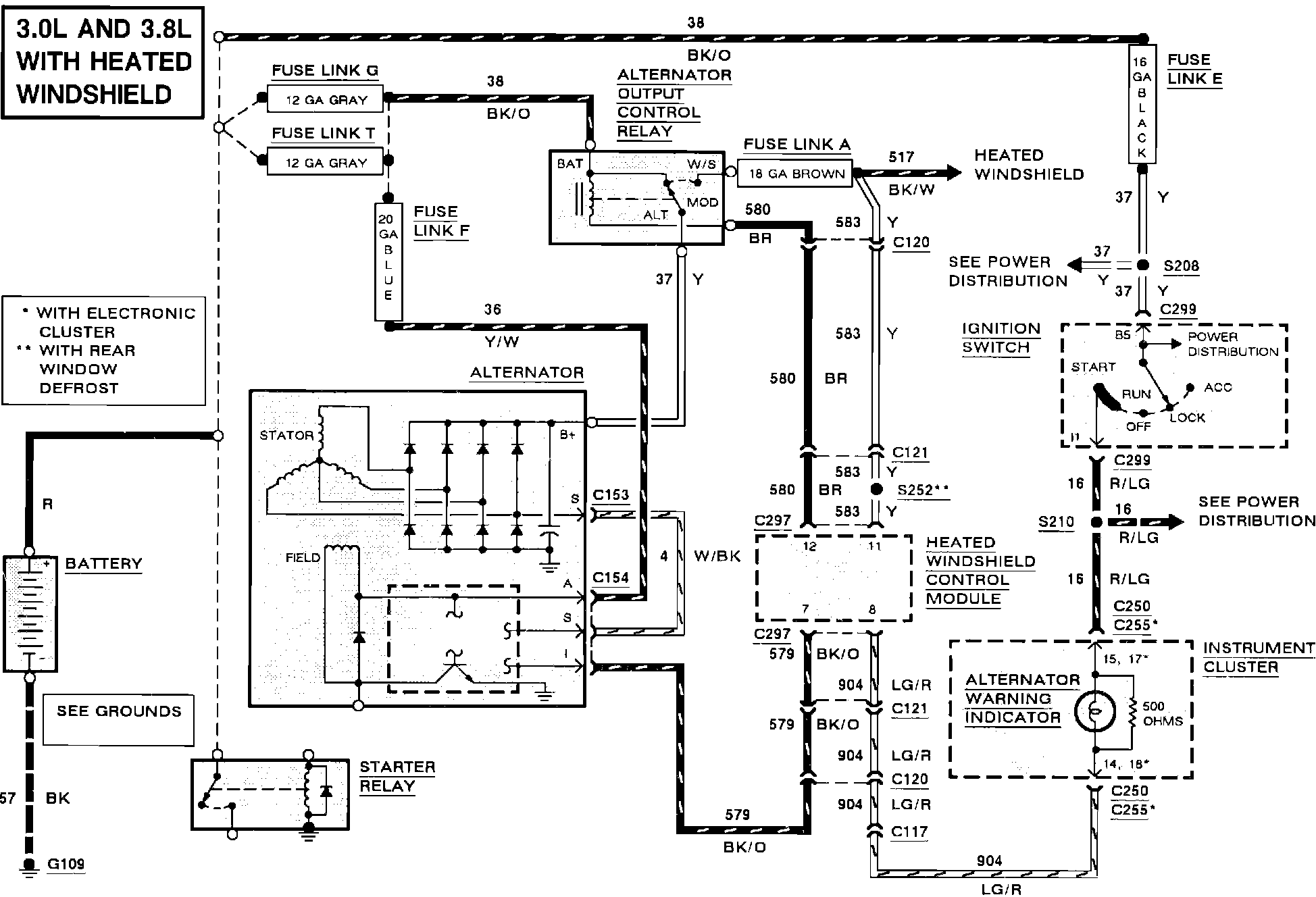

Charging System With Heated Windshield:
