1-10B-R10



The calibration code 1-10B-R10 shows both the GPJ and the GST systems, both labels are written in French and English.

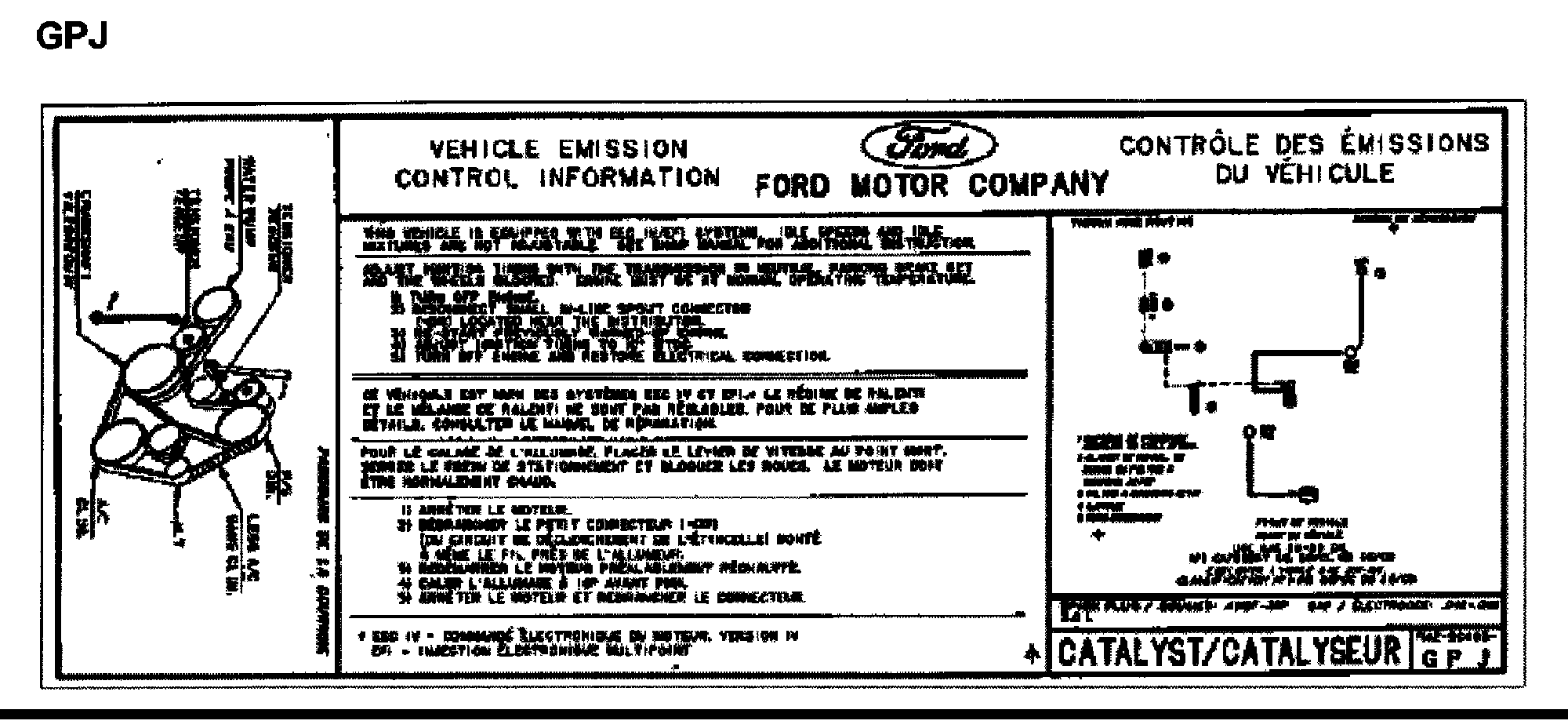

GPJ Underhood Sticker:

Vacuum Diagram:

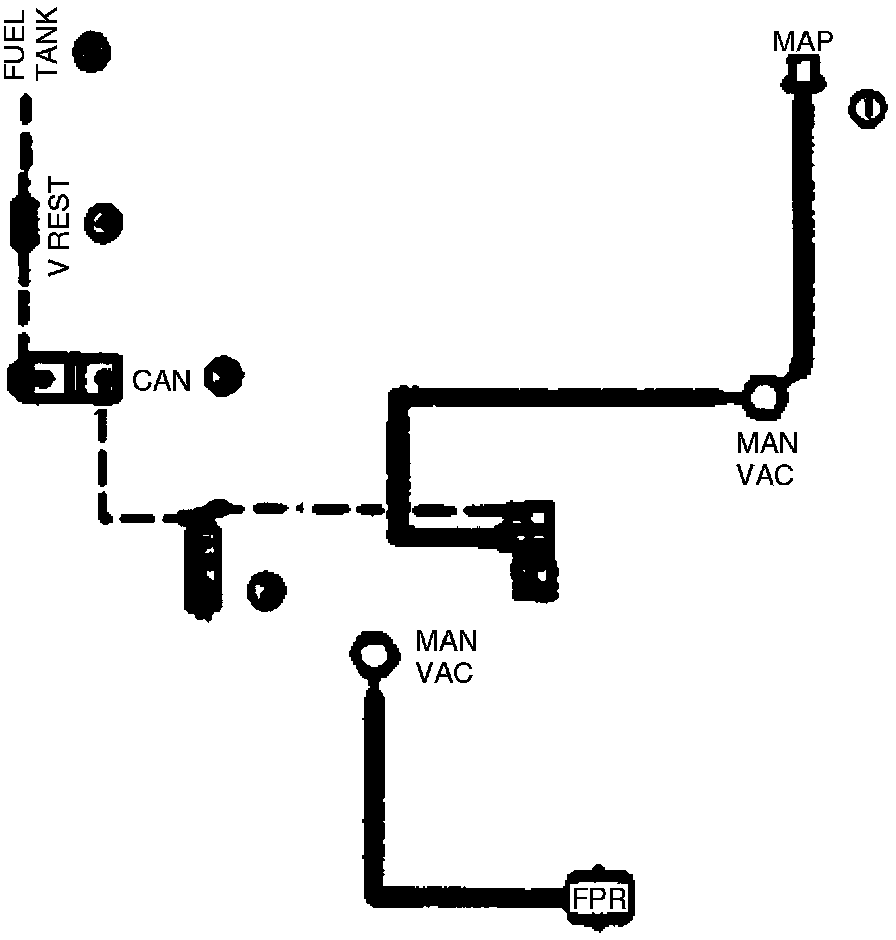

GPJ Vacuum diagram only:

The GST includes an EGR Valve.

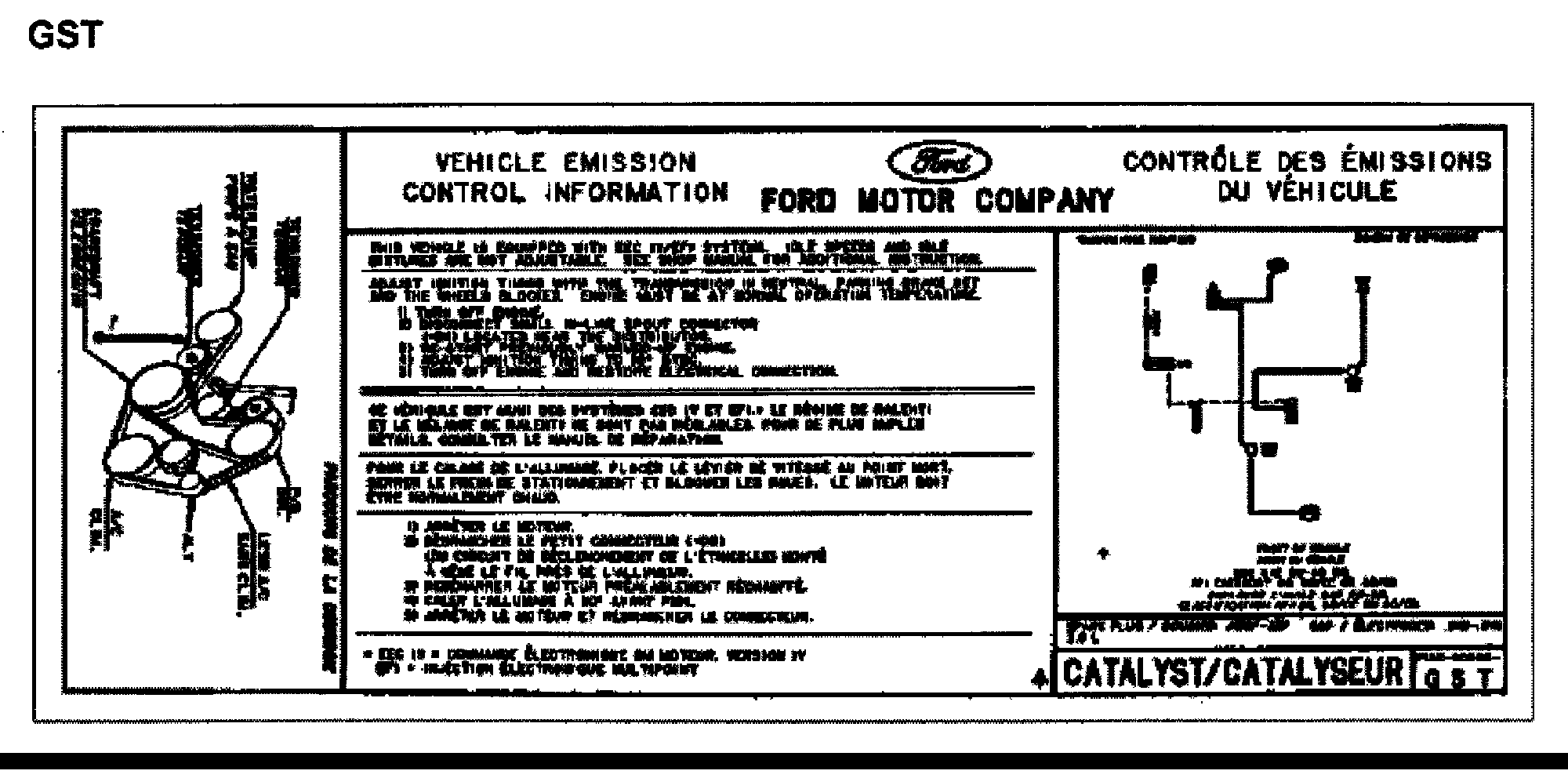

GST Underhood Sticker:

Vacuum Diagram:

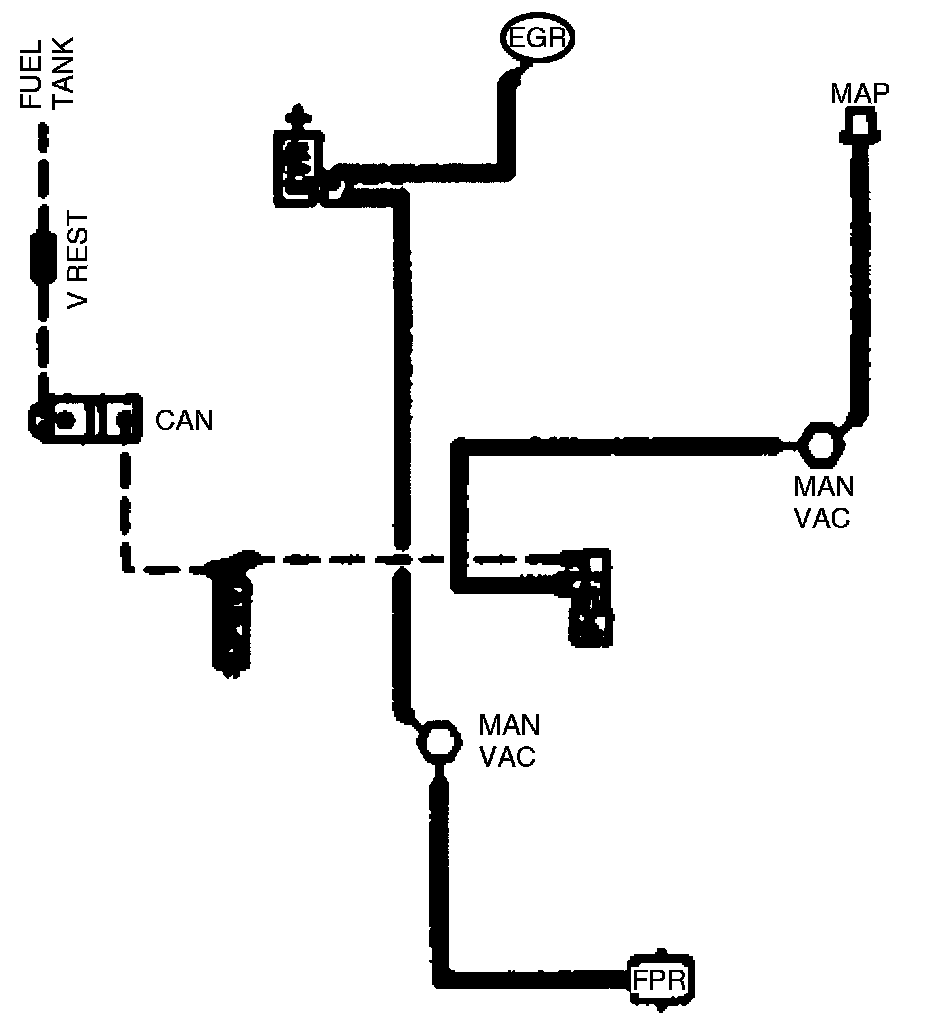

GST Vacuum diagram only:

For additional Vacuum Diagrams, refer to Vacuum Distribution. Vacuum Distribution
