1-10A-R05

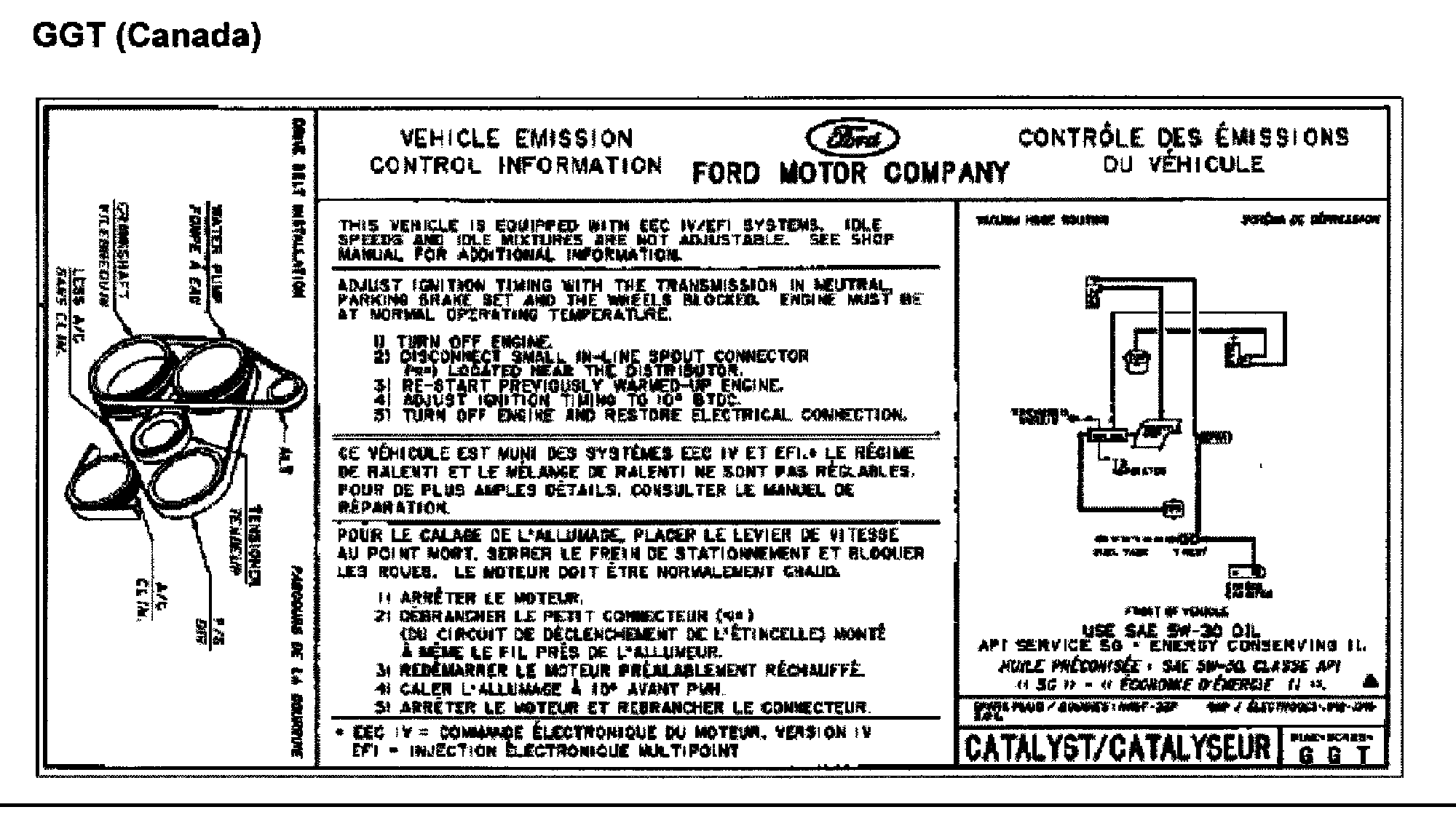

Underhood Sticker.

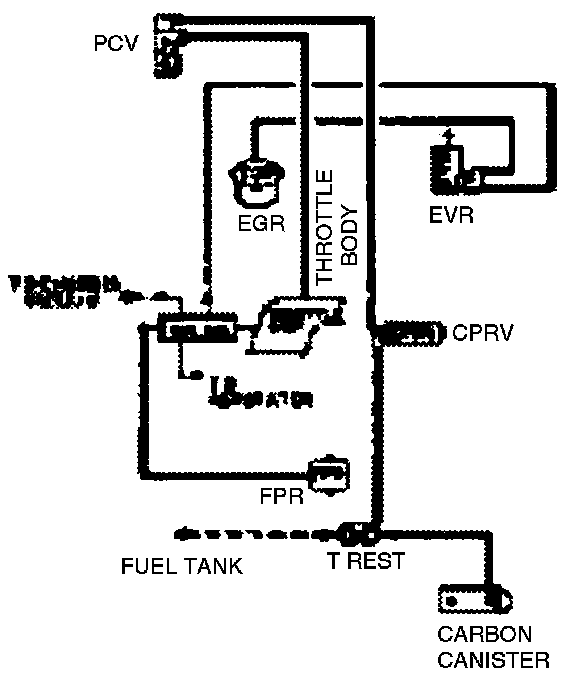

Vacuum diagram only.

These diagrams are not as clear as the underhood label. If underhood label is unavailable, refer to Vacuum Distribution. Vacuum Distribution
