1-10B-R10



The calibration code 1-10B-R10 shows both the GPH and the GSS systems that meet the US EPA regulations.

The GSS includes an EGR Valve.

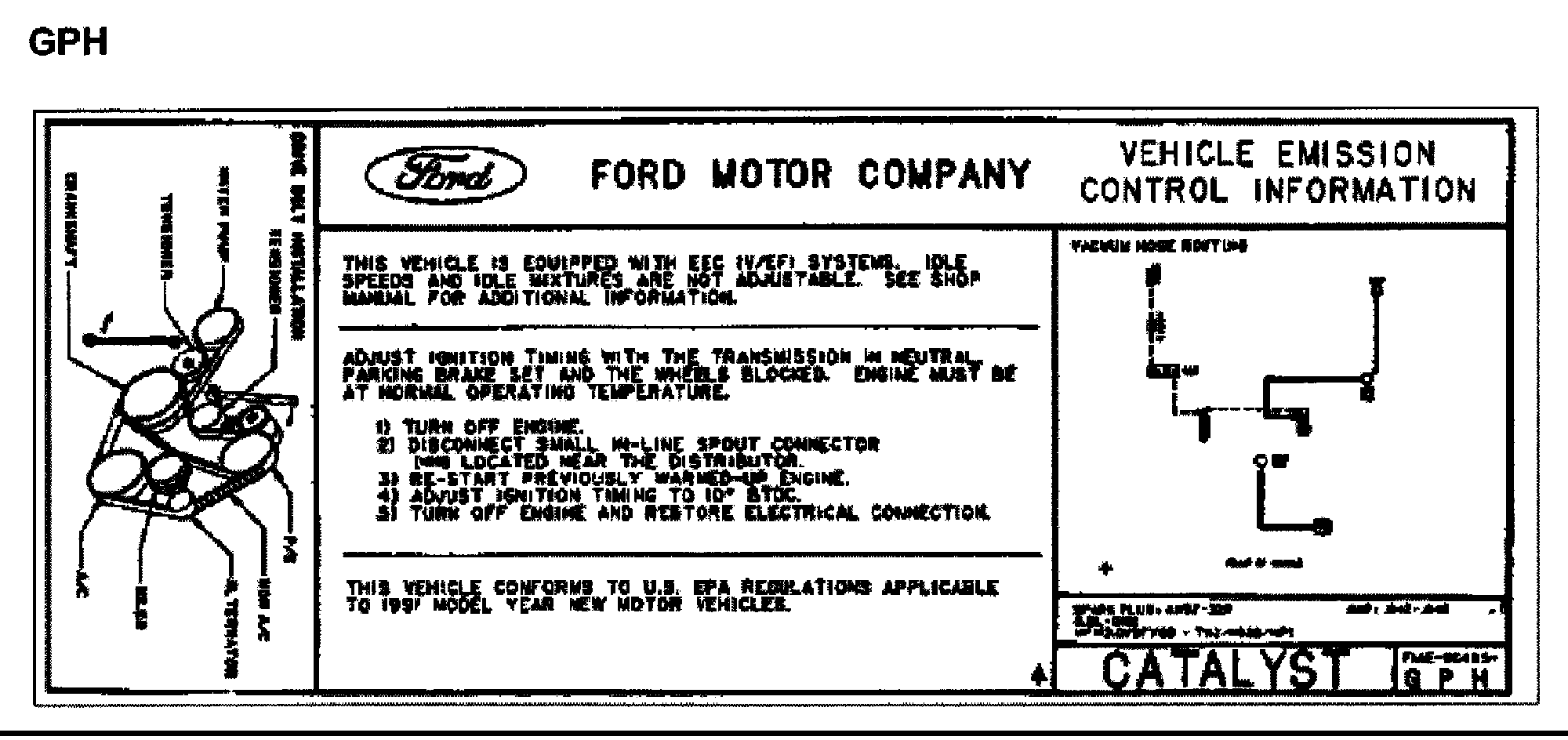

GPH Underhood Sticker:

Vacuum Diagram:

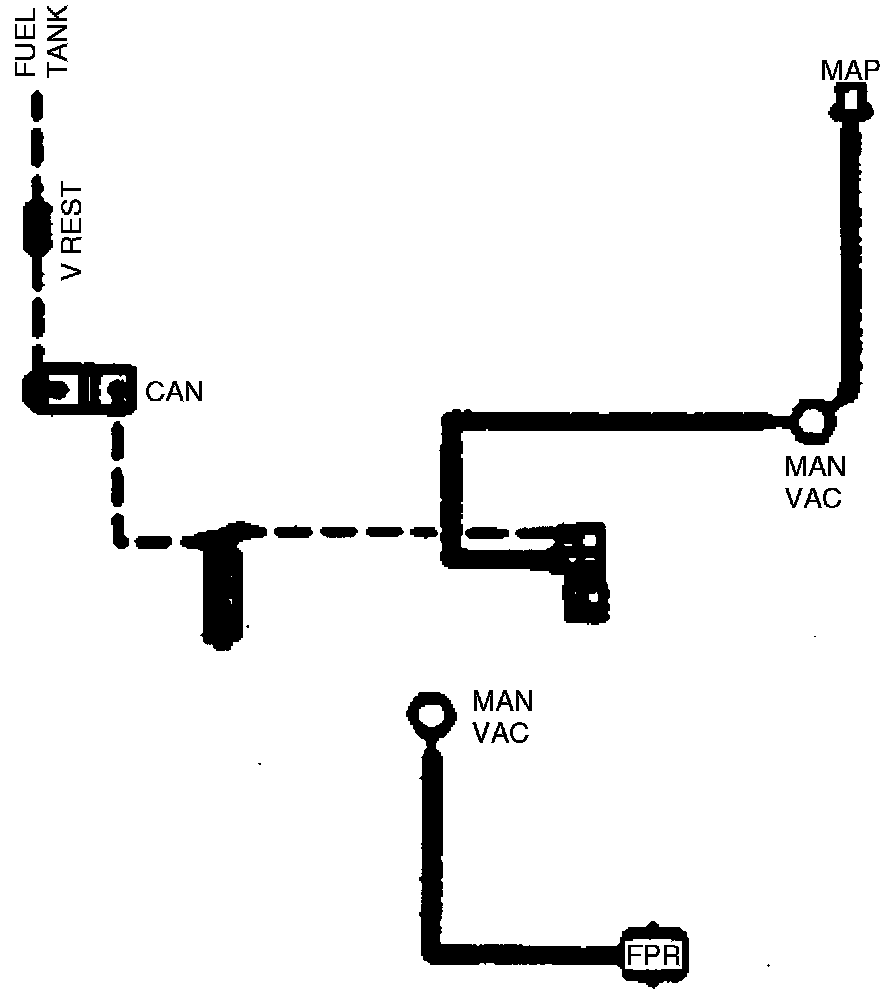

GPH Vacuum diagram only:

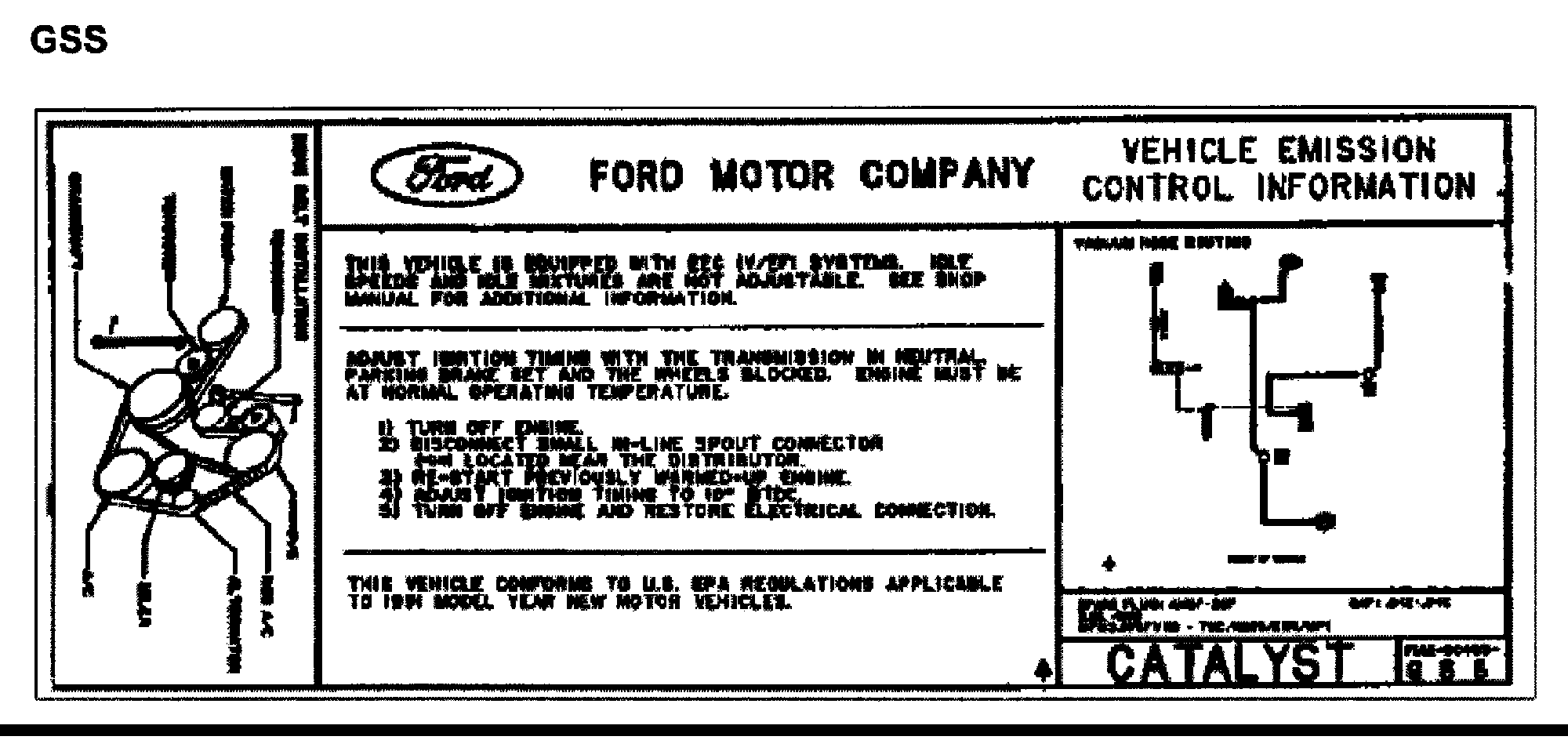

GSS Underhood Sticker:

Vacuum Diagram:

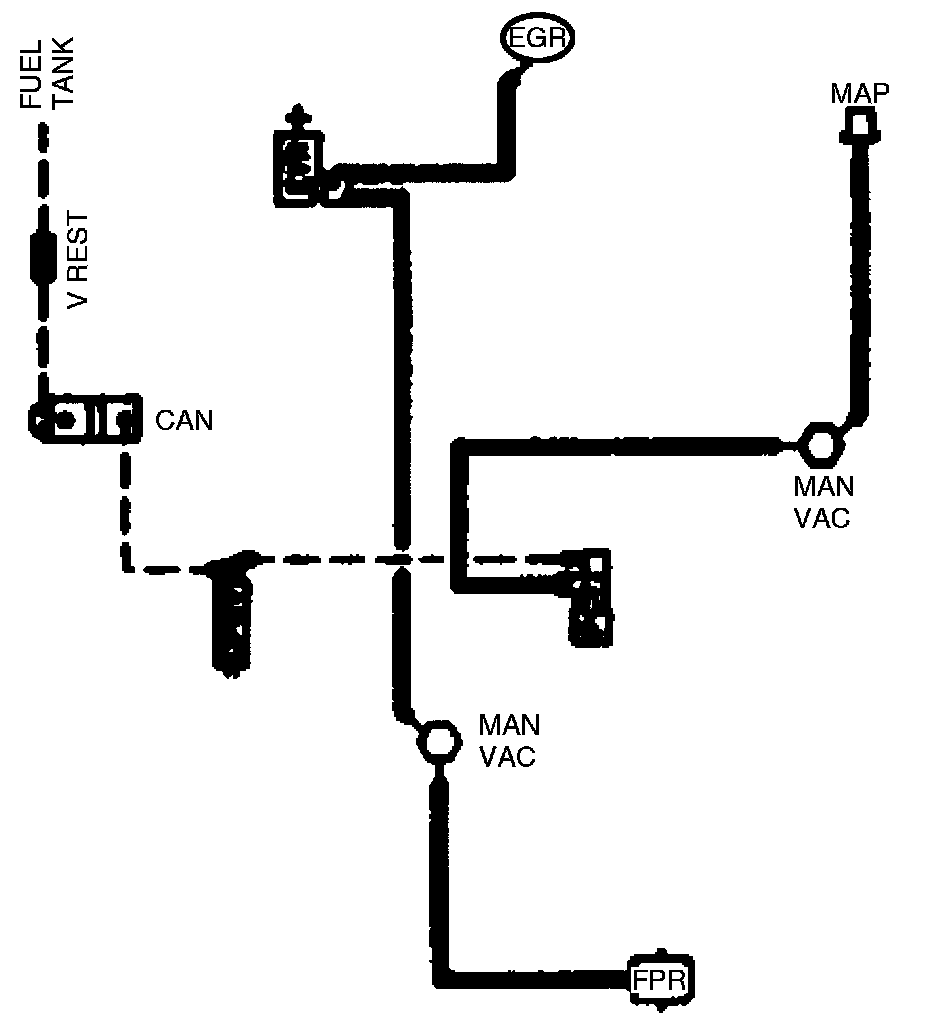

GSS Vacuum diagram only:

For additional Vacuum Diagrams, refer to Vacuum Distribution. Vacuum Distribution
