EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch
>>
EE8A to EE8B
EE8A to EE8B

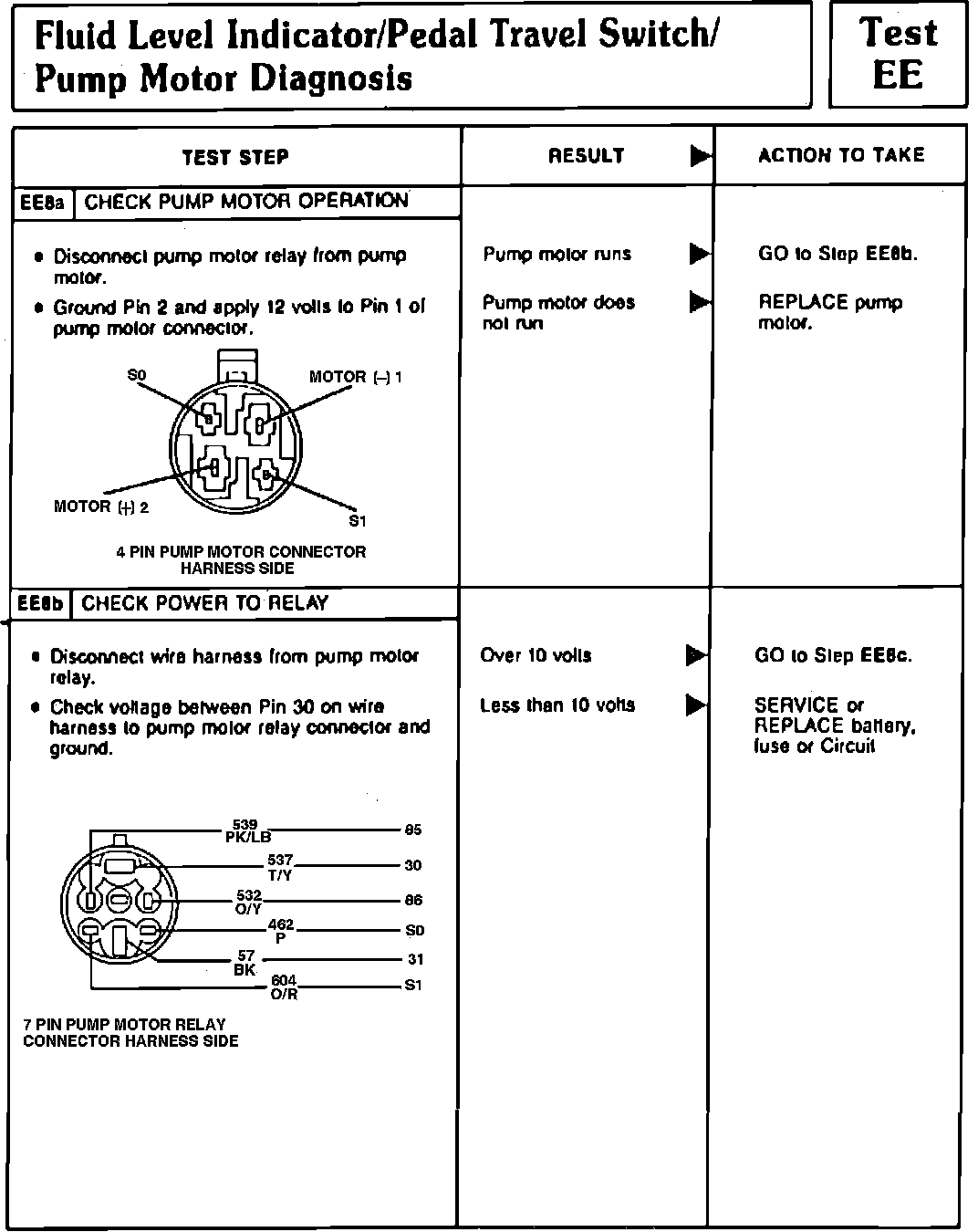

Fig. 74 Tests EE8a & EE8b (Fluid Level Indicator/Pedal Travel Switch/Pump Motor). Except 1991 Town Car:
