EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch
>>
EE5D to EE6B
EE5D to EE6B

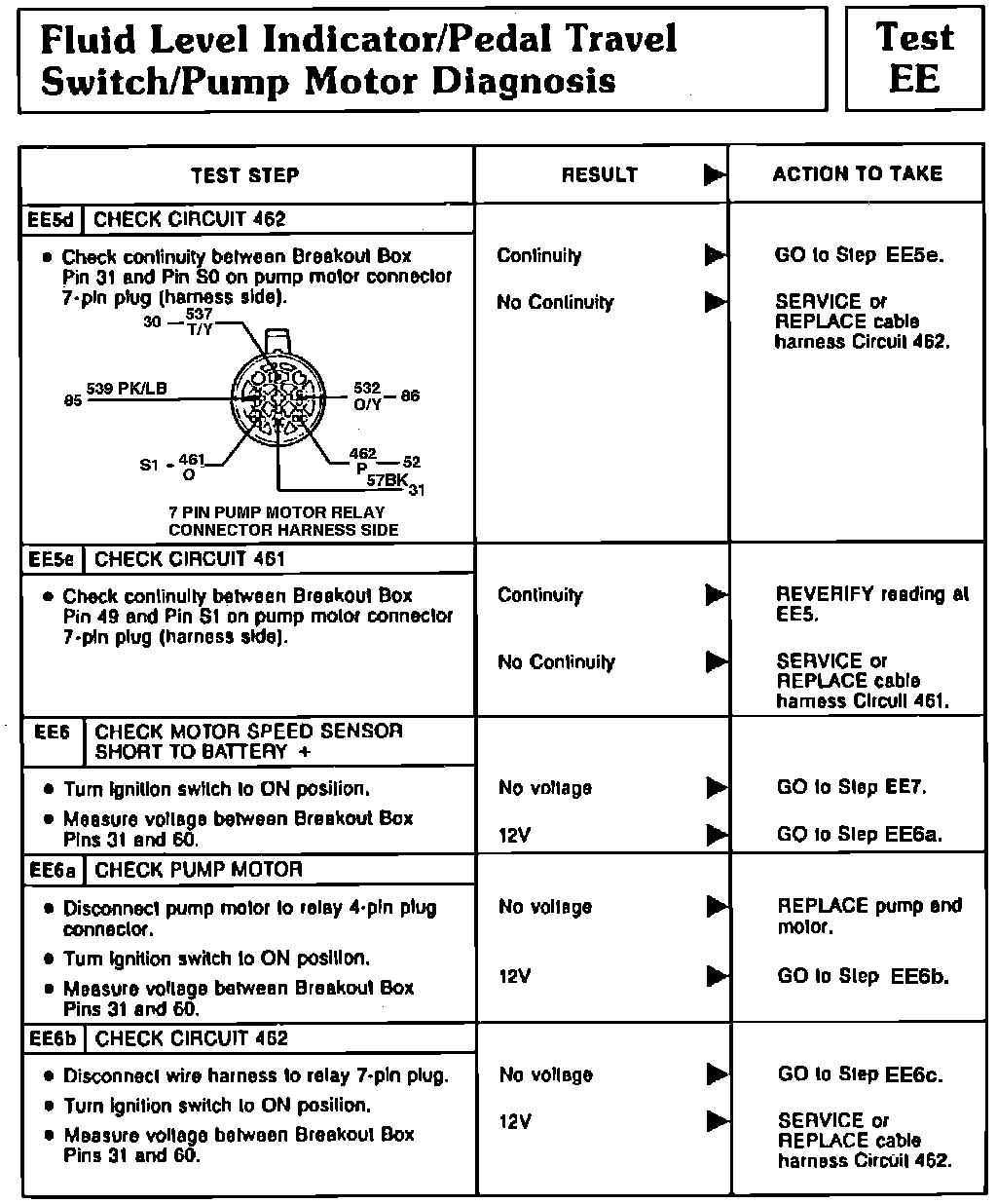

Fig. 68 Tests EE5d, EE5e, EE6, EE6a & EE6b (Fluid Level Indicator/Pedal Travel Switch/Pump Motor). Sable/Taurus: 1991 Continental:
