Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch >> EE1

EE1

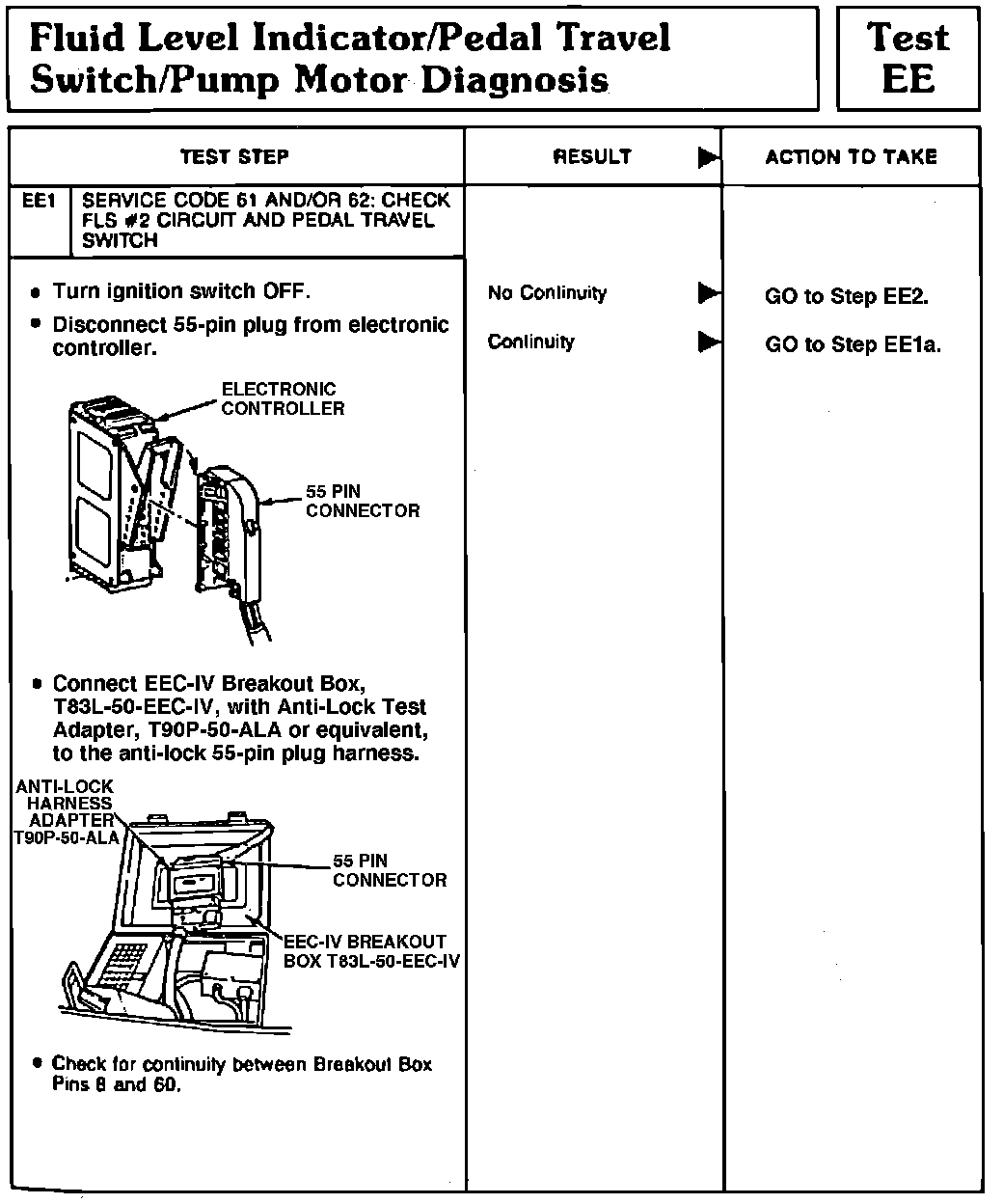

Fig. 55 Test EE1 (Fluid Level Indicator, Pedal Travel Switch & Pump Motor). 1991 Continental/Sable & Taurus:
