Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD10 DTC 54 and/or 74

DD10 DTC 54 and/or 74

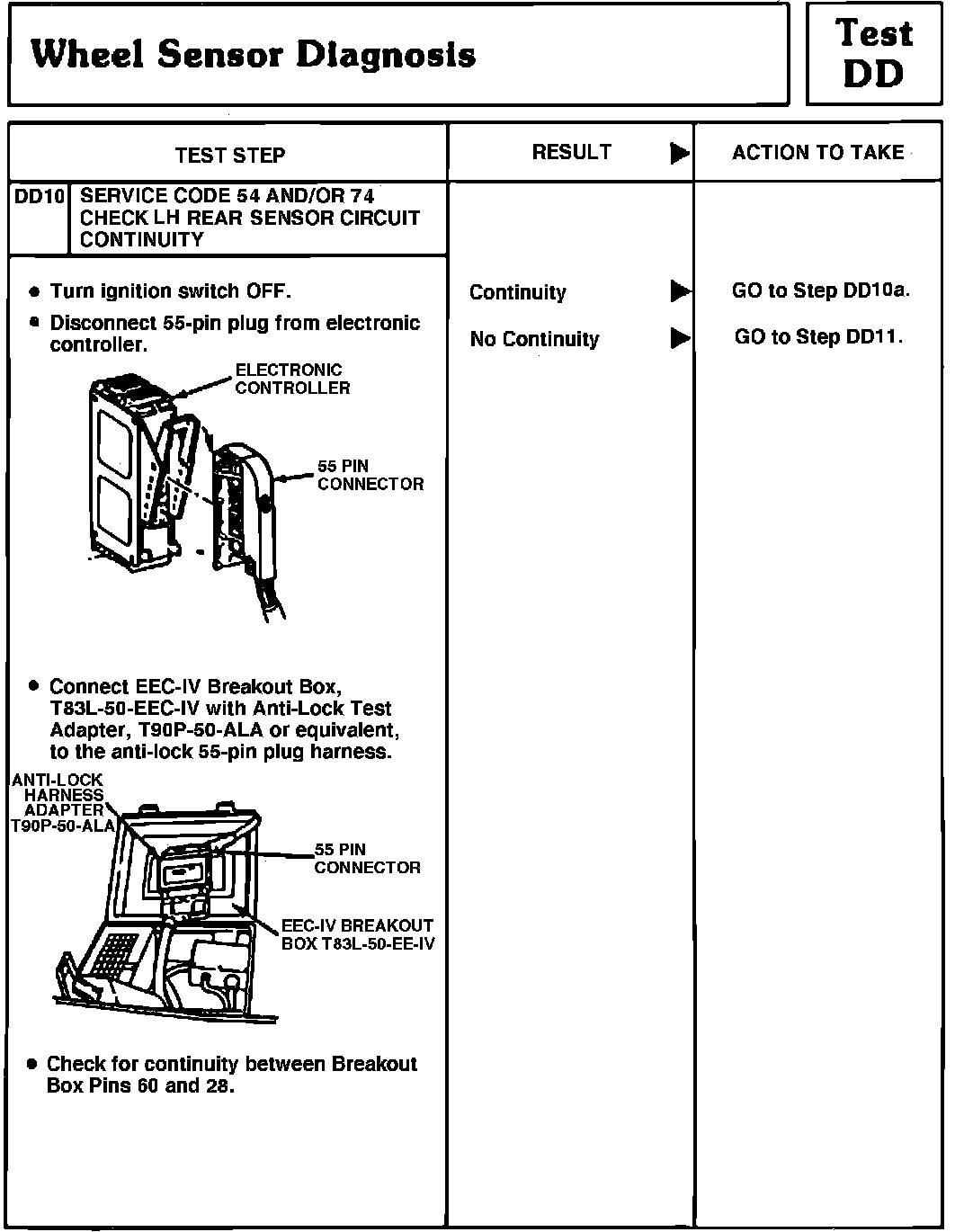

Fig. 51 Test DD10 (Wheel Sensor):
