Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> CC DTC 31, 35, 41, 55 or 75 LH ABS Brake Sensor and Circuit >> CC16 DTCs 34/38/44/58/74 or 78

CC16 DTCs 34/38/44/58/74 or 78

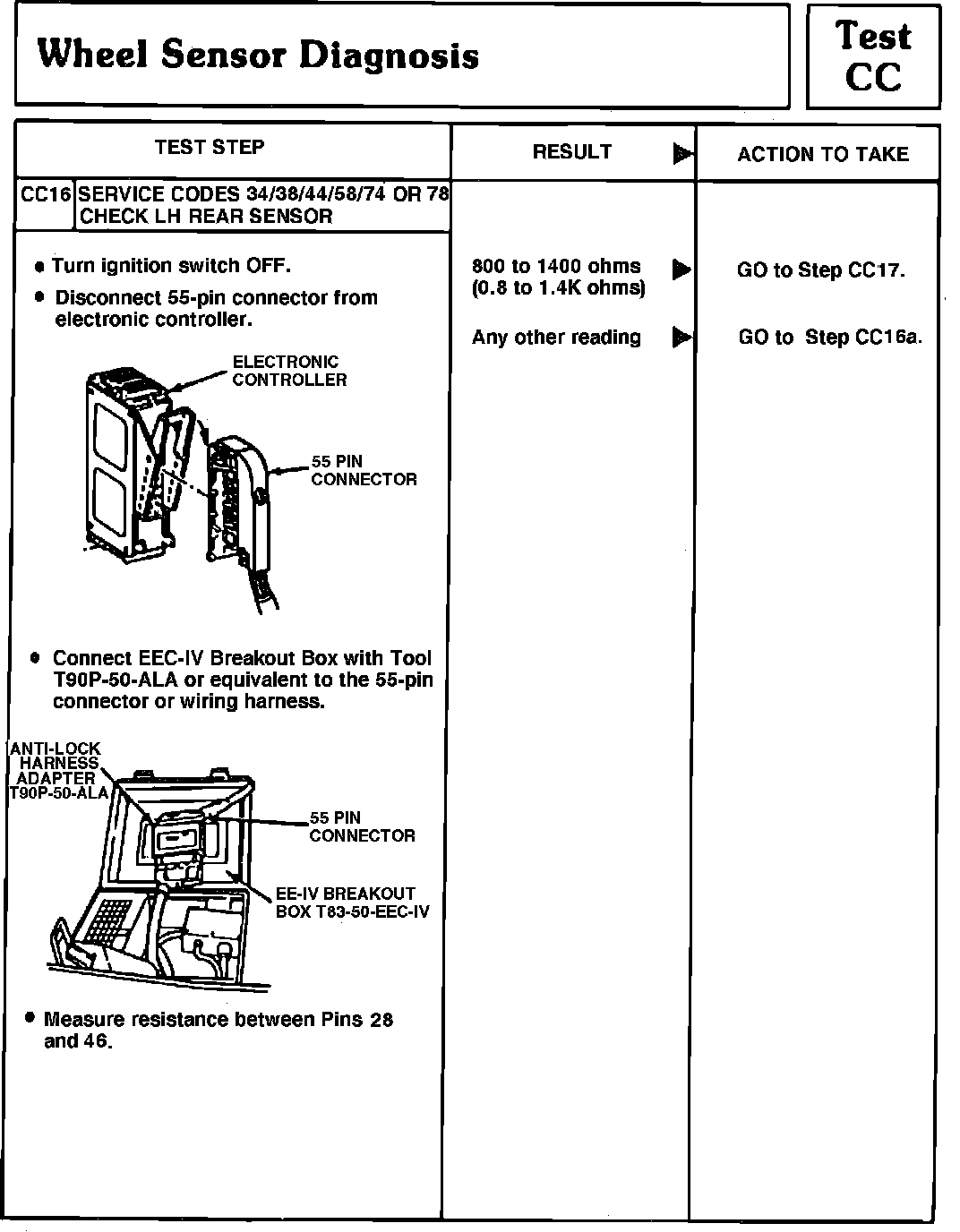

Fig. 41 Test CC16 (Wheel Sensor):
