Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Indicator ON or False Cycling >> C8a to C11

C8a to C11

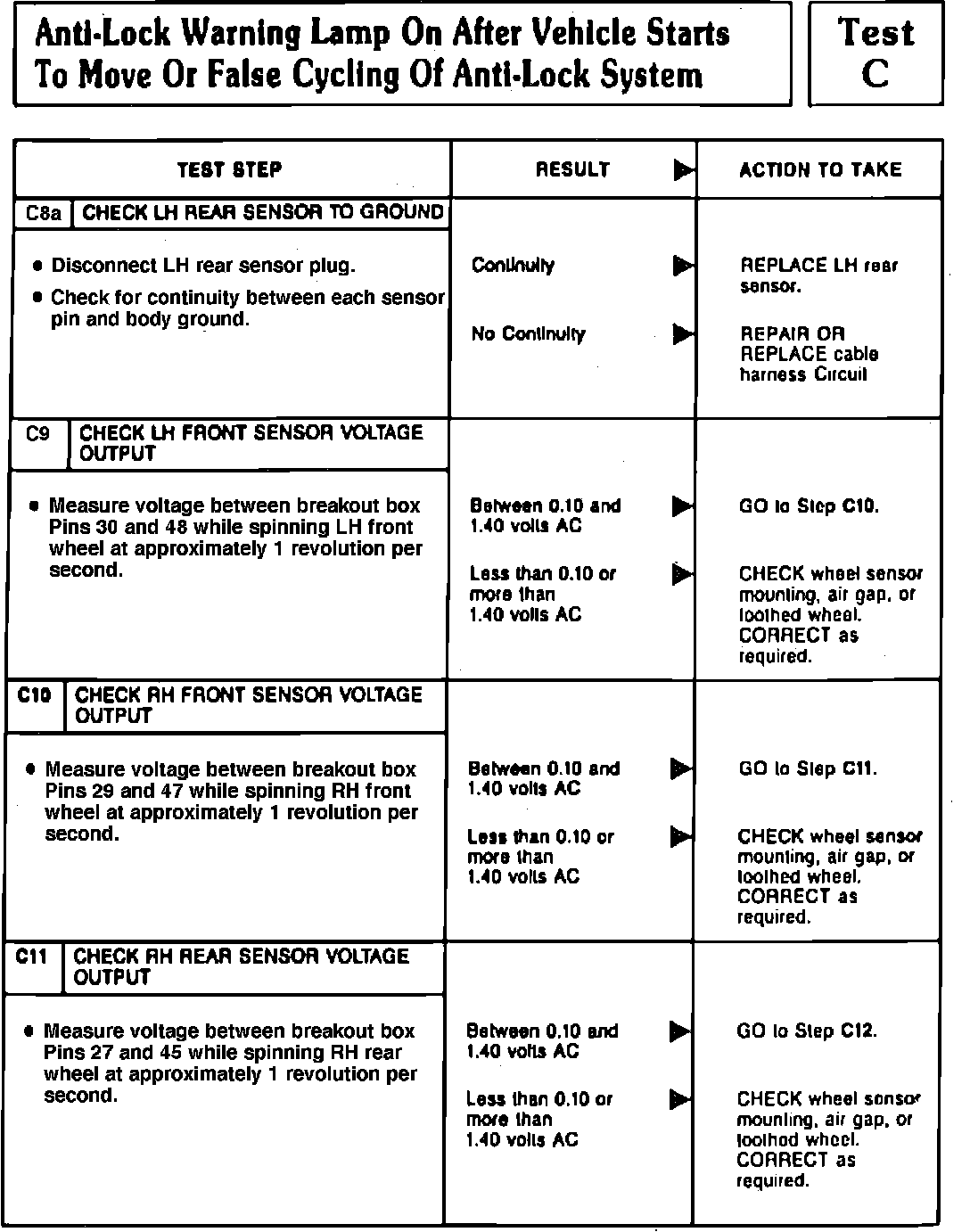

Fig. 111 Tests C8a, C9, C10 & C11 (ABS Lamp ON After Vehicle Starts):
