Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Indicator ON or False Cycling >> C15 to C16

C15 to C16

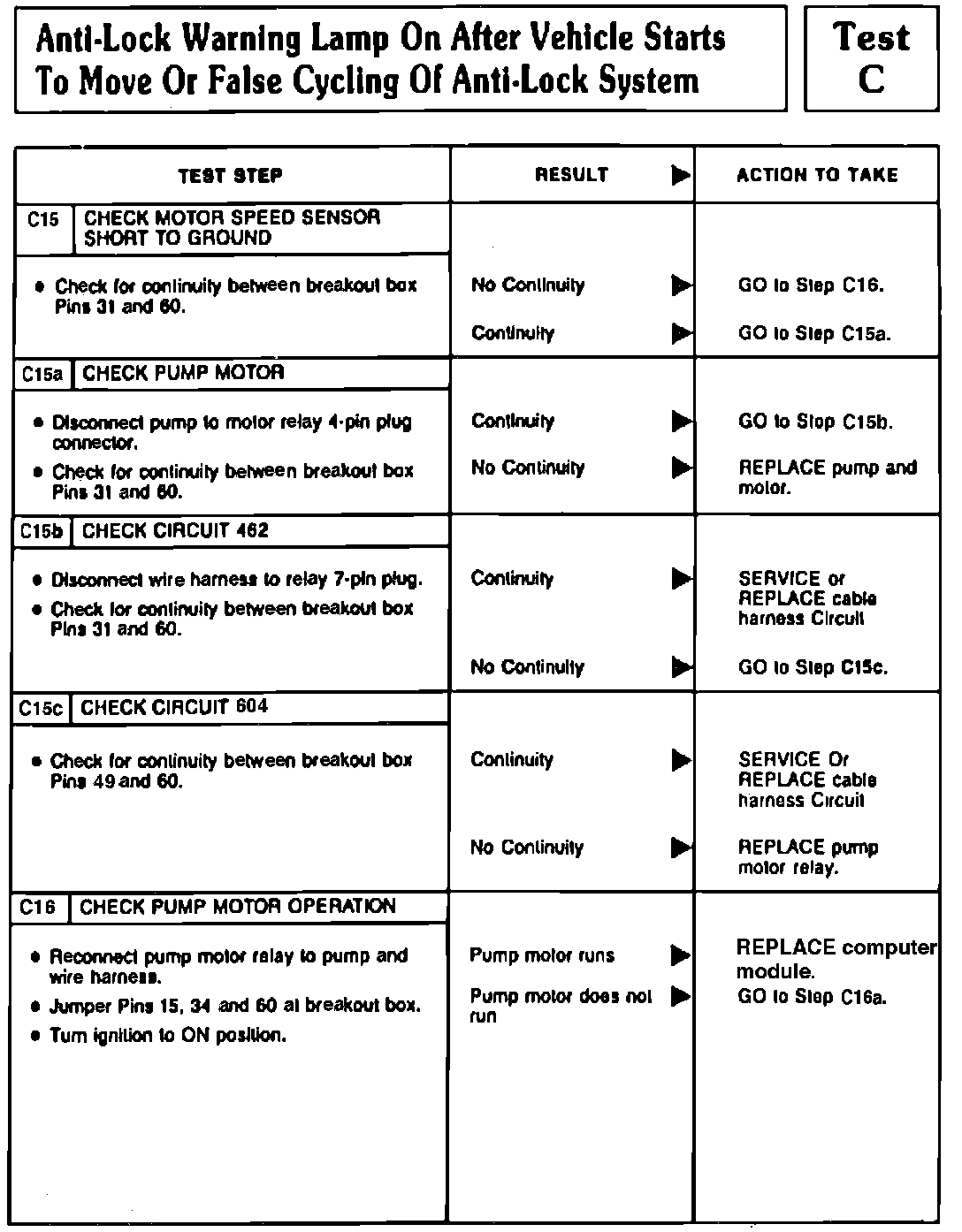

Fig. 116 Tests C15, C15a, C15b, C15c & C16 (ABS Lamp ON After Vehicle Starts):
