C Indicator ON or False Cycling
>>
C13e to C14c
C13e to C14c

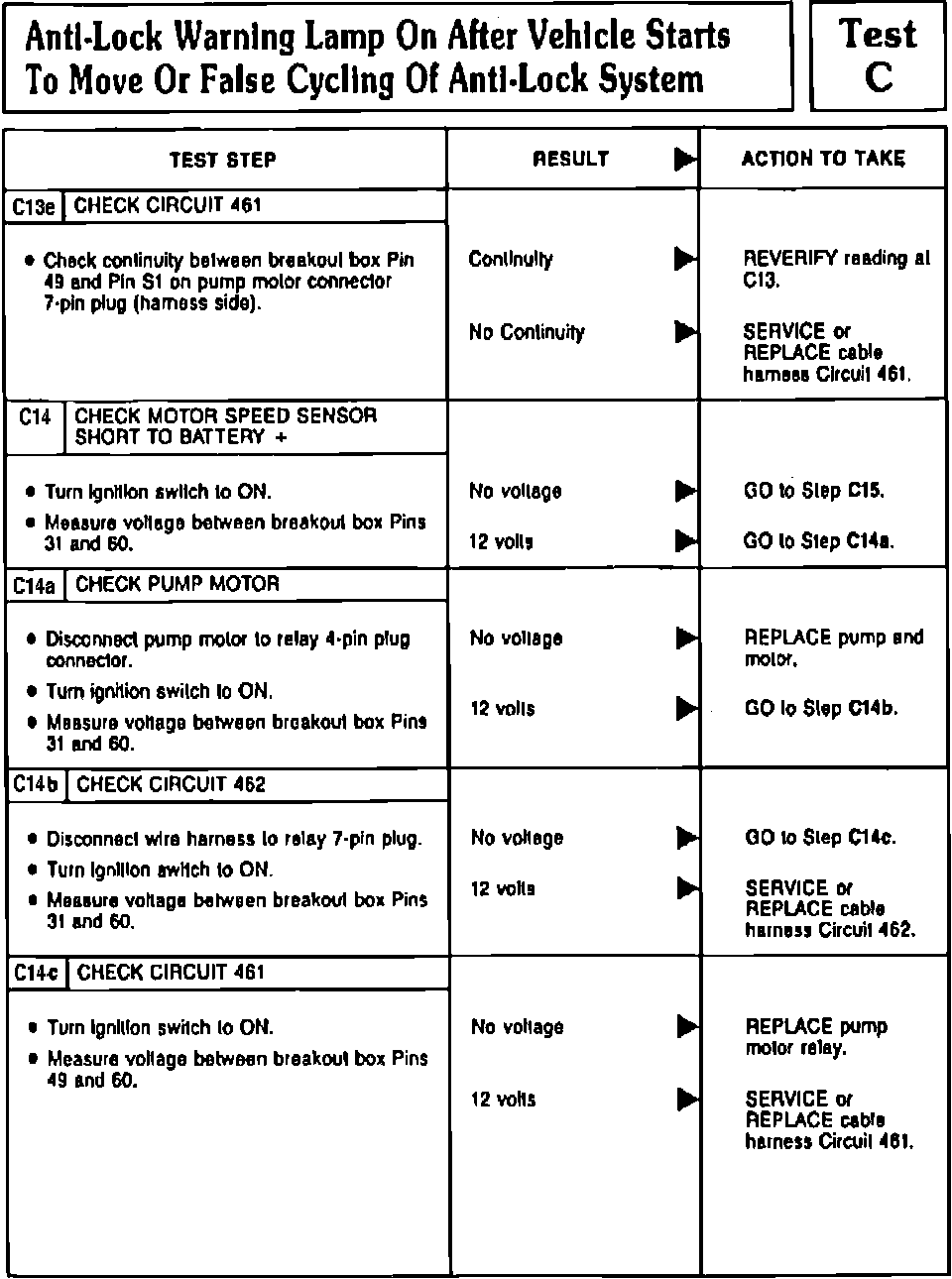

Fig. 114 Tests C13e, C14, C14a, C14b & C14c (ABS Lamp ON After Vehicle Starts). Sable/Taurus: 1990-91 Continental:
