Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Indicator ON or False Cycling >> C1

C1

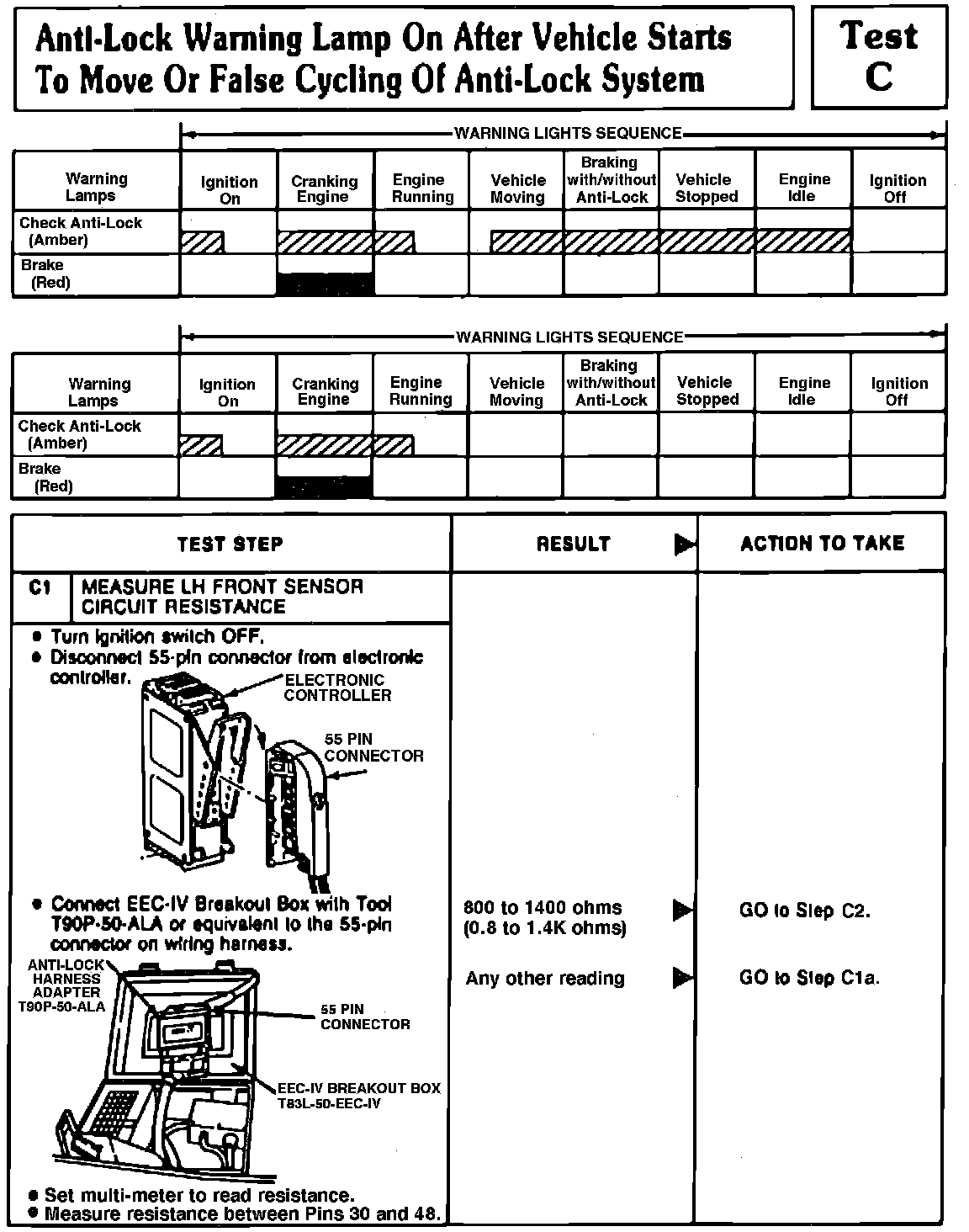

Fig. 106 Test C1 (ABS Lamp ON After Vehicle Starts):
