Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A ABS Warning Indicator ON (With Brake Warning Indicator OFF) >> A3d to A3e

A3d to A3e

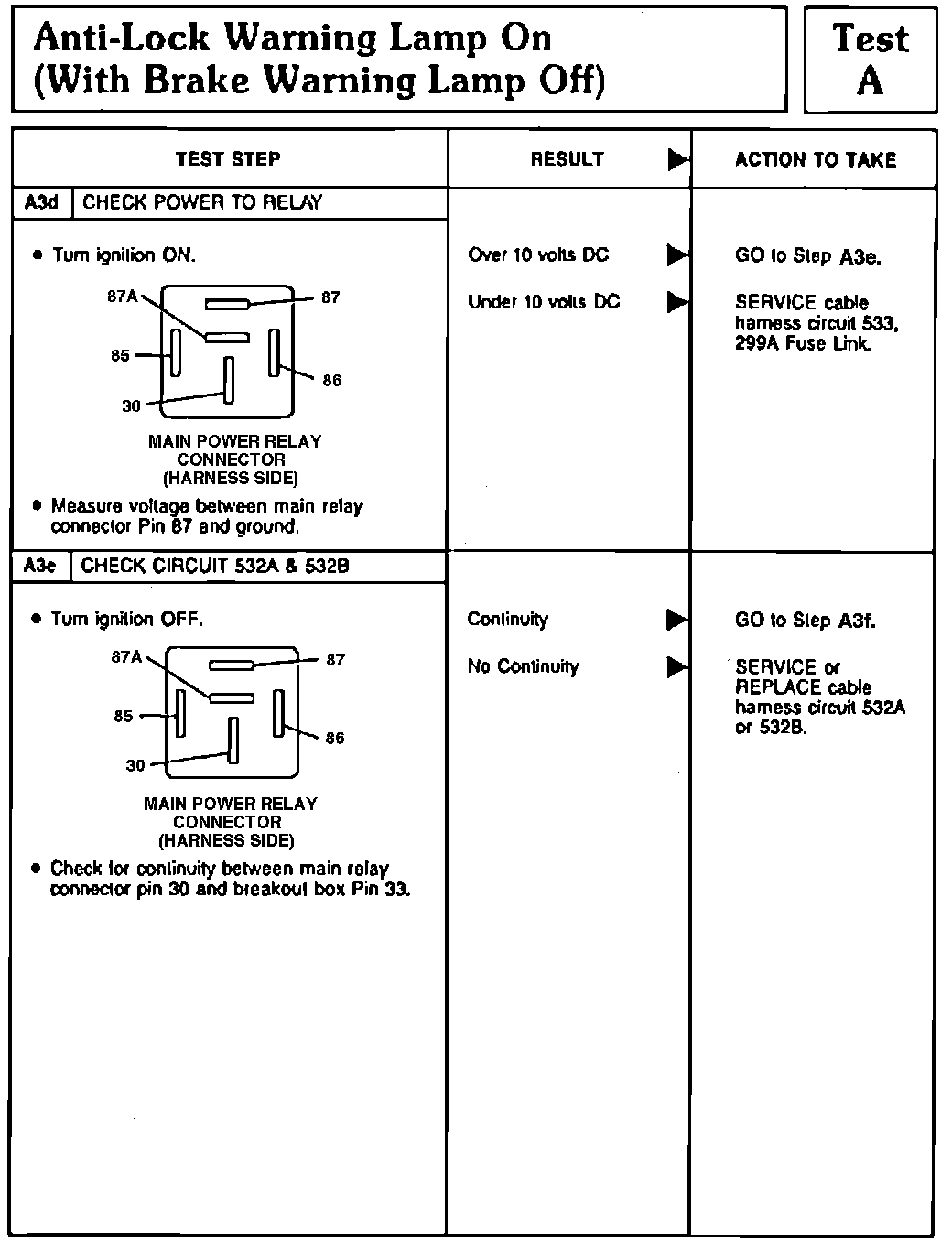

Fig. 95 Tests A3d & A3e (ABS Lamp On). Sable & Taurus:
