Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A ABS Warning Indicator ON (With Brake Warning Indicator OFF) >> A1a to A3

A1a to A3

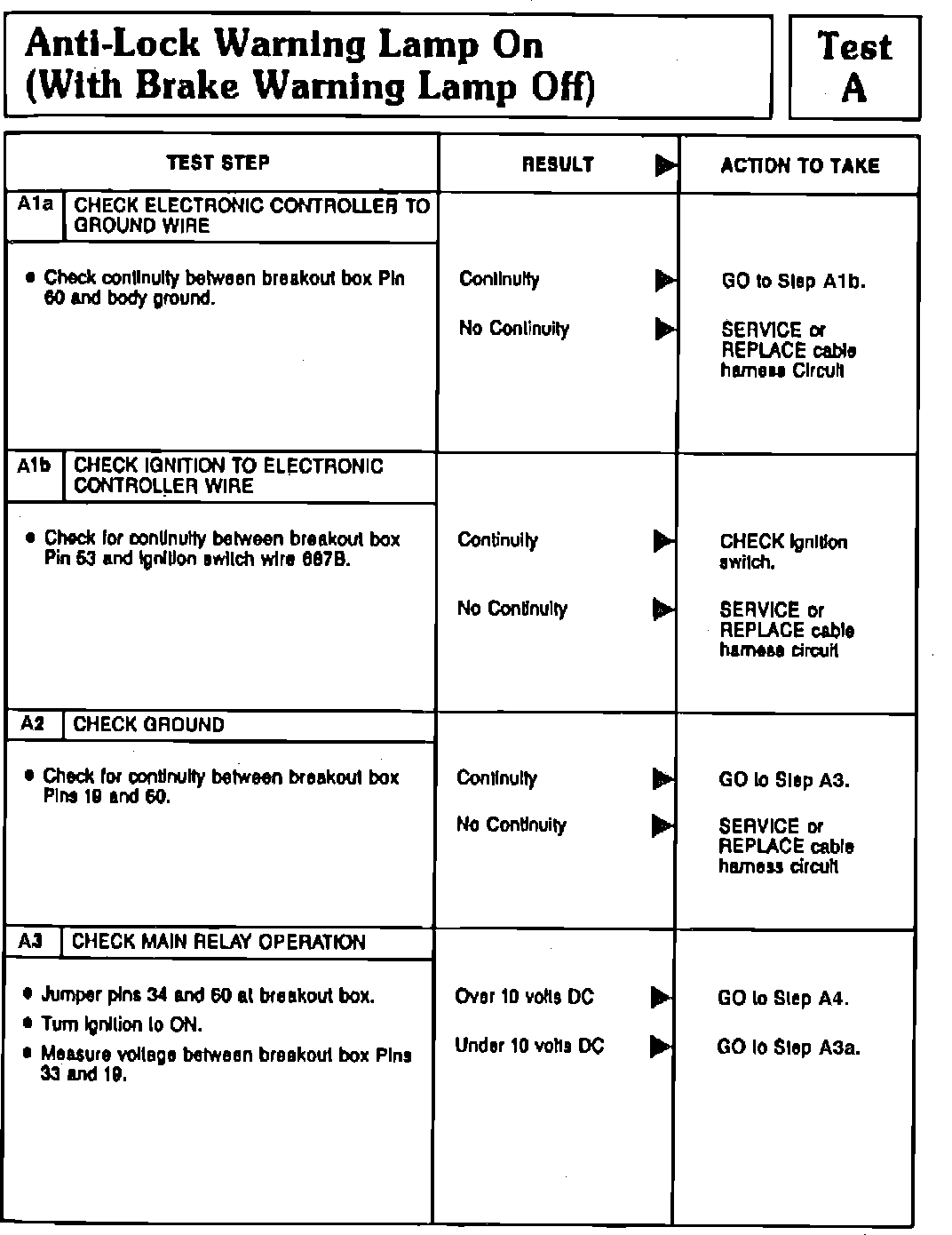

Fig. 87 Tests A1a, A1b, A2 & A3 (ABS Lamp On). Sable, Taurus & 1990-91 Continental:
