Home >> Ford >> 1991 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A ABS Warning Indicator ON (With Brake Warning Indicator OFF) >> A1

A1

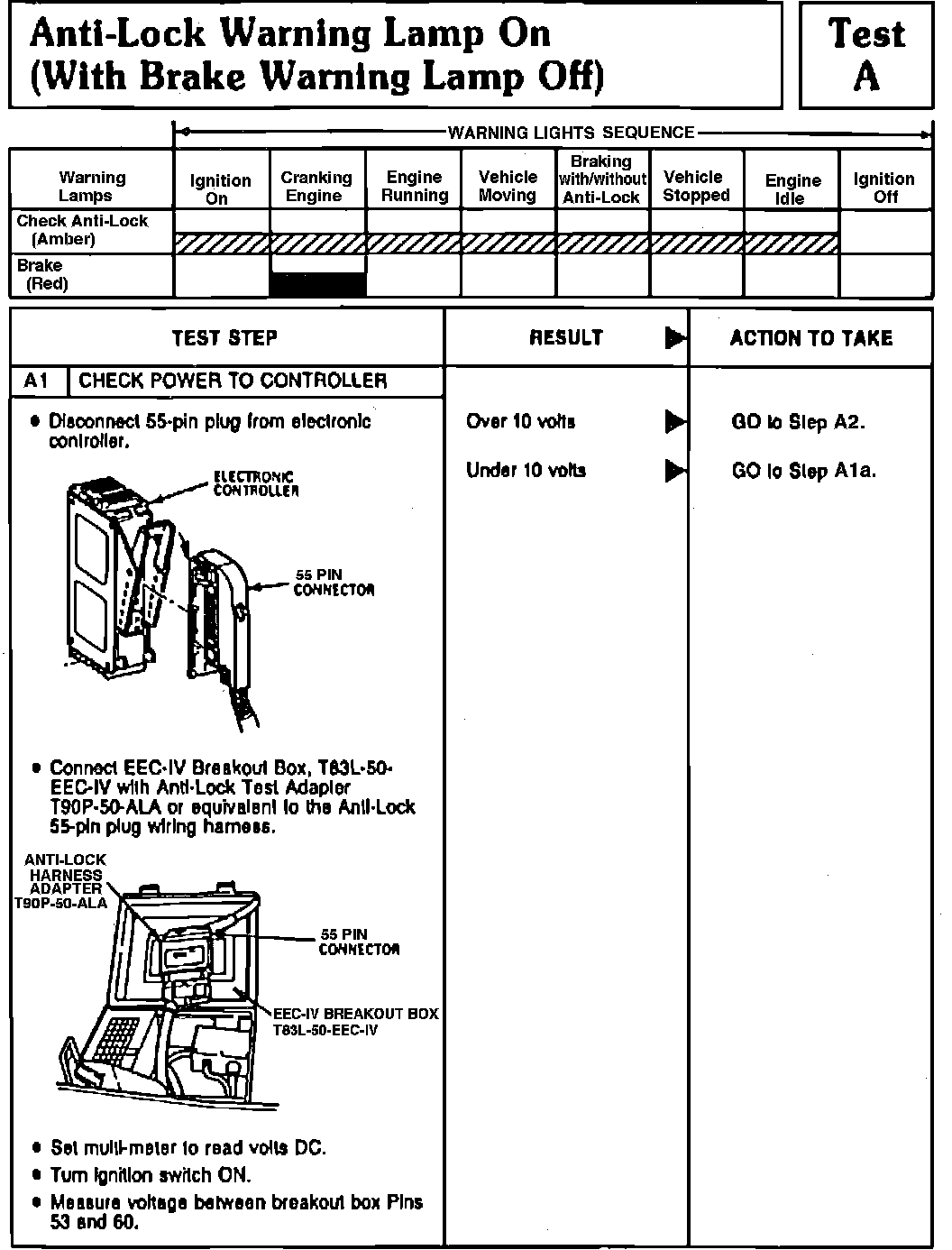

Fig. 86 Test A1 (ABS Lamp On). Sable/Taurus: 1990-91 Continental:
