Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Diagnosis By Symptom >> Electrical Component Diagnosis >> A1 - A3

A1 - A3

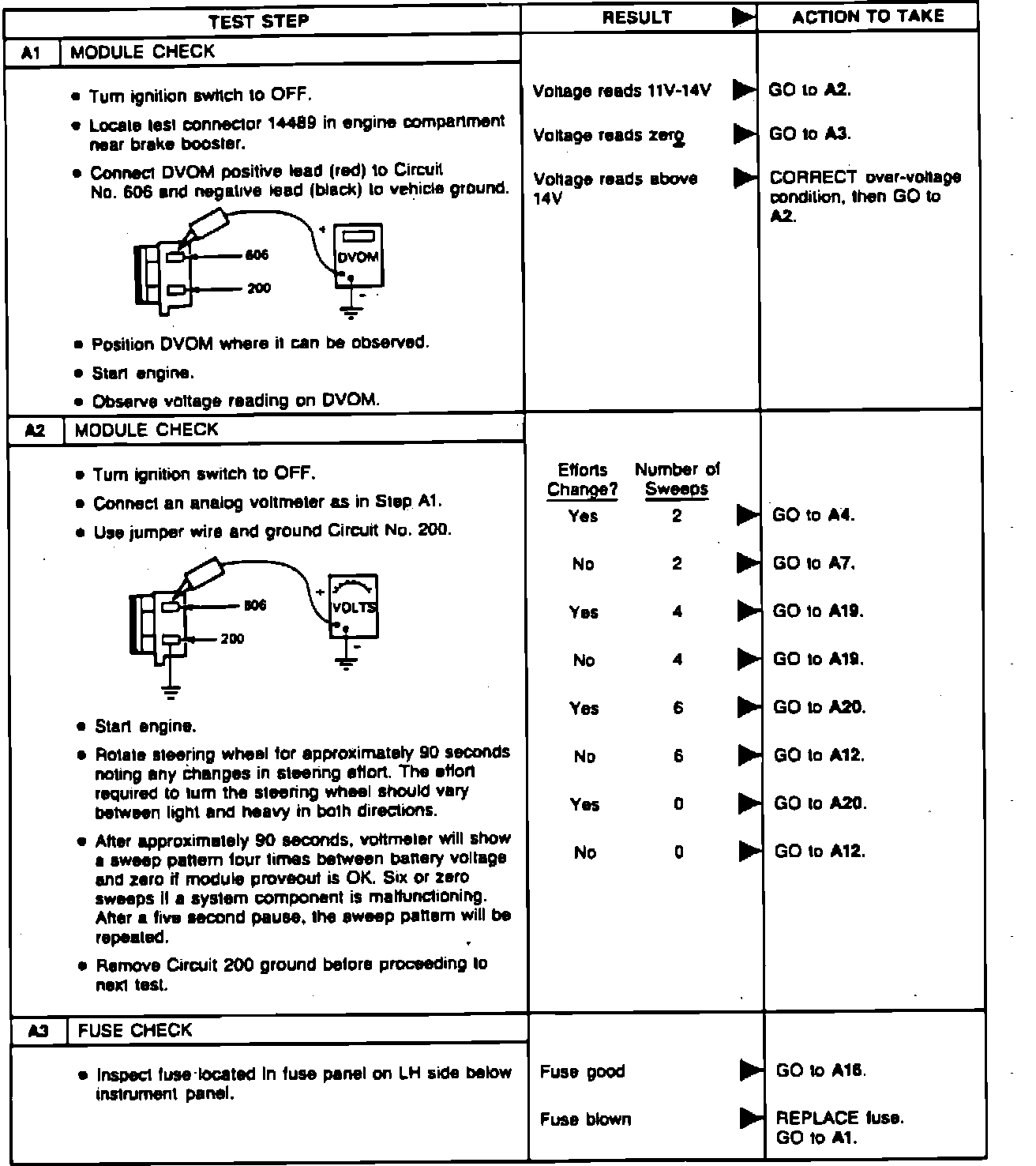

Fig. 10 Electrical Component Diagnosis (Part 3 Of 13):
