Brake Pad Wear Sensor: Locations

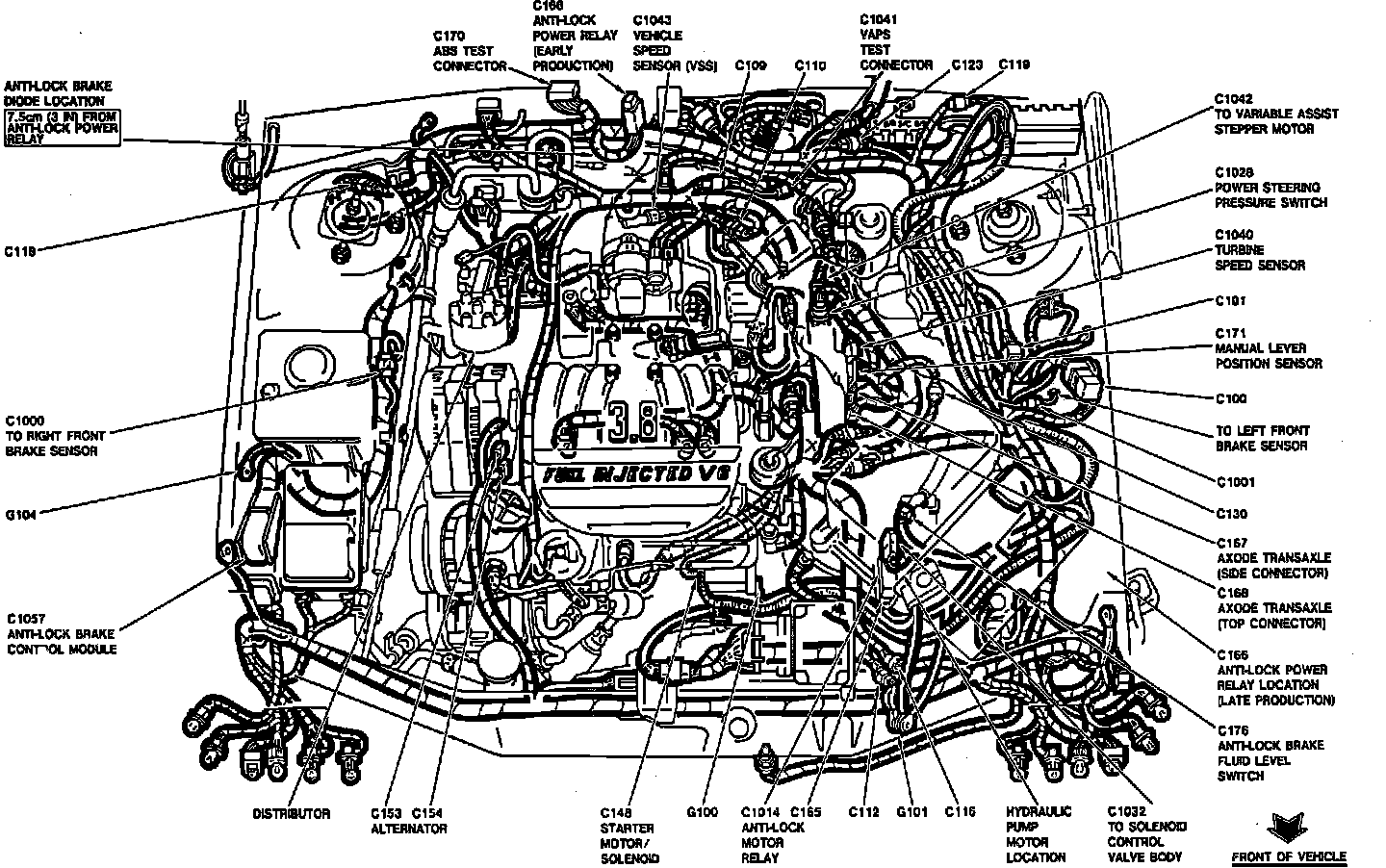

Engine Compartment Component Location.:

Engine Compartment Component Location.:

In Each Wheelwell, On Brake Housing

Applicable to: 3.0L/V6-182

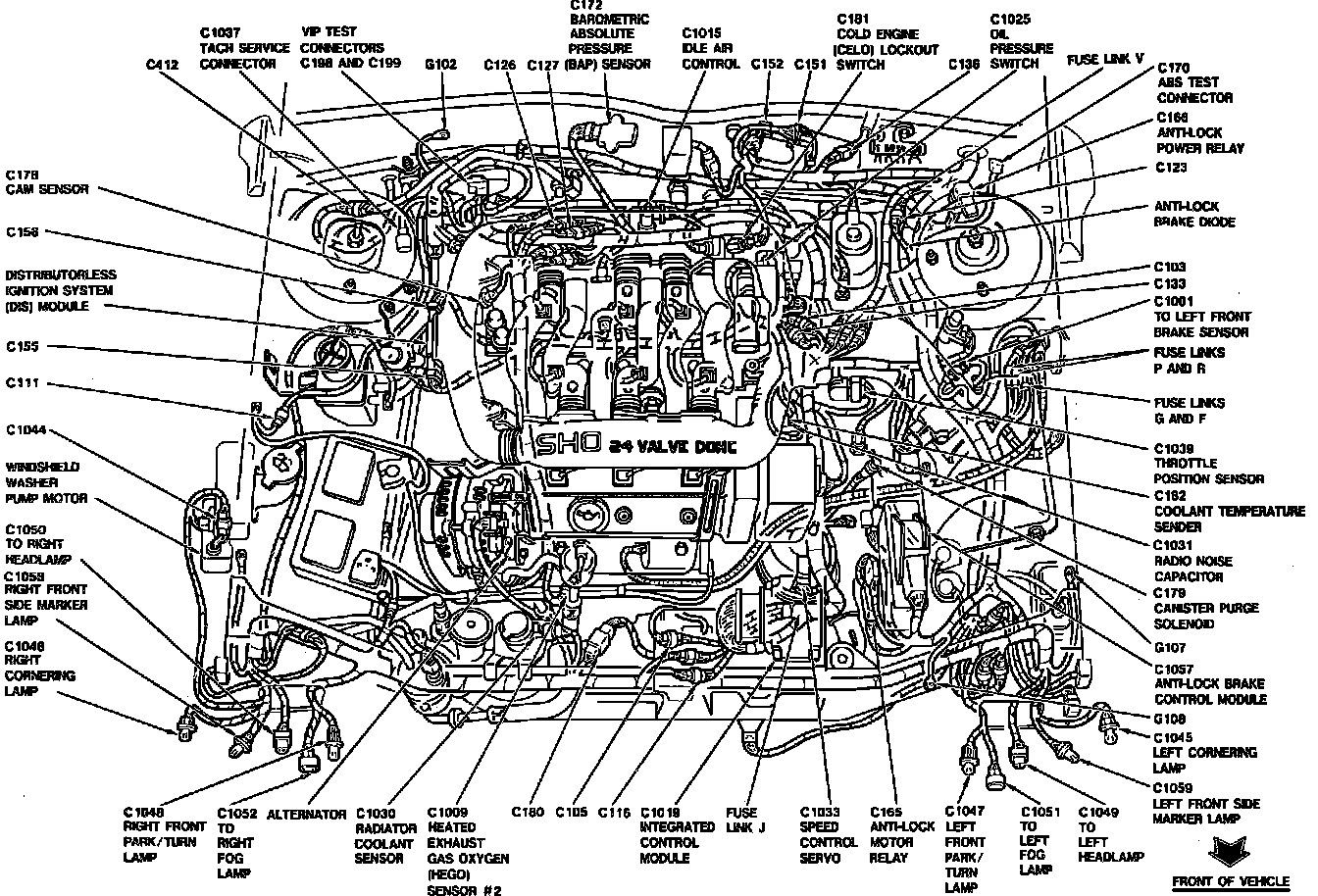

Engine Compartment Component Location.:

In Each Wheelwell, On Brake Housing

Applicable to: 3.0L/V6-182 SHO

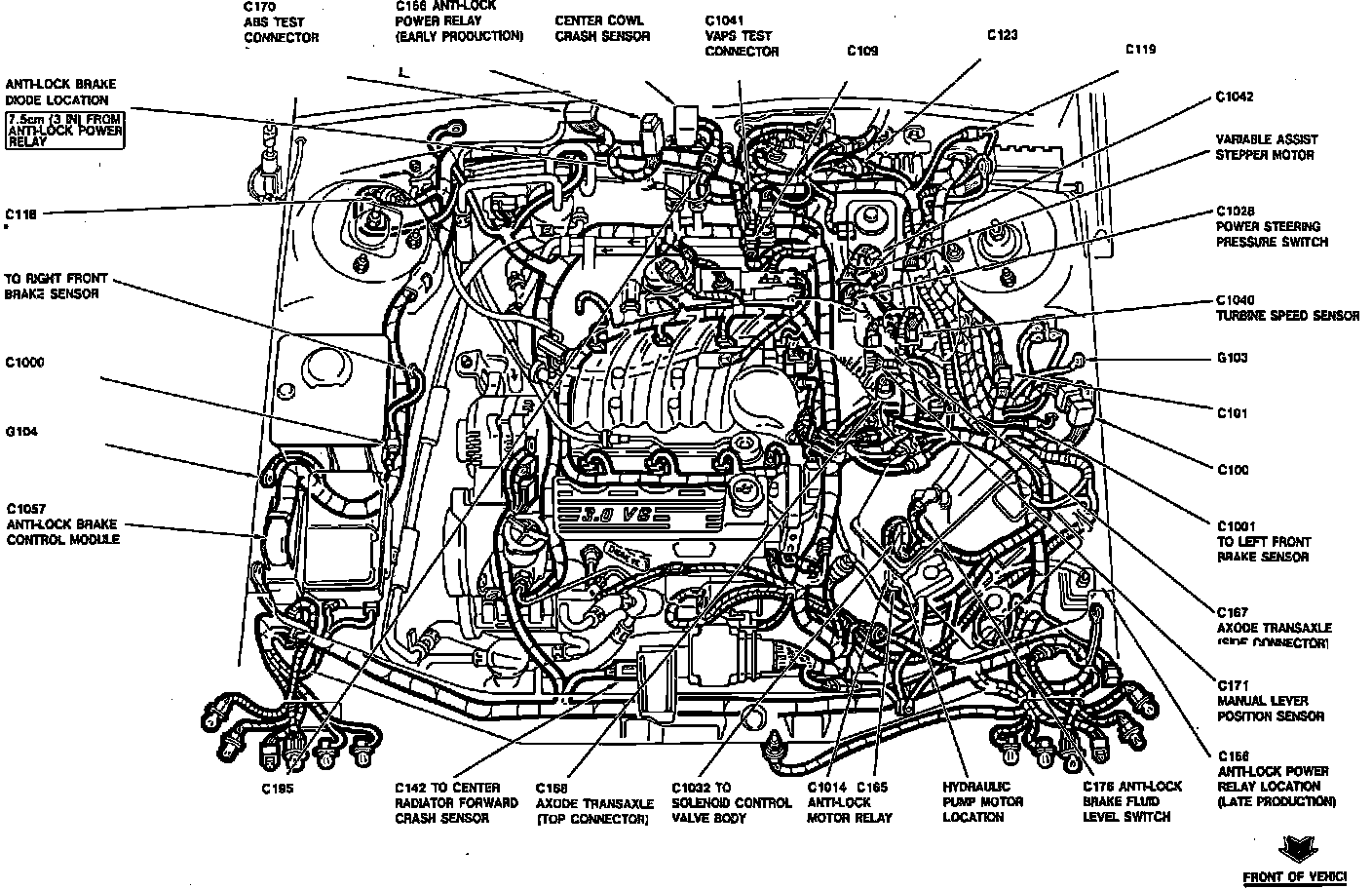

Engine Compartment Component Location.:

In Each Wheelwell, On Brake Housing

Applicable to: 1992 3.8L/V6-232

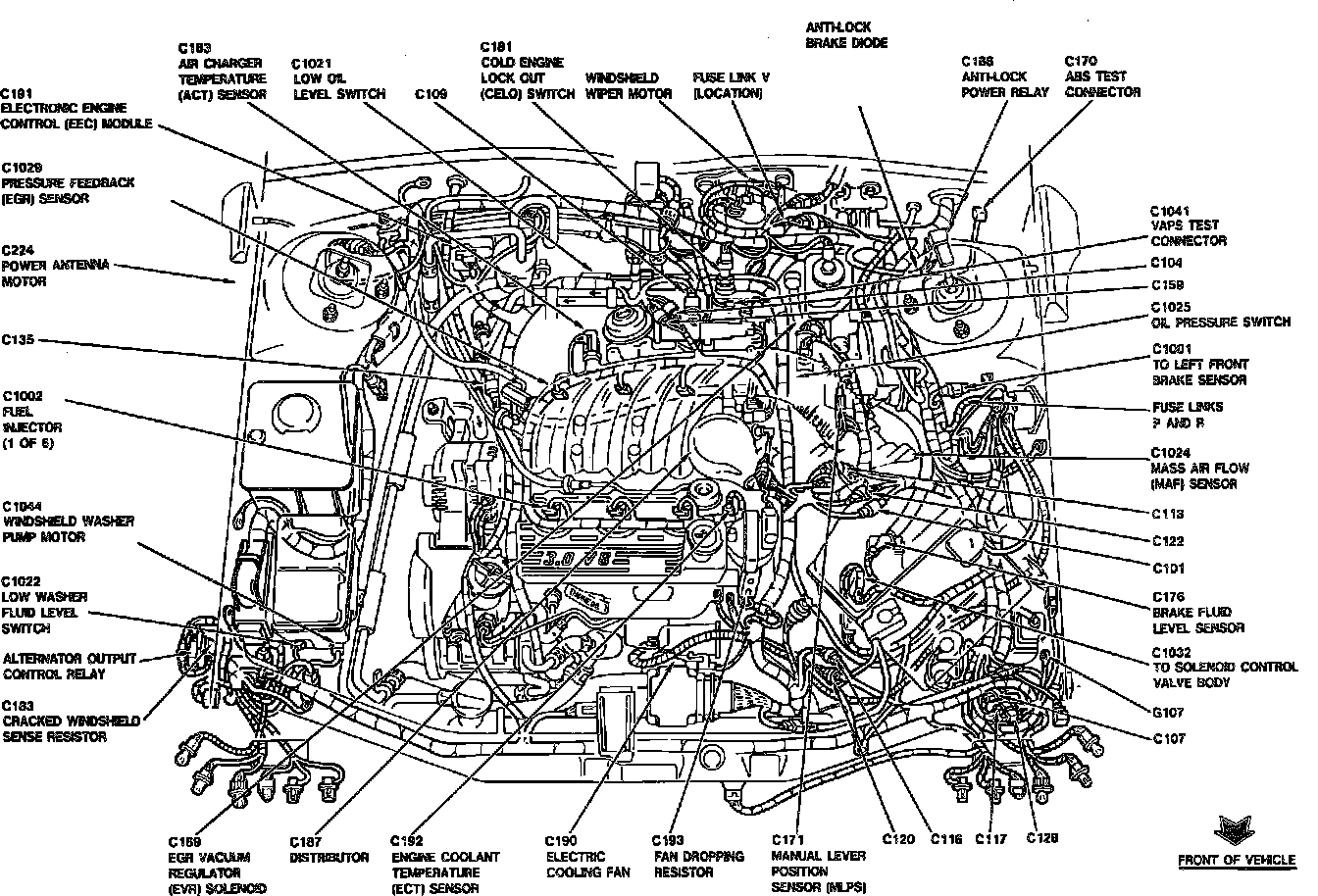

Engine Compartment Component Location.:

In Each Wheelwell, On Brake Housing

Applicable to: 1992 3.0L/V6-182
