5 Flashes - Short Forward Crash Sensor Deployment Ckt
5 Flashes - Short Forward Crash Sensor Deployment Ckt

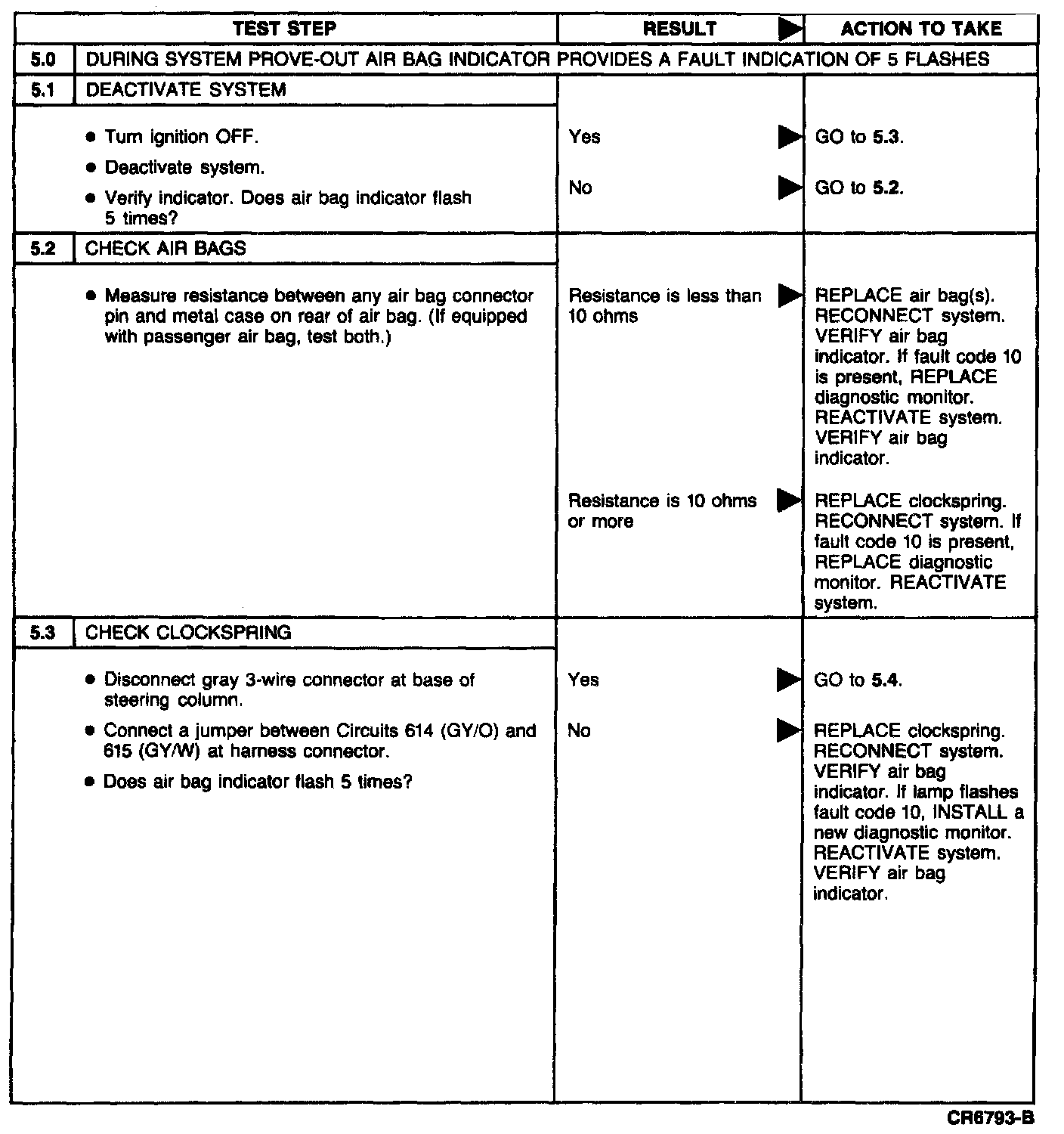

5.0-5.3:

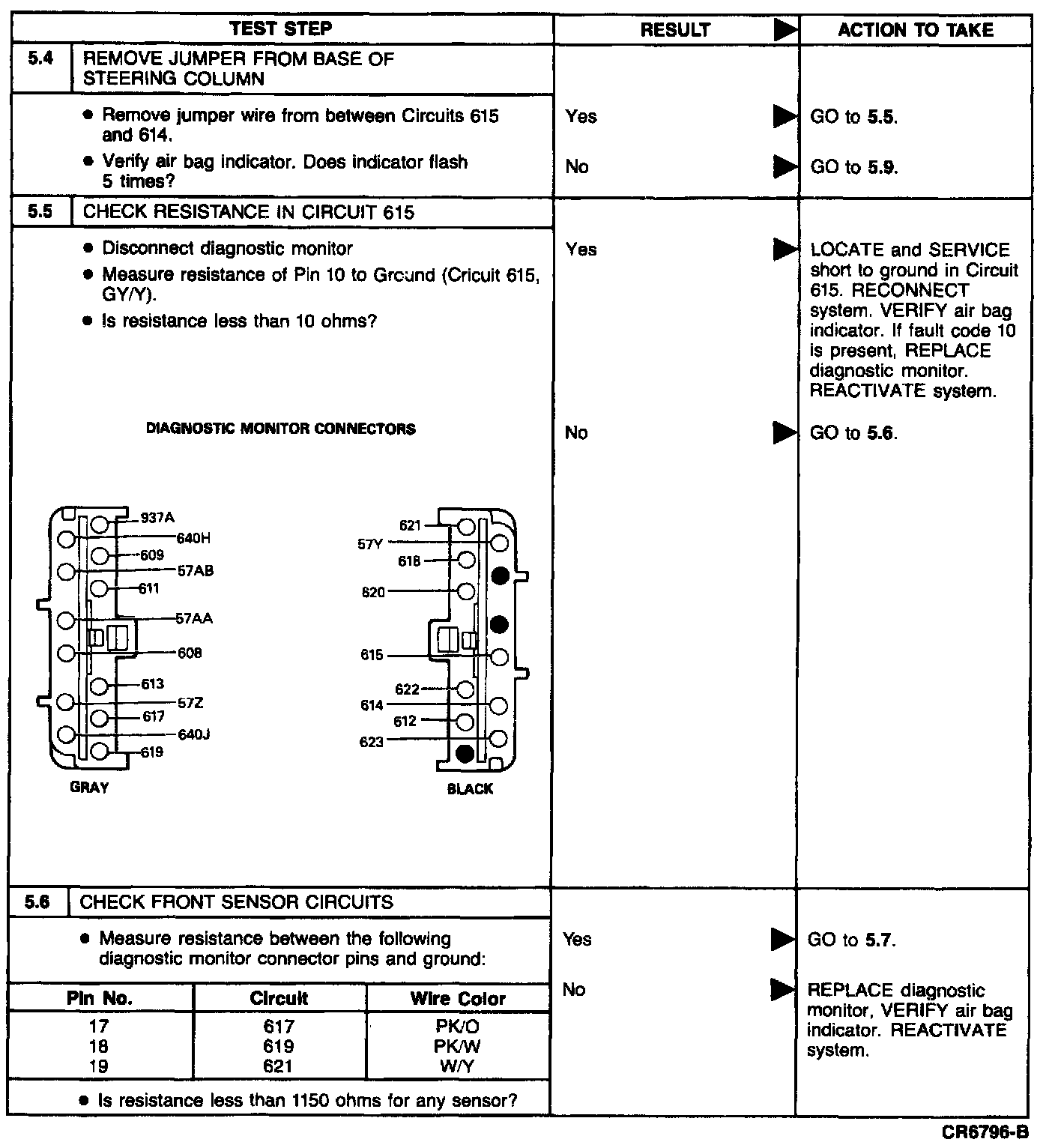

5.4-5.6:

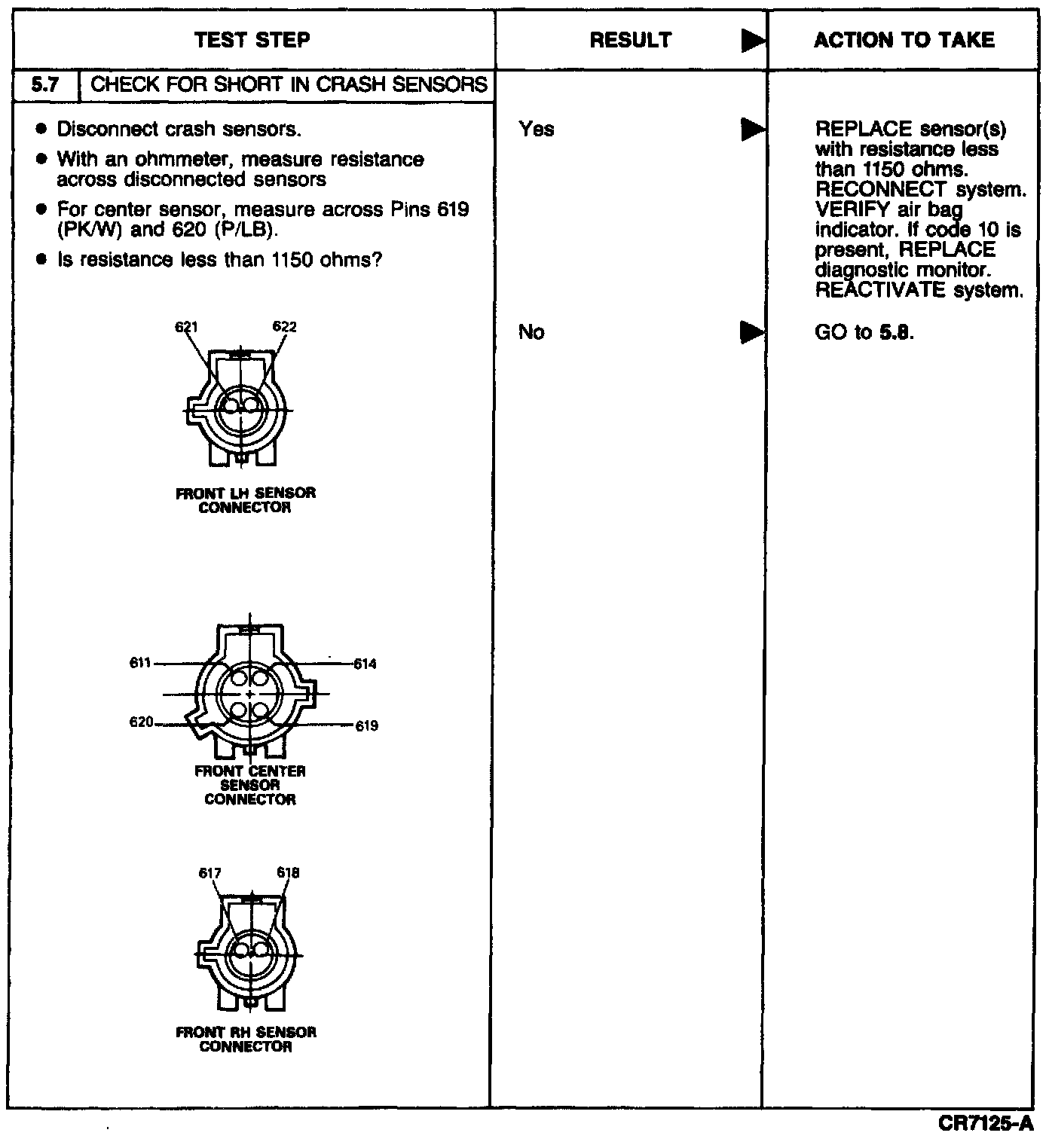

5.7:

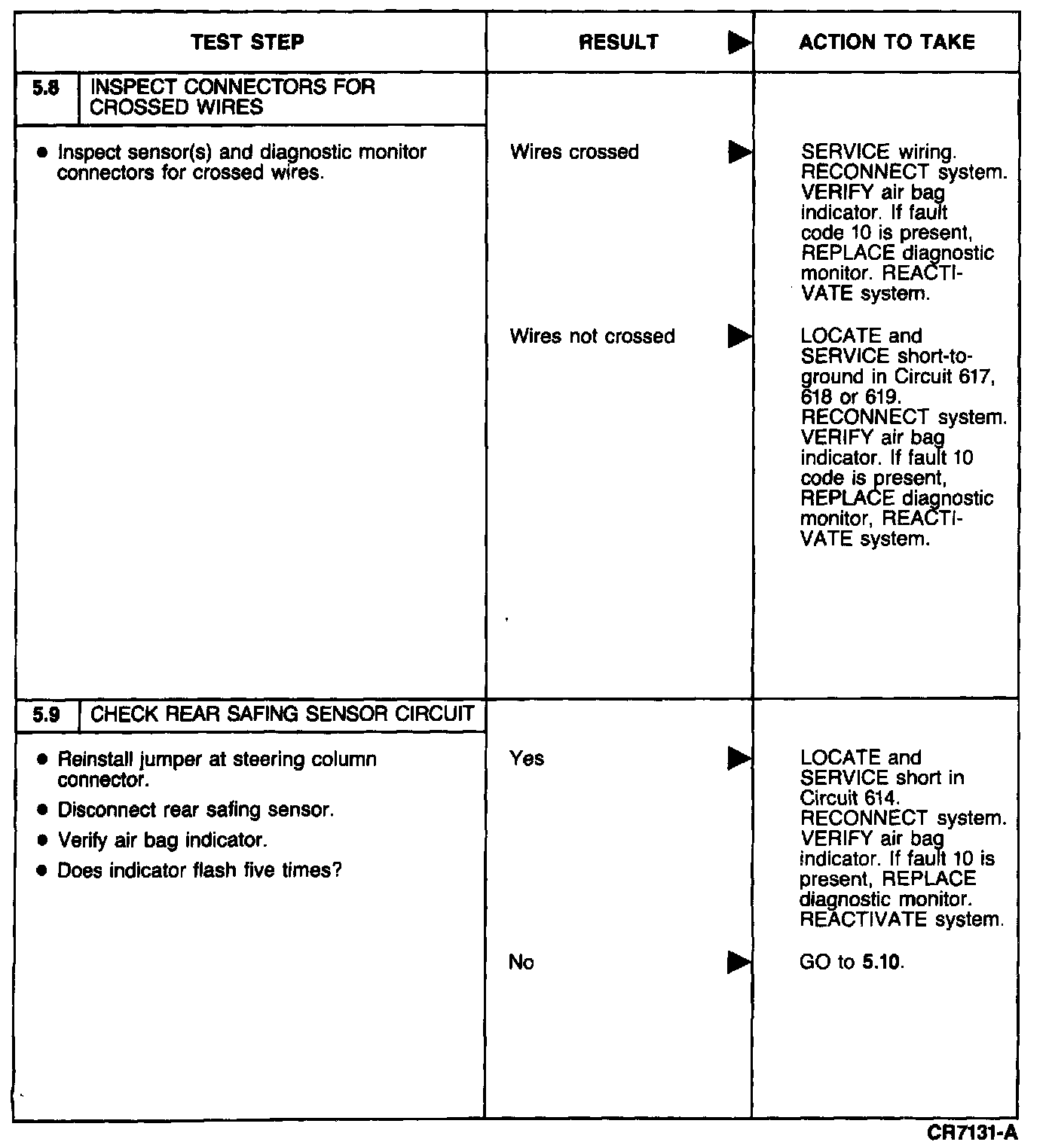

5.8-5.9:

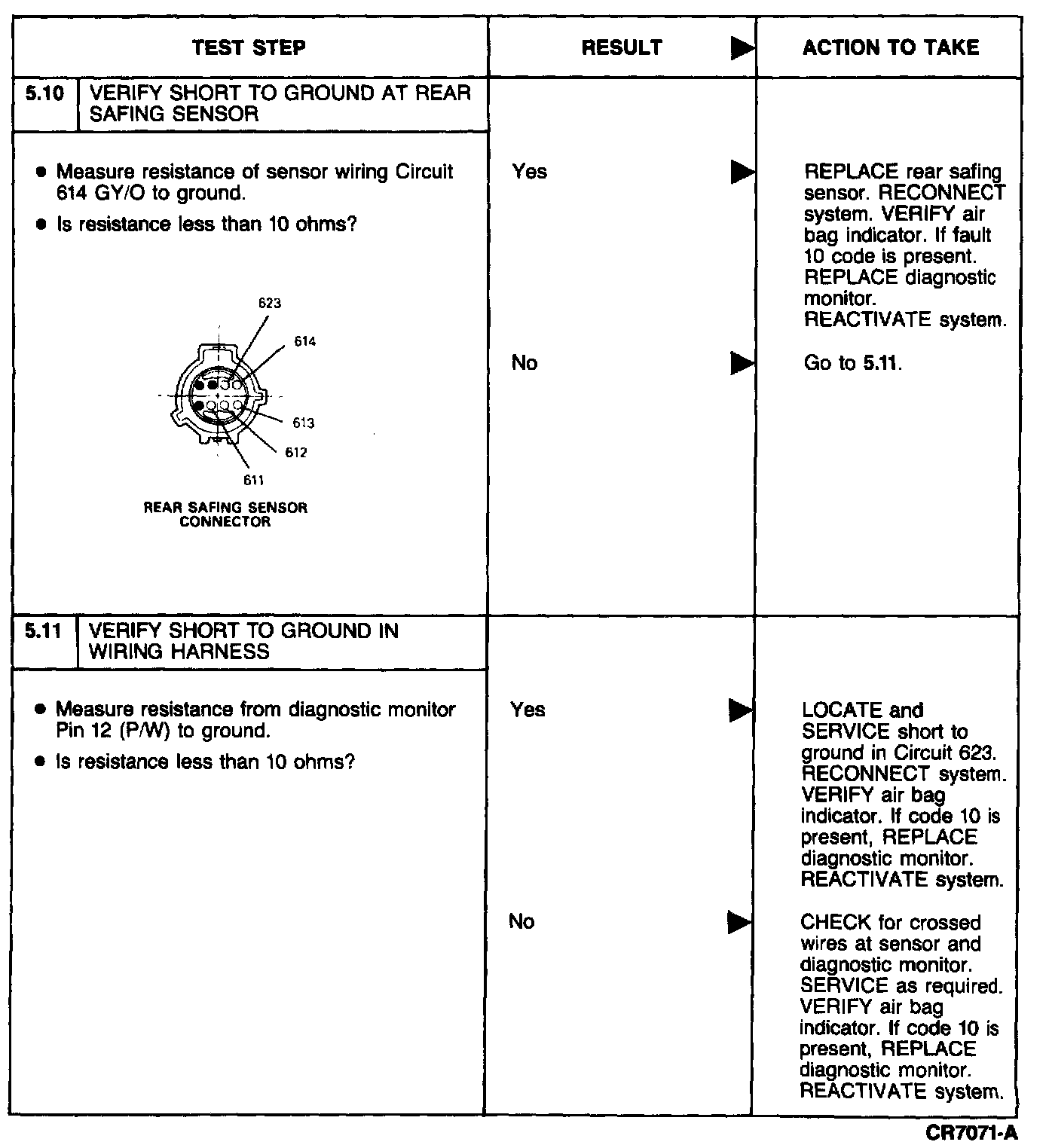

5.10-5.11:
