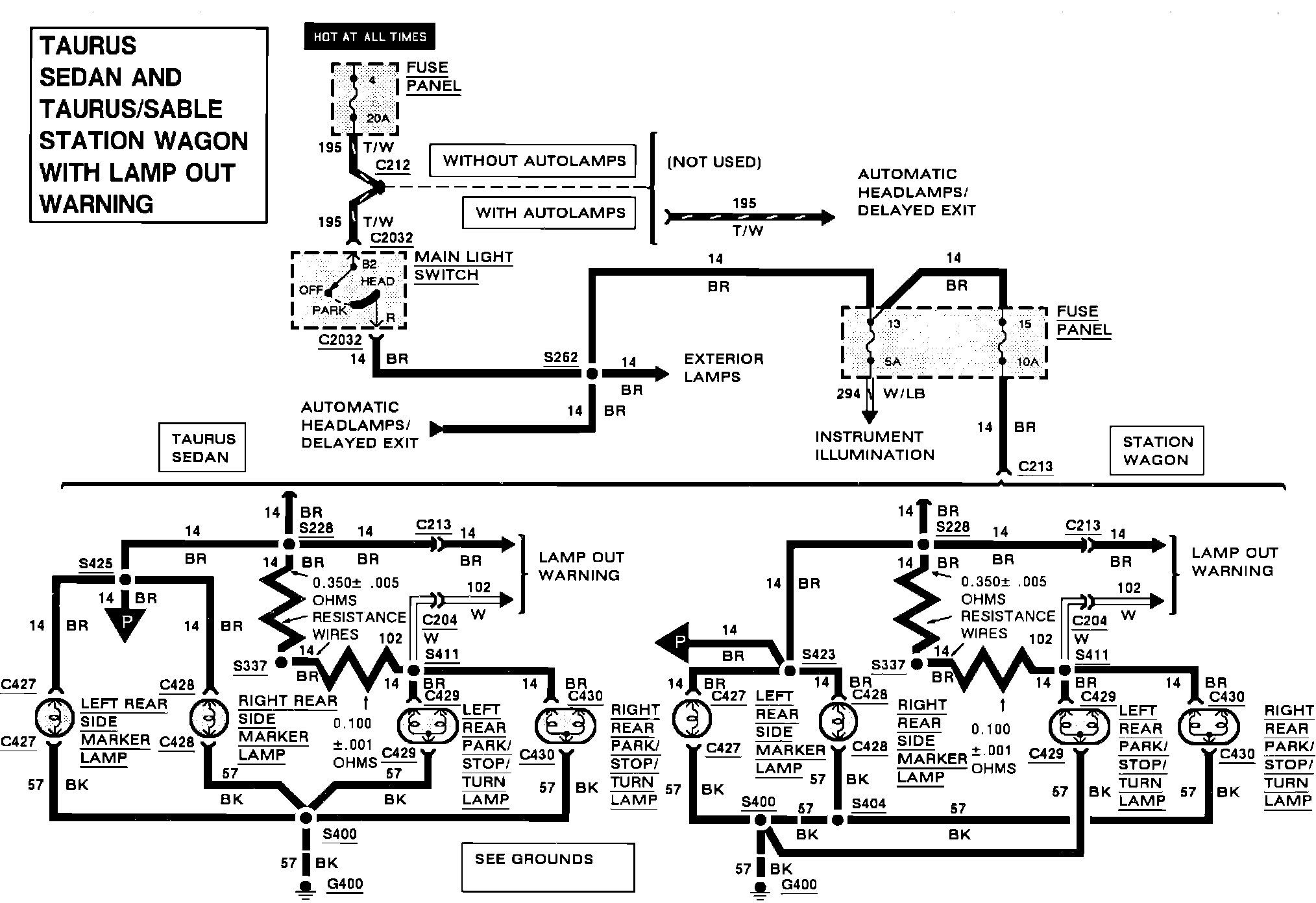

Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Exterior Lighting Module >> Diagrams >> Electrical Diagrams >> Sedan >> With Lamp Out Warning
