Canister Purge Solenoid: Locations

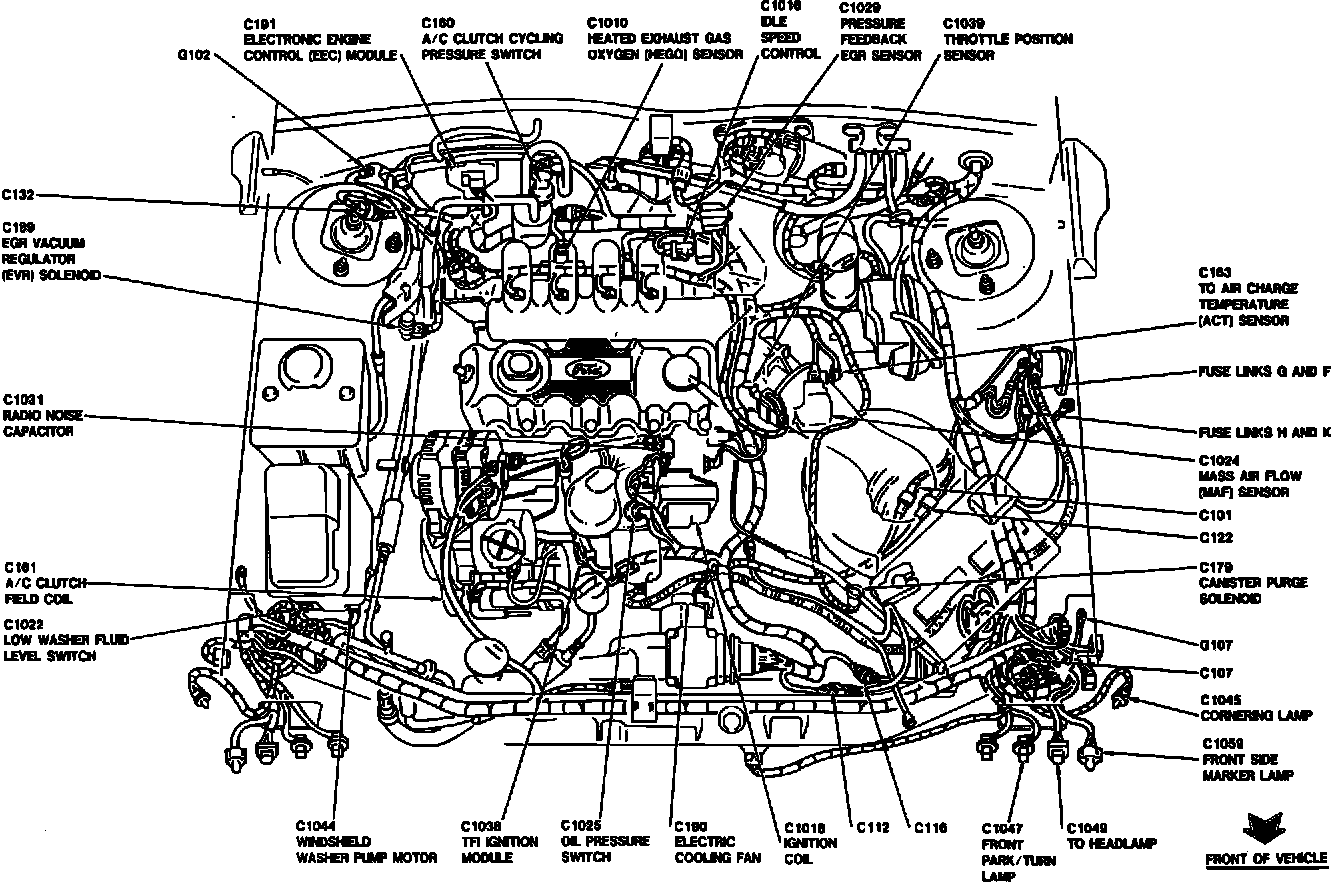

Engine Compartment Component Location.:




LH Front Of Engine Compartment, Near Battery

Applicable to: 2.5L/4-153

Engine Compartment Component Location.:




LH Front Of Engine Compartment, Near Battery

Applicable to: 3.0L/V6-182
