X18 - No Engine Cooling Fan: Check Power Supply to IRCM
X18 - No Engine Cooling Fan: Check Power Supply to IRCM

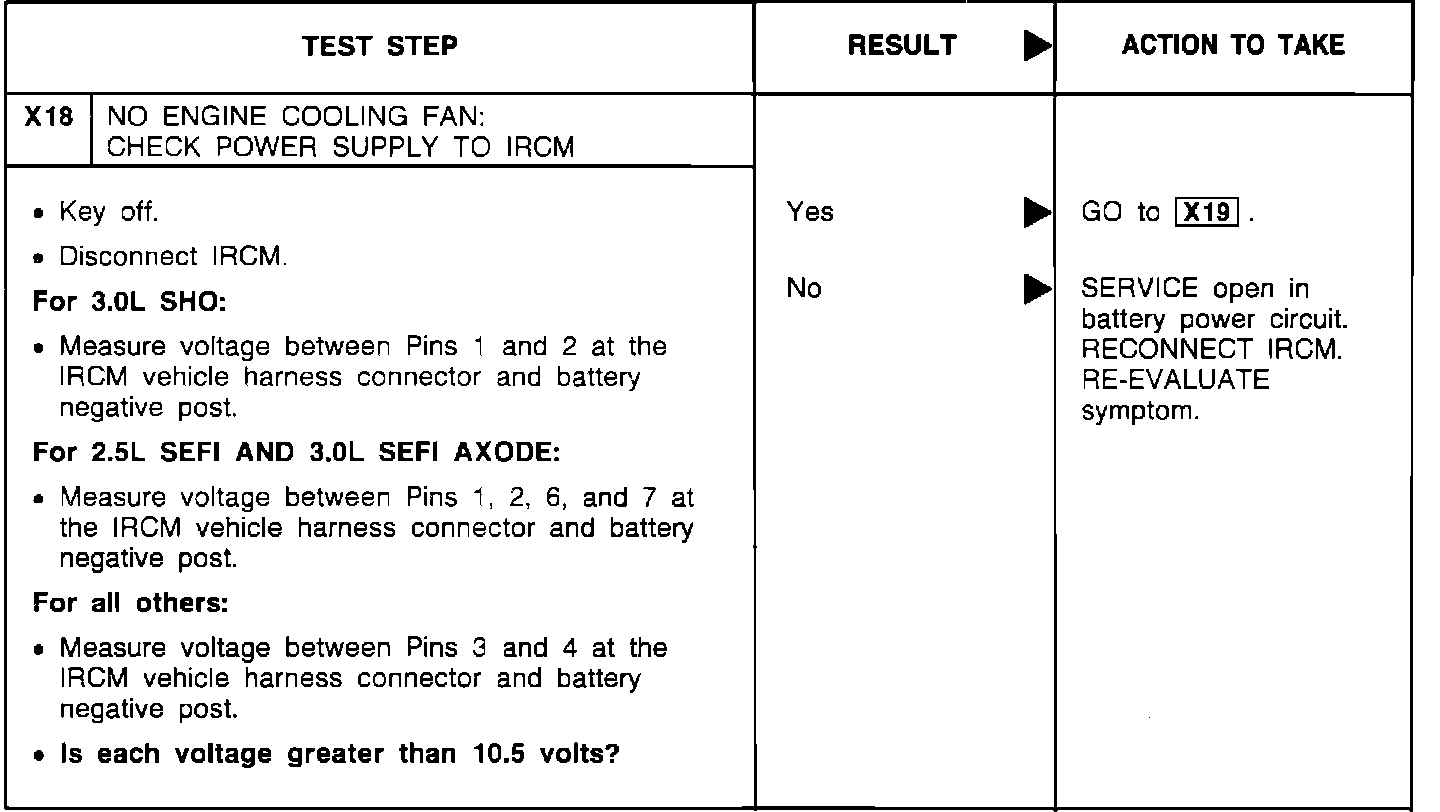

Pinpoint Test X18:
