LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1991
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KF - Electro Drive Fan (EDF)/High Electro Drive Fan (HEDF)
>>
KF3 - Check For EDF/HEDF Circuit Cycling
KF3 - Check For EDF/HEDF Circuit Cycling

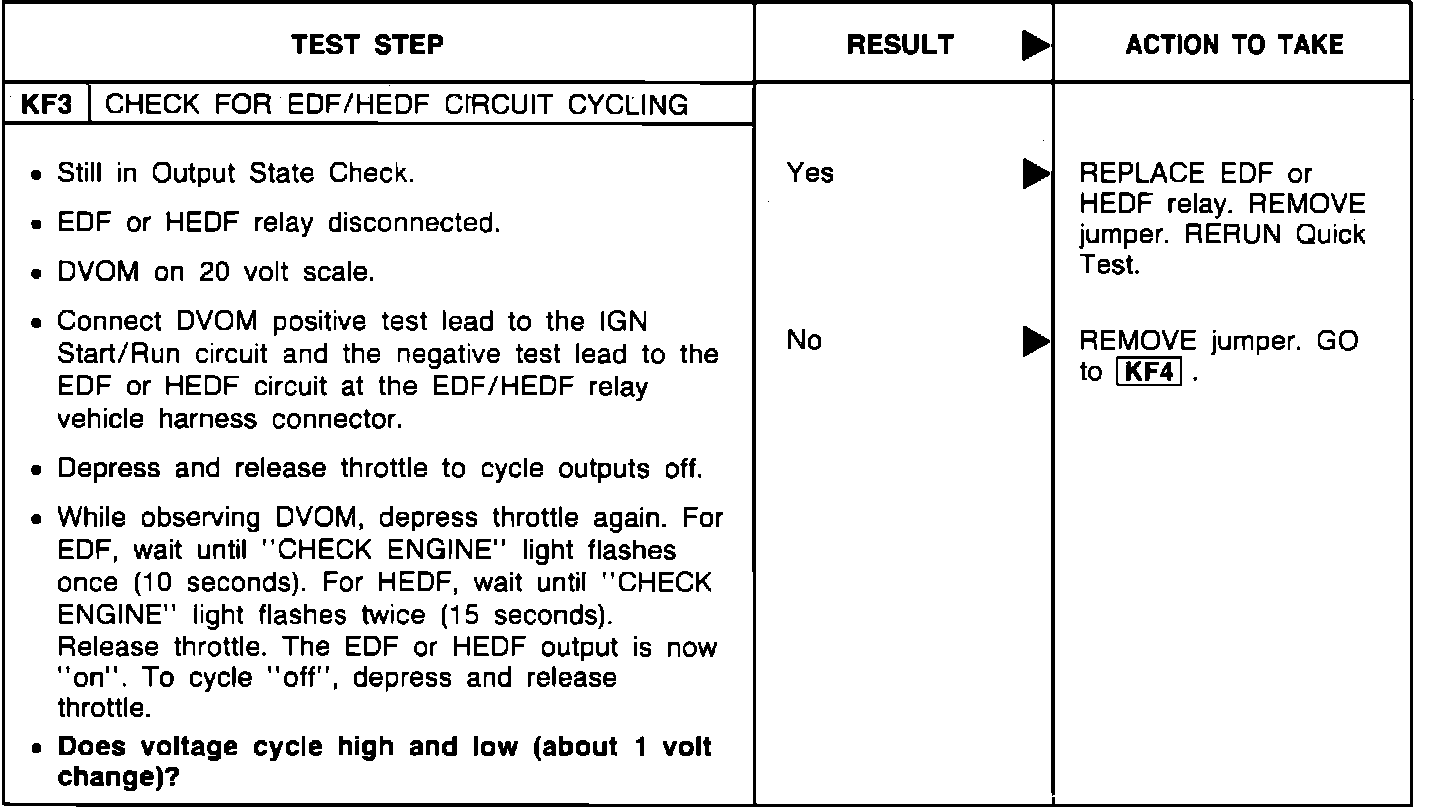

Pinpoint Test KF3:
