KF - Electro Drive Fan (EDF)/High Electro Drive Fan (HEDF)
>>
KF28 - Check EDF Power-to-Fan Circuit For Short to Power
KF28 - Check EDF Power-to-Fan Circuit For Short to Power

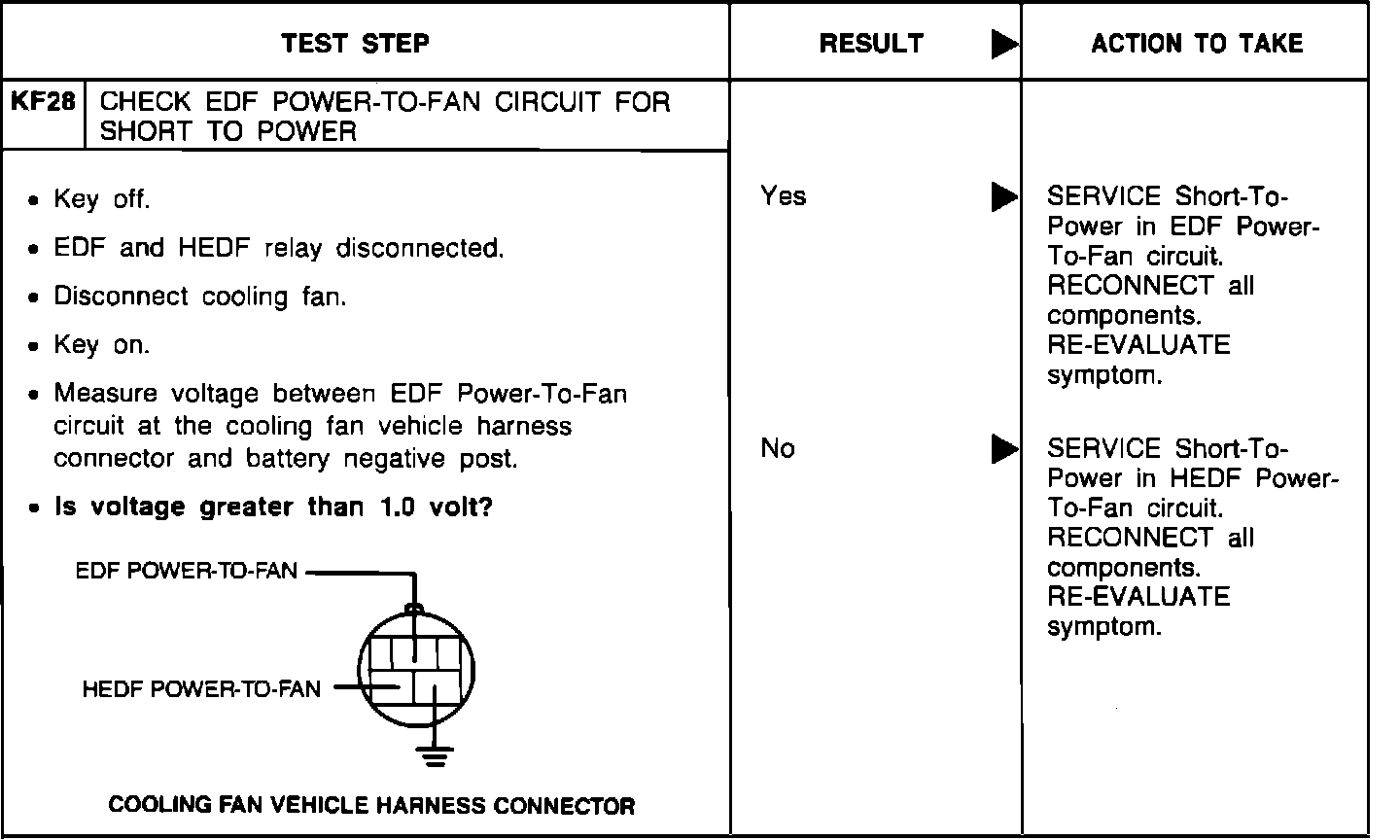

Pinpoint Test KF28:
