Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DH - Throttle Position (TP) Sensor >> DH14 - Check TP Circuit For Short to Ground

DH14 - Check TP Circuit For Short to Ground

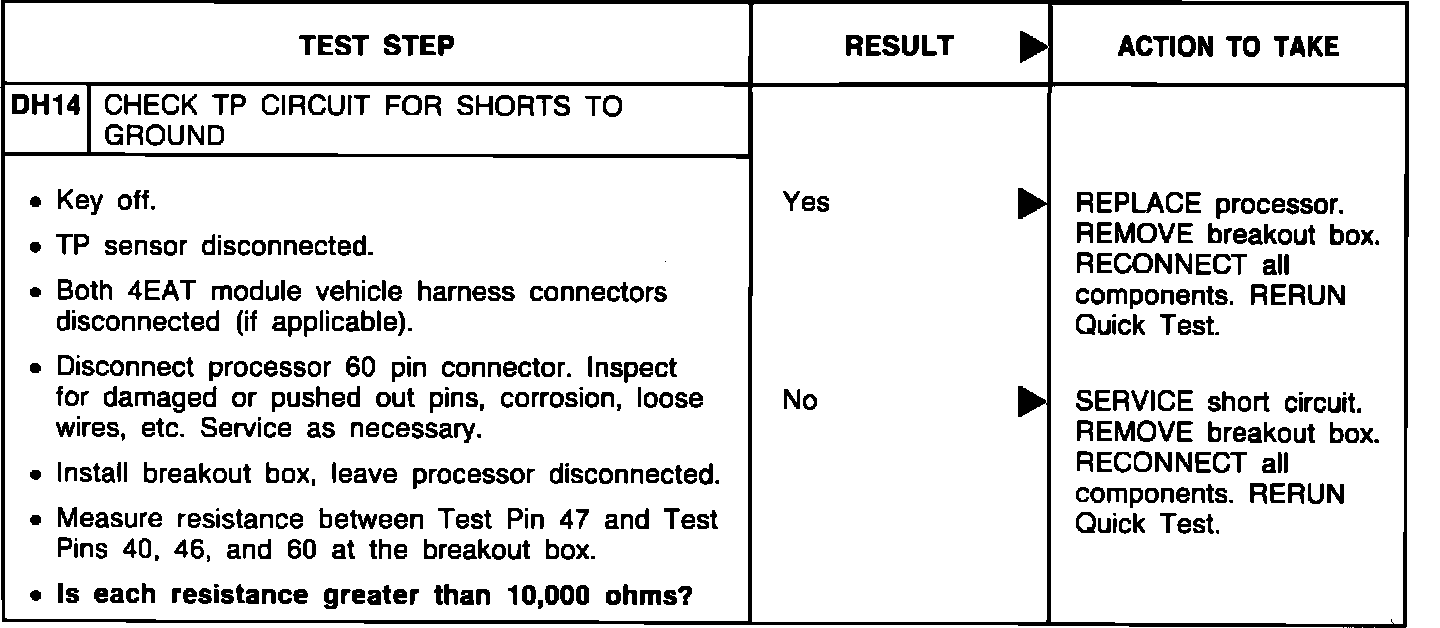

Pinpoint Test DH14:
