Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DG - Knock Sensor >> DG3 - Check Continuity of KS and SIG RTN Circuits

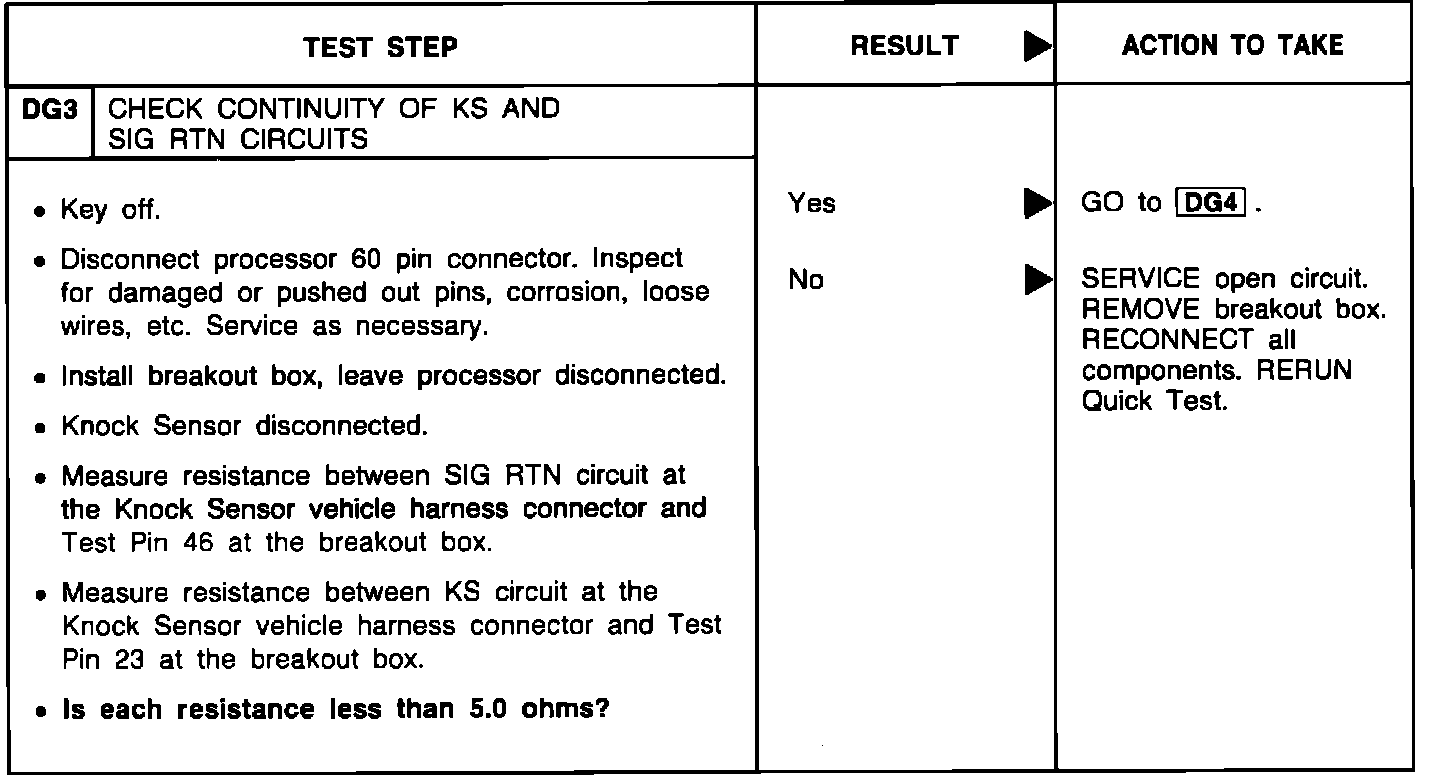

DG3 - Check Continuity of KS and SIG RTN Circuits

Pinpoint Test DG3:
