Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) >> DF91

DF91

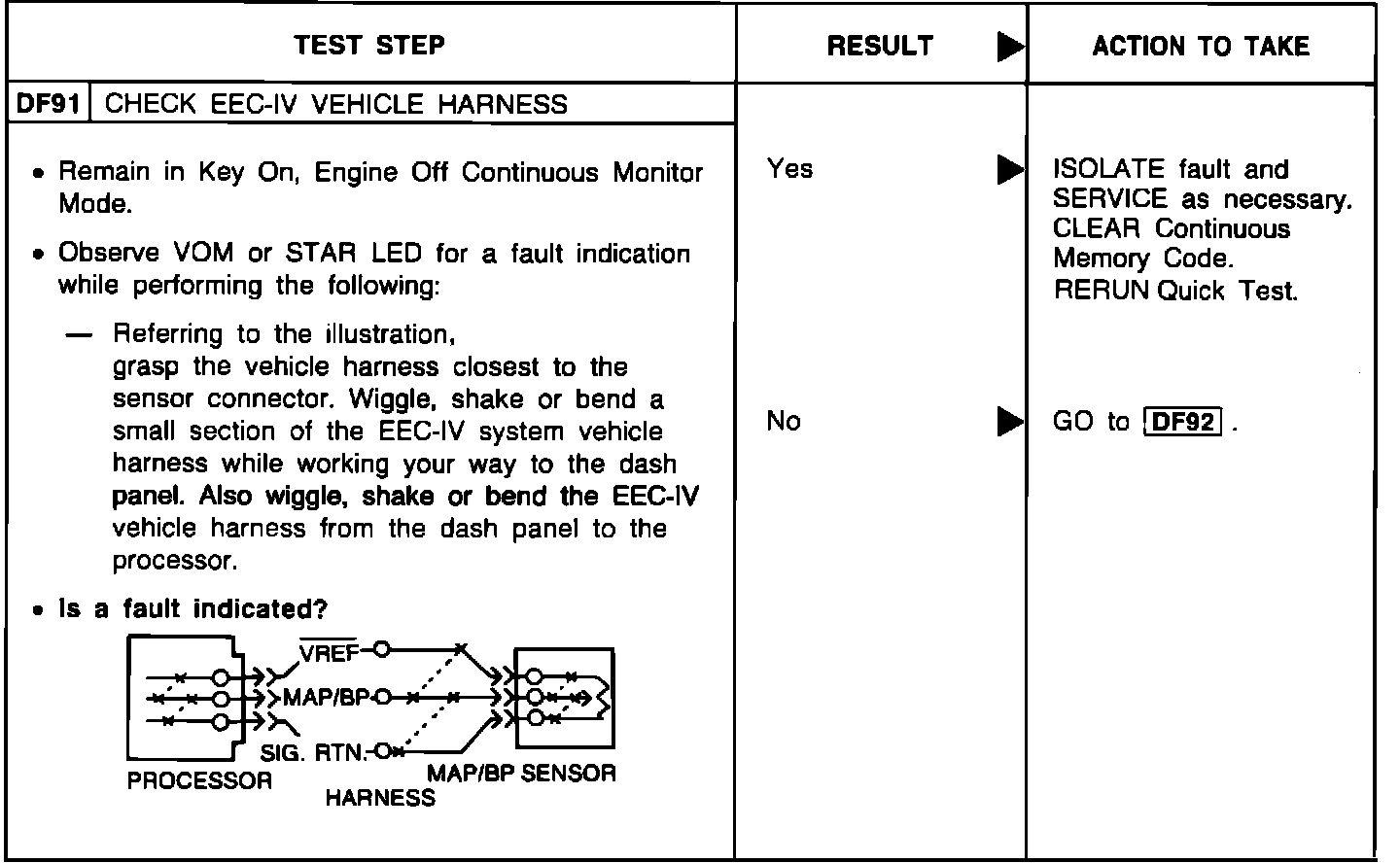

Pinpoint Test DF91:
