Ford
>>
1991
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Lamp Out Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

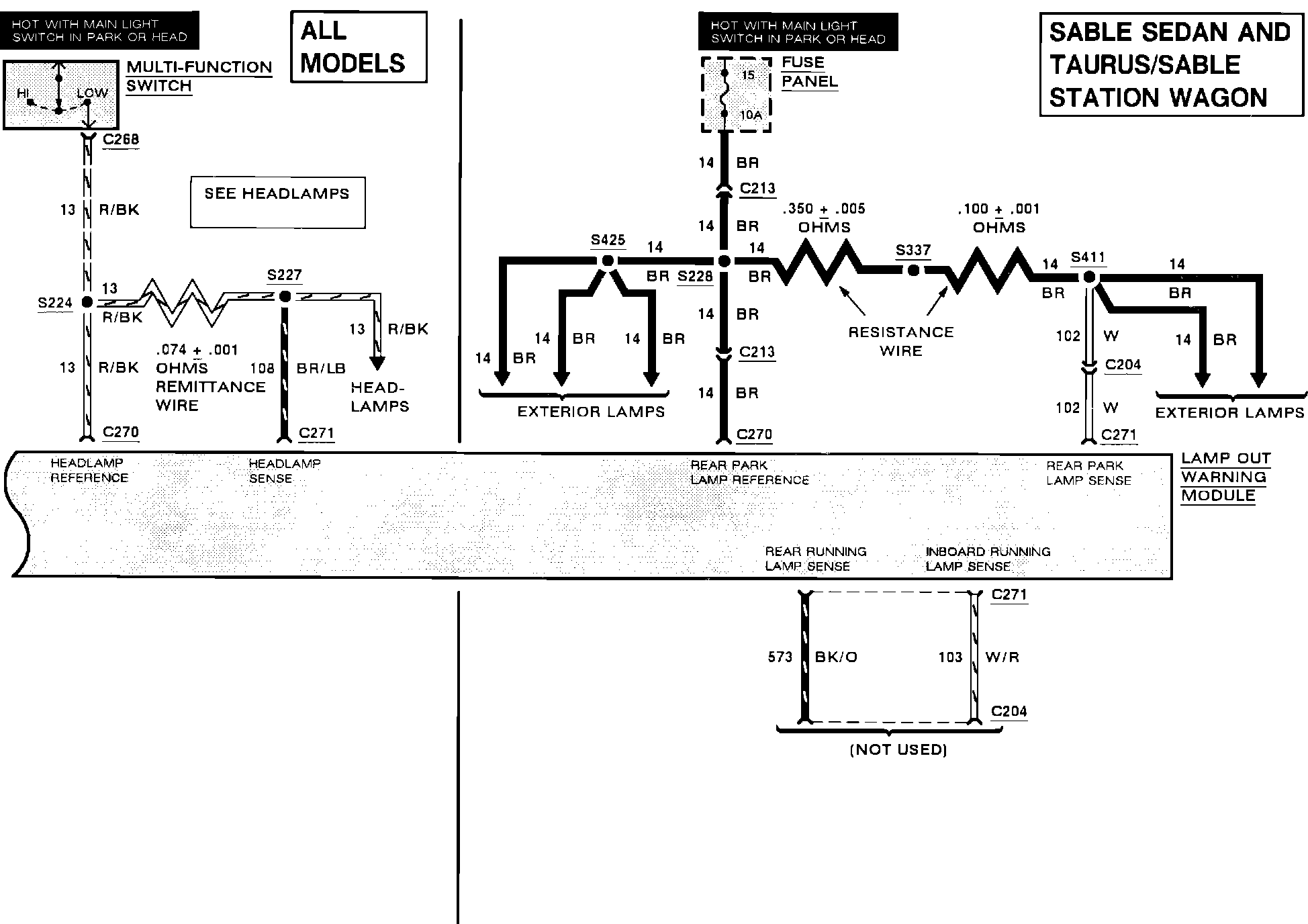

Lamp Out Warning:

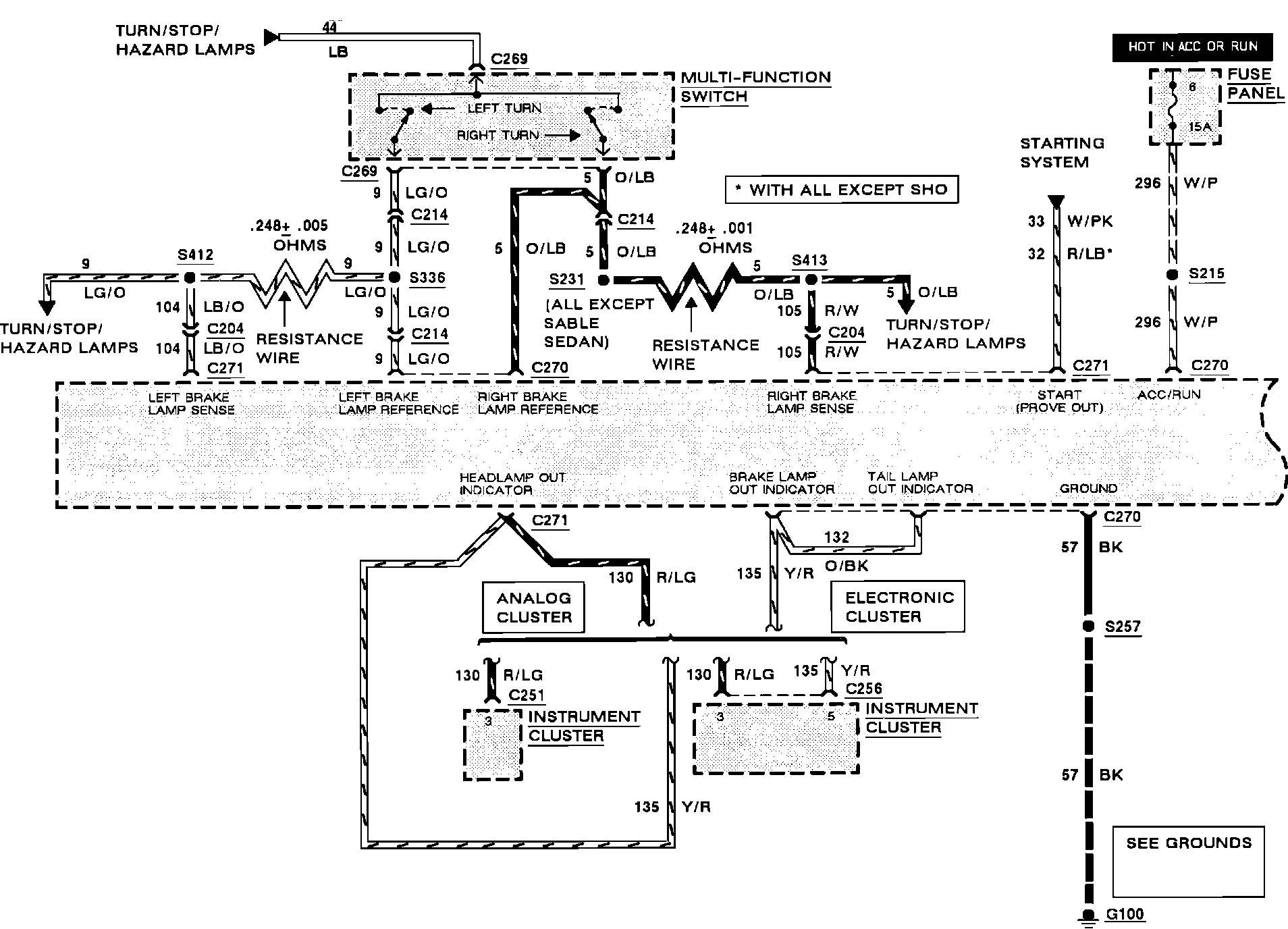

Lamp Out Warning:
