With Analog Instrument Cluster

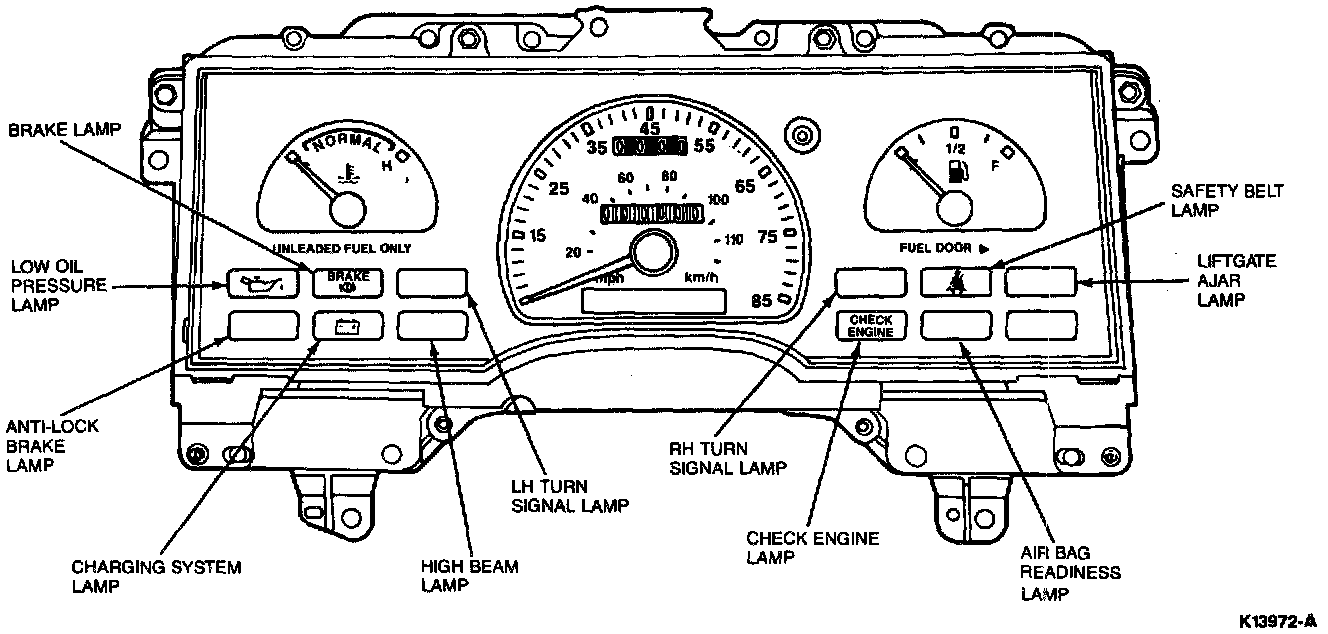

INSTRUMENT CLUSTER






The standard instrument cluster contains a speedometer, a fuel gauge, a temperature gauge, an odometer, and a trip odometer. It also contains high beam, fasten safety belts, brake, charge and oil pressure warning indicators. An optional cluster with diagnostic warning indicators is also available.
