Removal and Installation

REMOVAL AND INSTALLATION

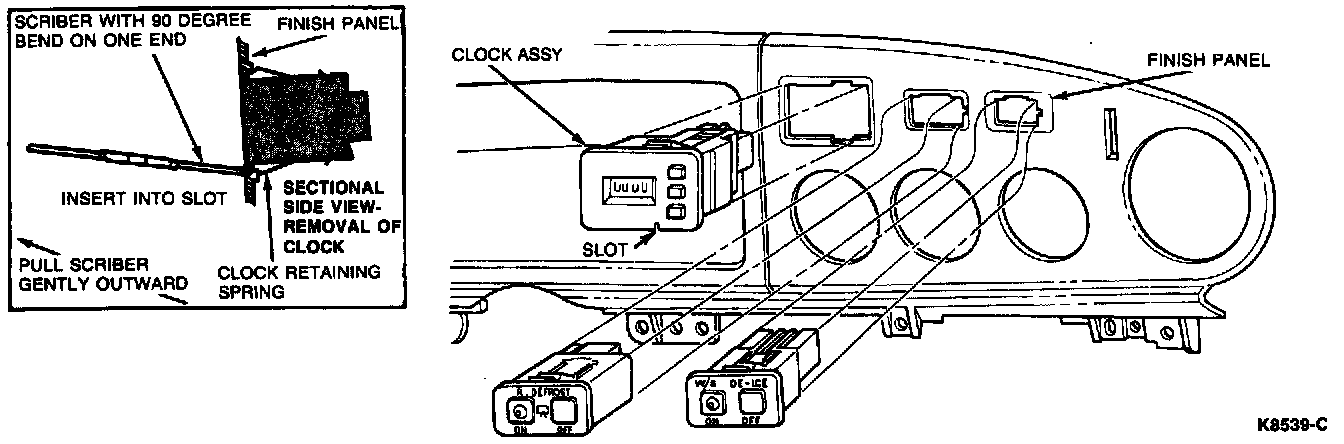

1. Using a 90 degree bent scriber or a similar hardened steel tool, insert the bent end at scriber into slot at bottom center of clock.
2. Gently pull scriber outward until bottom clock retaining spring releases.
3. Grasp clock and pull outward to remove.
4. Disconnect electrical connector.
5. To install, connect electrical connector and snap clock back into proper place.
