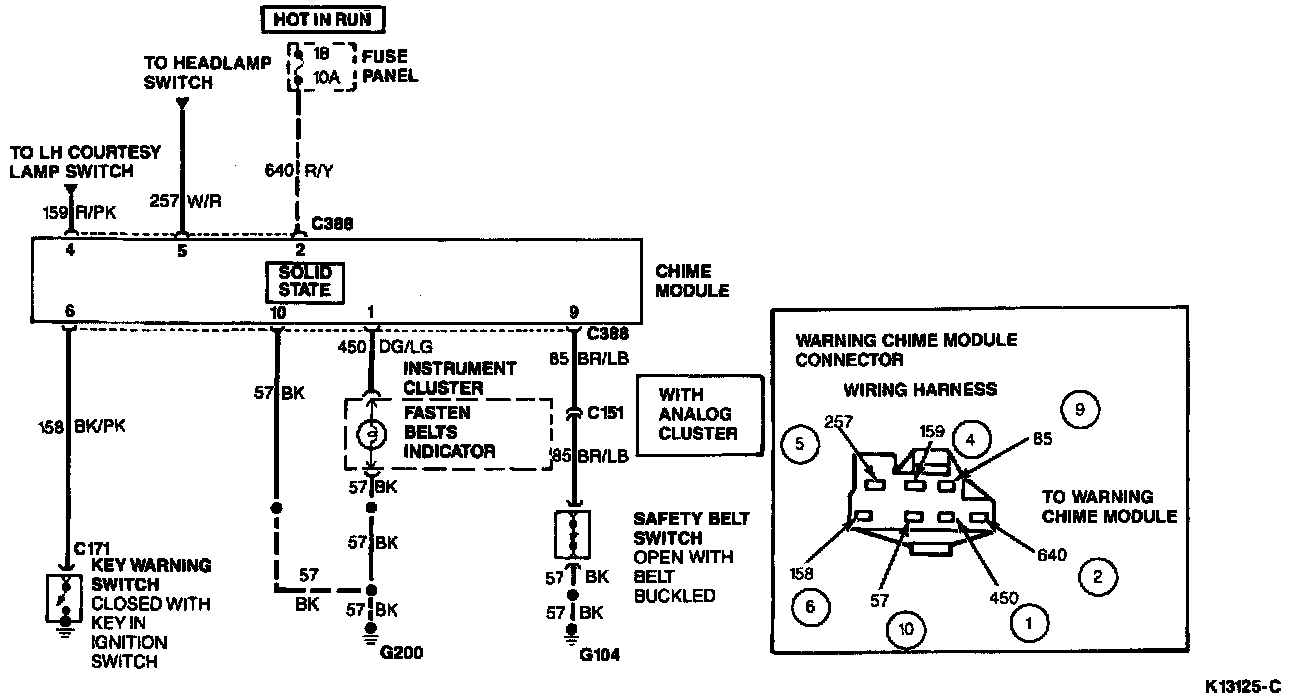

With Analog Cluster

NOTE: Check system fuse before proceeding.

Required Test Equipment
^ Equipment: 12-volt test lamp or ohmmeter
^ When necessary to trace and/or service the various circuits, refer to the vehicle wiring diagrams and Warning Chime Inoperative. Pinpoint Tests
